6.6 CONNECTION TO QUBE XP-D SERVER USING THE SERIAL PORT
The connection of the PAA20+ to a Qube XP-D server can be done using the
serial port.
The PAA20+ must be added to the Qube server as a new device and
output/input commands configured as explained throughout this manual.

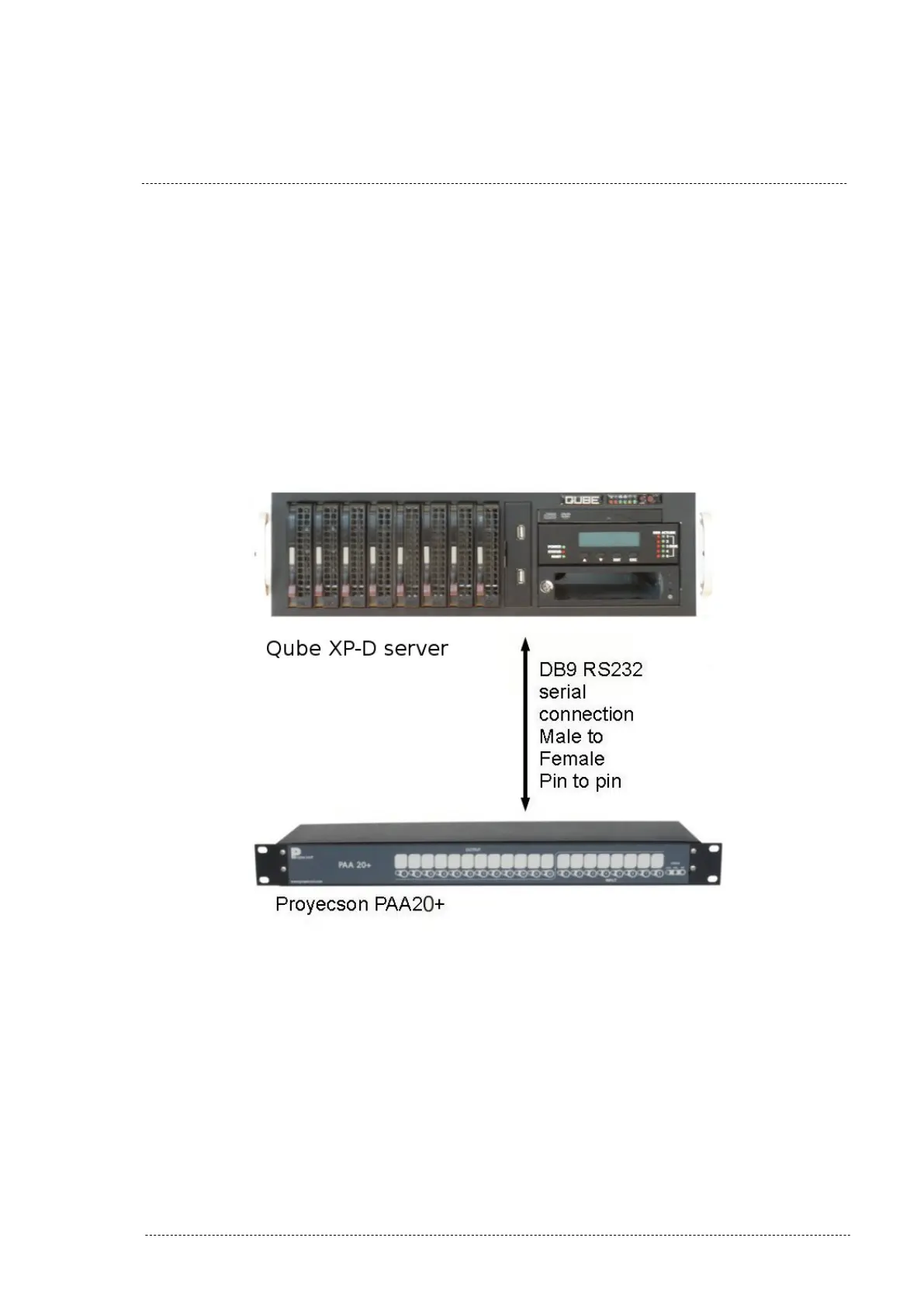

See the interconnection diagram on the following picture:
Figure 6.6A
