8.2.5 Setup the input cues using PAA20+ xml library
Using the XML library method it is possible to the PAA20+ inputs to send
automation messages to the Doremi server. You need the “PAA20+_V1.xml”
file loaded properly in the Doremi server to use this feature, in the 1,2 and 3
steps of the 8.2.4 section of this manual you may see the procedure to load
the file and create the PAA20+ Library.
With this file loaded you can create trigger cues following these steps:

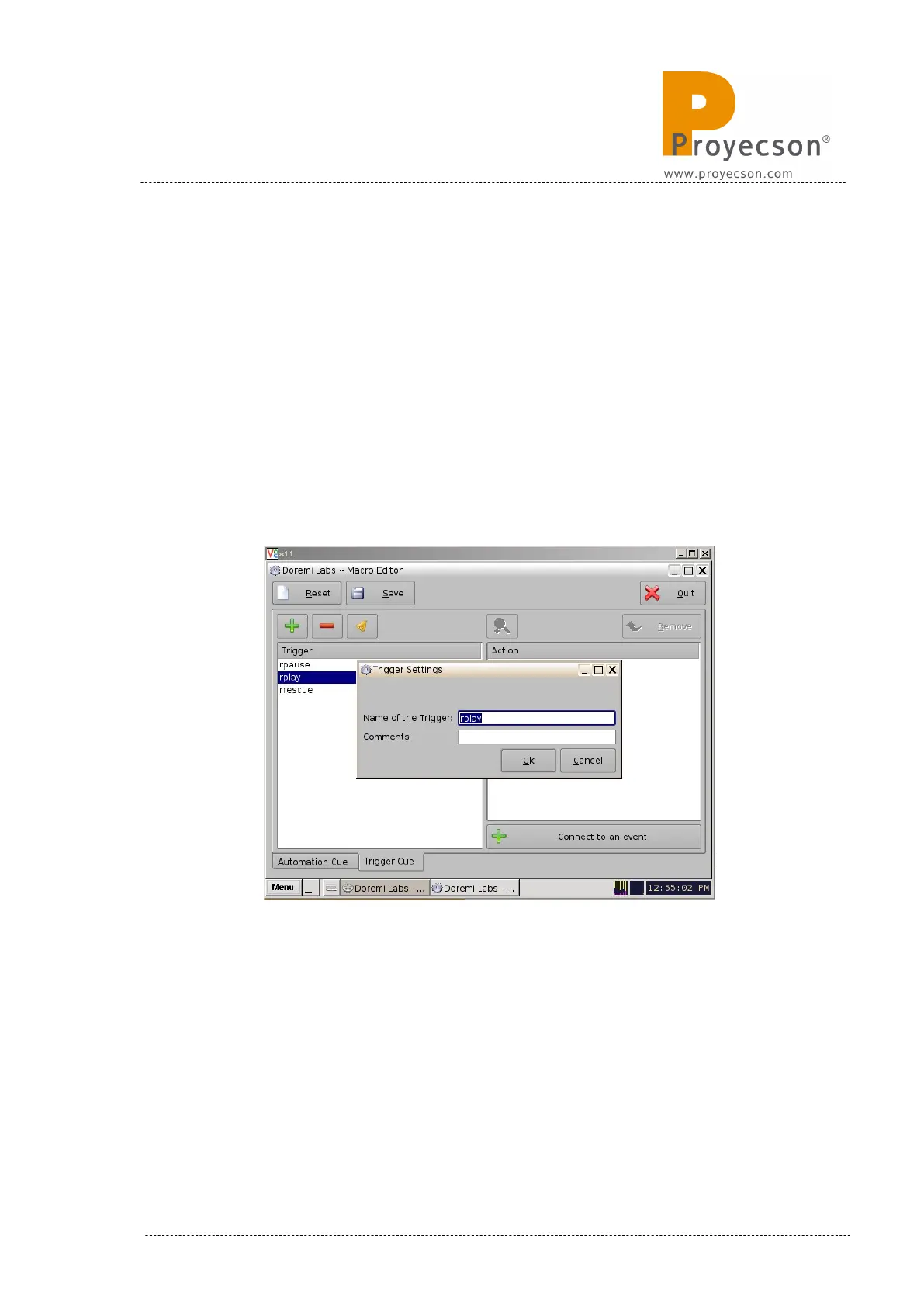

1. Open the Doremi “Macro Editor” application and select “trigger cue”
tab. This window is used to manage the trigger cues. To create a new
cue click on “+” button and in the pop-up window, name it and click on
accept. Example is given in Figure 8.2.5A.
Figure 8.2.5A
2. When the “Events” pop-up window appears, Figure 8.2.5B, select the
“Signal” option.
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 61
