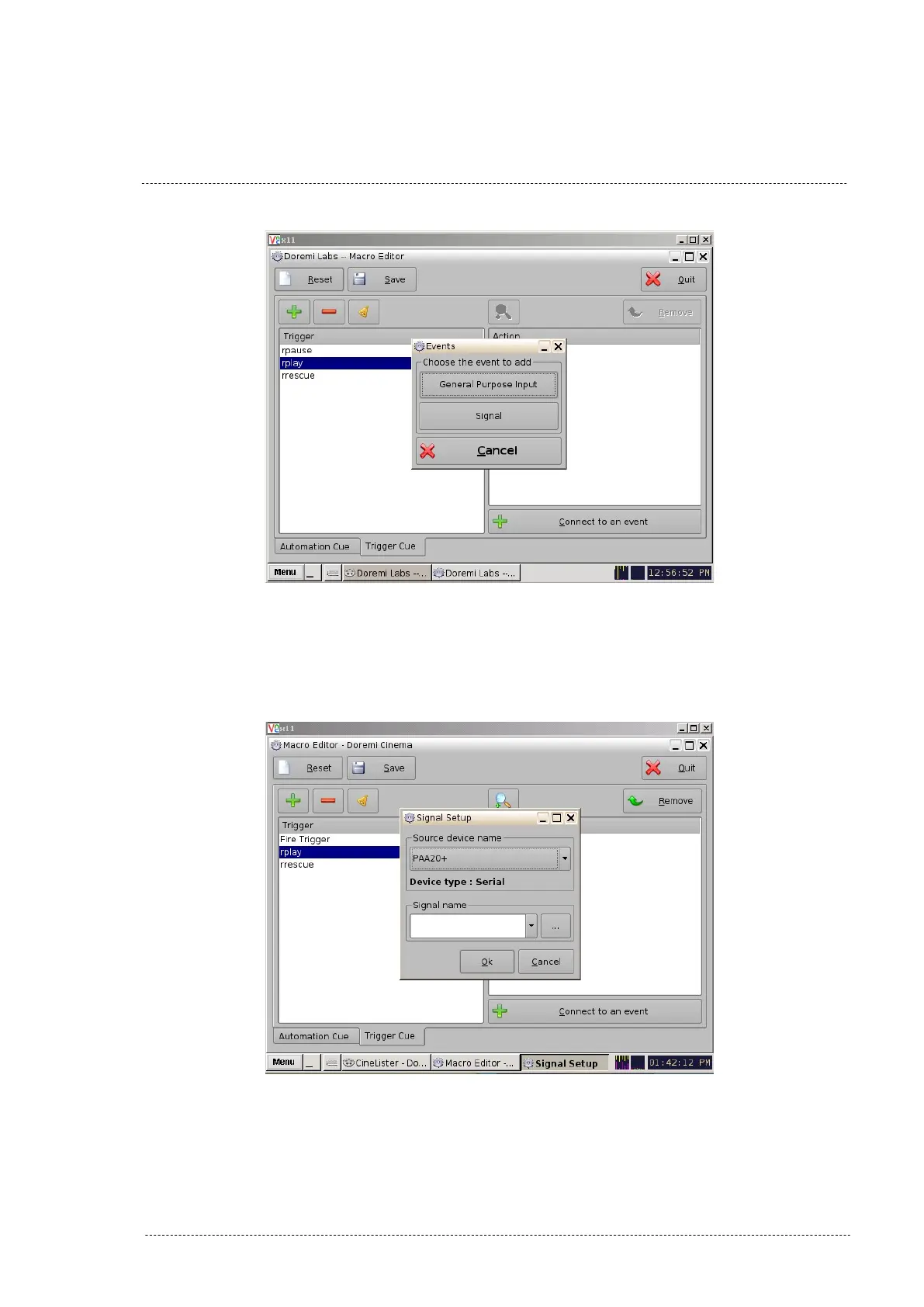

Figure 8.2.5B

3. In the “Signal Setup” pop-up window, select PAA20+ in the “Source

device name” selection tab and press the “…” button in the “Signal

name” field. Figure 8.2.5C.

Figure 8.2.5C

INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 62
