6.2 CONNECTION TO DOREMI DCP SERVERS OVER ETHERNET
The connection of the PAA20+ to any Doremi server can be done through the
Ethernet port.
The PAA20+ must be added to the Doremi server as a new device and
send/receive commands configured as explained throughout this manual.

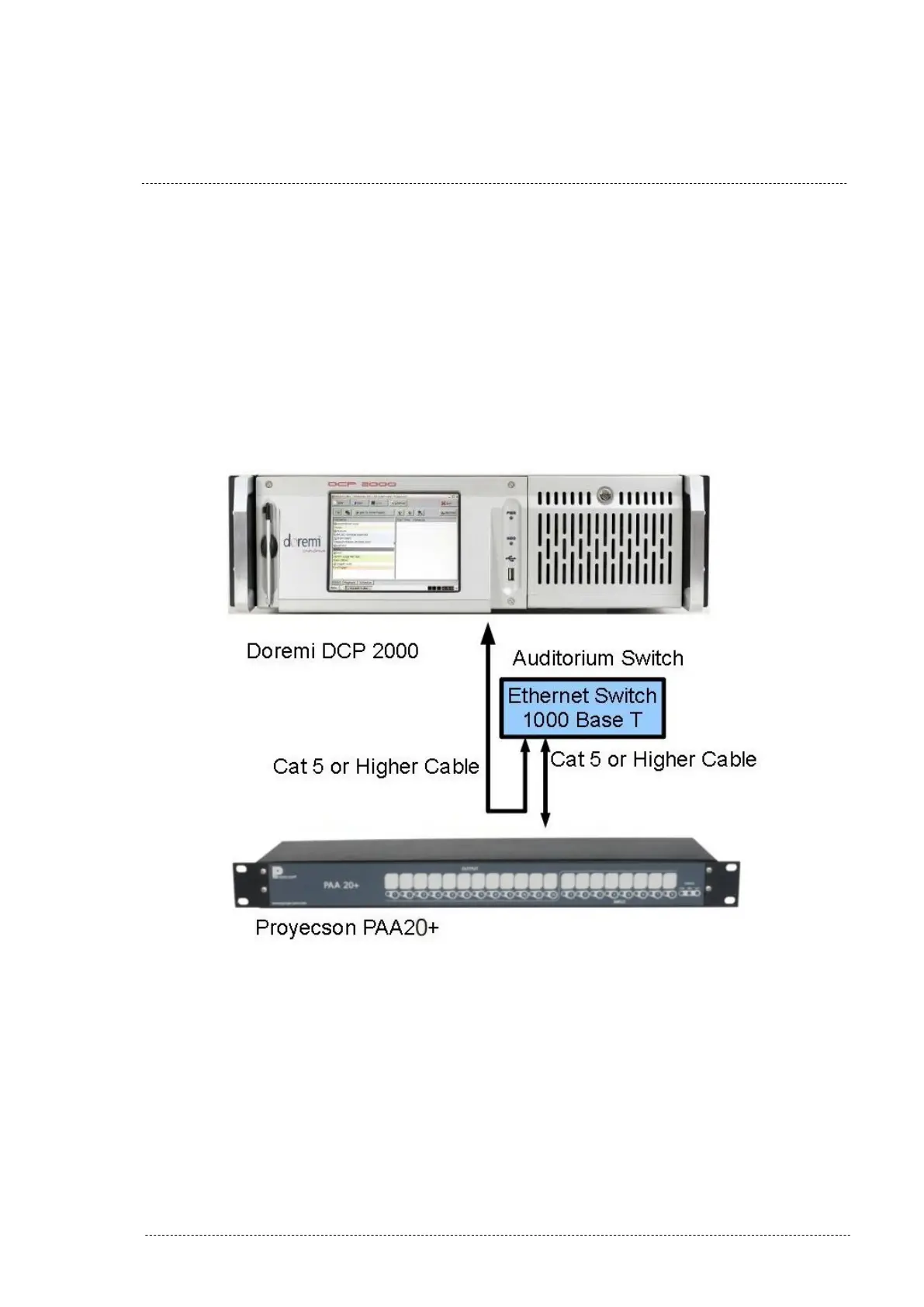

See the interconnection diagram on the following picture:
Figure 6.2C
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 14
