6.5 CONNECTION TO GDC SERVERS USING THE SERIAL PORT
Only SX-2001, SX-2000A and SX-2000AR GDC servers could be connected to
PAA20+ using the serial port.
It is not possible to connect the SX-3000 server with the PAA20+ using the
serial port.
The PAA20+ must be added to the GDC server as a new device and
output/input commands configured as explained throughout this manual.

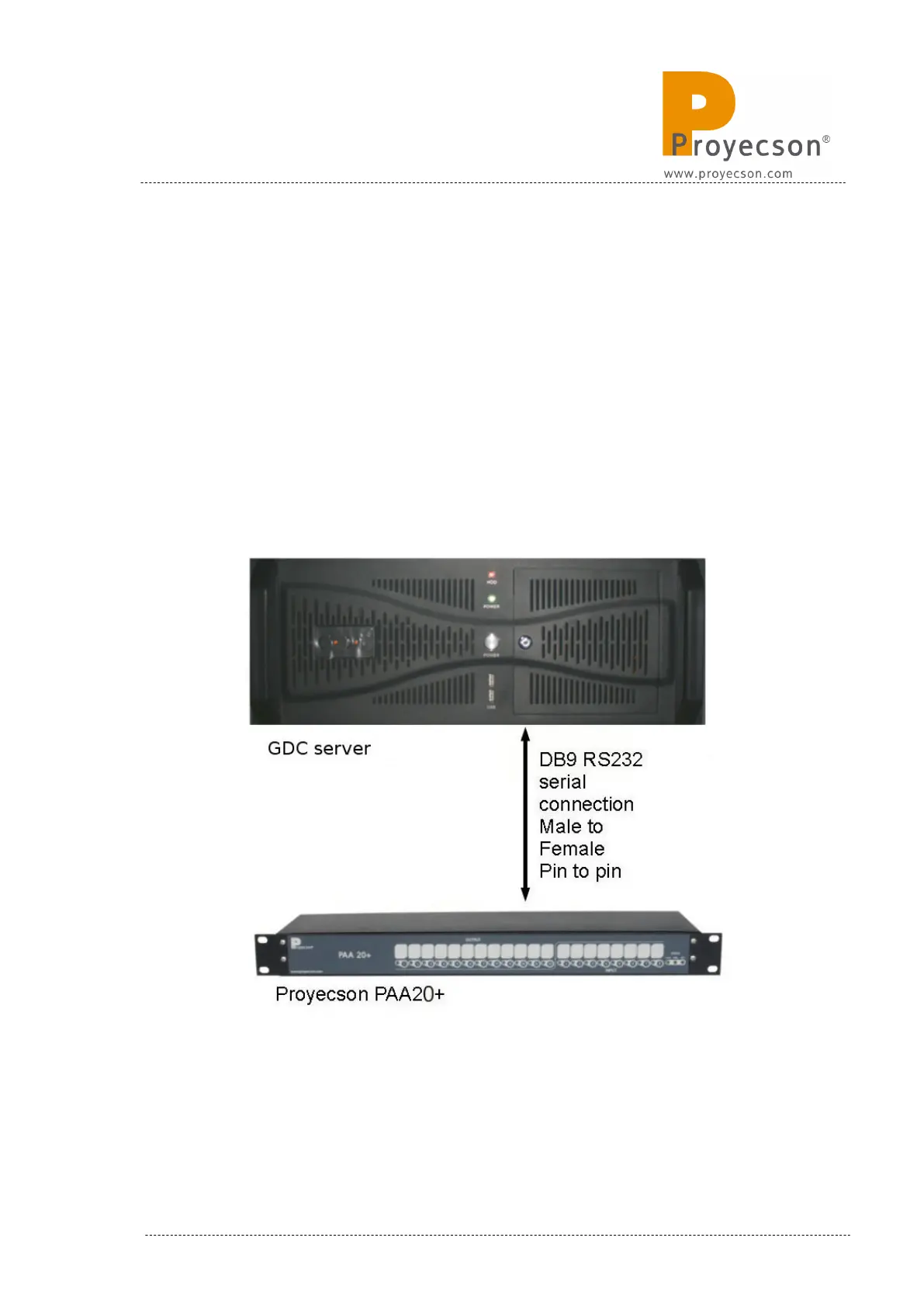

See the interconnection diagram on the following picture:
Figure 6.5A
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 17
