MP3-PL Therapy Beam Analyzer T41050
Operating Manual – The Components of the MP3-PL System
1.1 Perspex Tank
The moving mechanism as well as several ancillary
devices (refer to section 2) are attached to the Per-
spex tank. The tank (Figure 4) is filled with water. The
water level should remain approx. 20 mm below the
top edge of the tank. Horizontal and vertical lines on
the tank allow it to be easily leveled. As an alternative,
you can use the circular bubble level that is part of the
MP3-PL accessories.
Additional marks at the bottom and on the walls of the
tank allow it to be aligned, using the accelerator laser
system.
The Perspex plates are glued together. On the inside
of the tank, a special sealing agent protects the glue
from penetrating water.

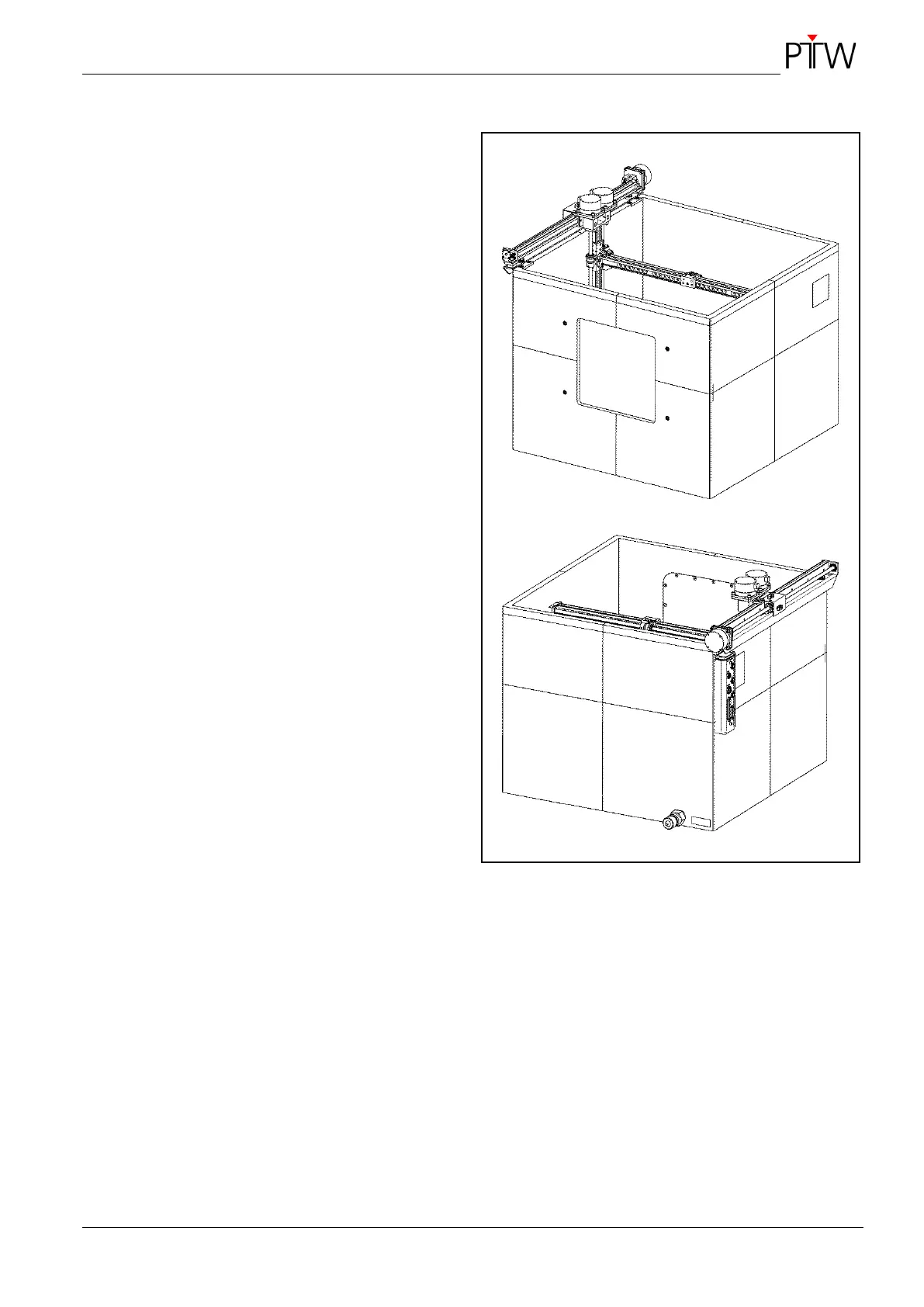

Figure 4: MP3-PL Perspex tank with junction box
and moving mechanism (top: front view;
below: rear view)
