MP3-PL Therapy Beam Analyzer T41050
Operating Manual – Installation of the System for Measurement
40
D850.131.05/01 en
3.7 Mounting the Wedge
T41029.1.220

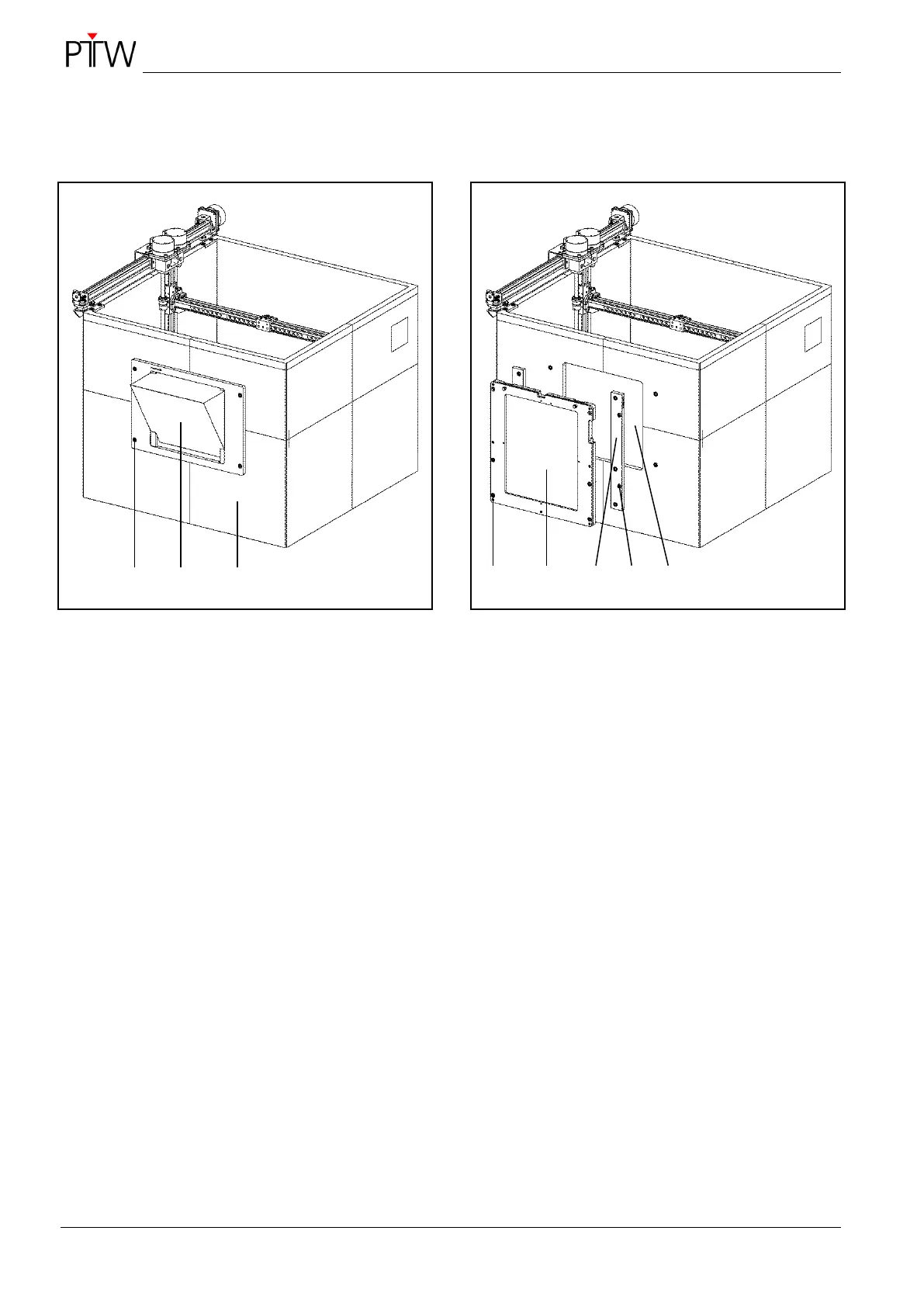

Figure 25: Mounting the wedge T41029.1.220
1 Screw M6x16 (4x)
2 Wedge T41029.1.220 with holder
3 Perspex tank
 Mount the wedge T41029.1.220 with the holder
(2) on the outside of the Perspex tank (3) in front
of the entrance window using the four M6x16
screws (1).
3.8 Mounting the Film Holding
Device T40040
Figure 26: Mounting the film holding device
T40040
1 Screw M6x20 (4x)
2 Film holding device T40040
3 Strip T41029.1.271 (2x)
4 Screw M6x16 (4x)
5 Entrance window of the Perspex tank
 Unscrew the six M6x20 screws and remove the
mounting angle (for vertical mounting) and the
holder from the film holding device according to
the film holding device user manual.
You will need four M6x20 screws for mounting
the film holding device on the Perspex tank.
 Mount the two strips T41029.1.271 (3) on the
outside of the Perspex tank besides the en-
trance window (5) using the four M6x16 screws
(4).
 Mount the film holding device T40040 (2) on the
two strips T41029.1.271 (3) using the four
M6x20 screws (1).
3
2
1
1
2
3
4
5
