MP3-PL Therapy Beam Analyzer T41050
Operating Manual – The Components of the MP3-PL System
1.3 Positioning Device
The positioning device allows the Perspex tank to
be aligned, using the laser system of the accelera-
tor and the lines on the walls of the tank.
The positioning device has three adjustable legs
that allow the height to be adjusted by ± 10 mm.
Additionally, the three adjusting screws allow the
tank to be adjusted horizontally by ± 10 mm, or by
approx. 1° on a vertical axis (micro-adjustment). A
mechanism allows the tank to be rotated by
45°or 90° (refer to Figure 6 for center of rotation).
Horizontal alignment of the tank is easy when it is
filled to the horizontal lines and the water surface is
used as a level.

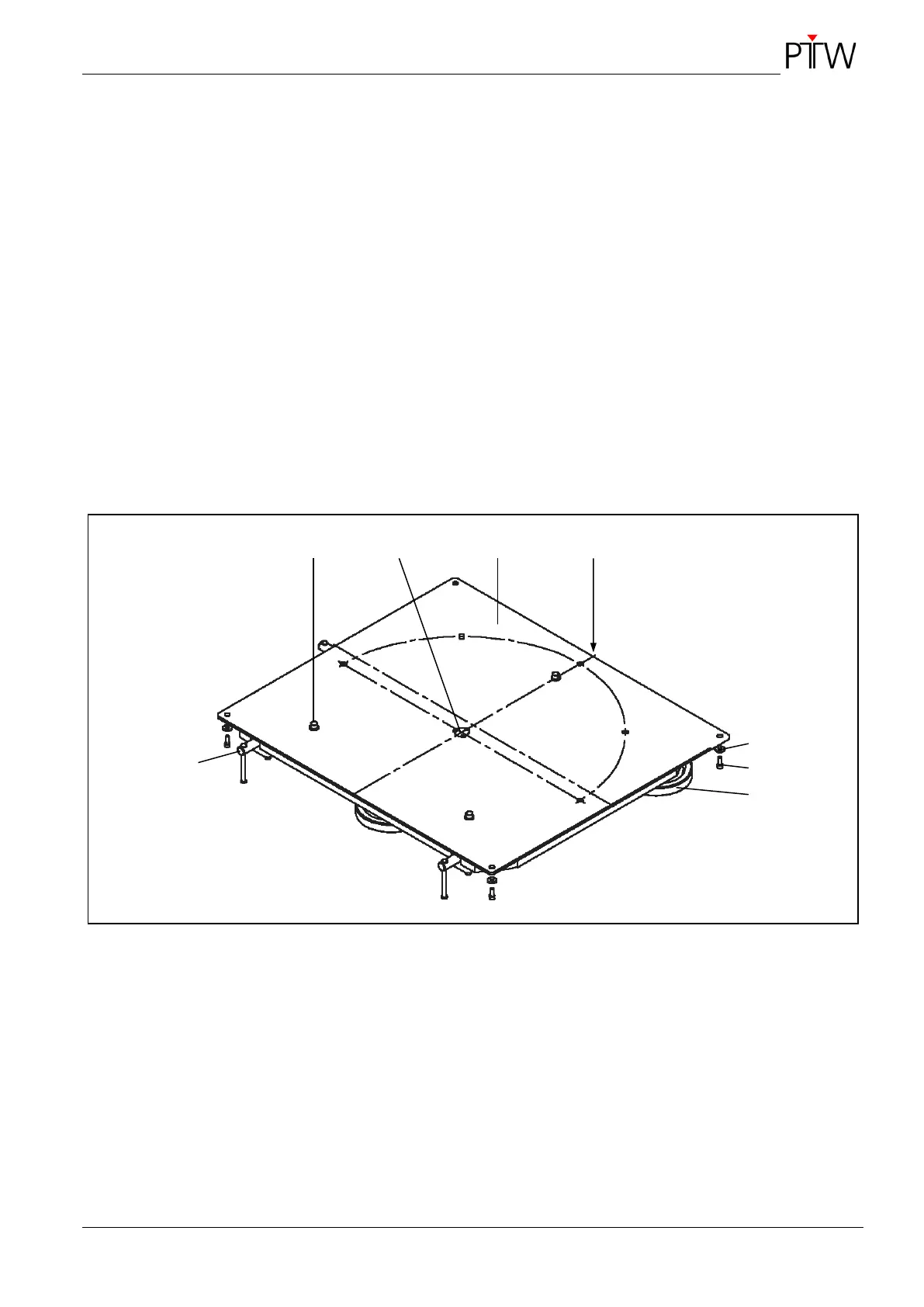

Figure 6: Positioning device for tank alignment
1 Transportation lock
2 Center of rotation
3 Plate
4 Locking device
5 Adjusting screw (3x)
6 Washer 6.4 (4x)
7 Screw M6x16 (4x)
8 Adjustable leg (3x)
