MP3-PL Therapy Beam Analyzer T41050
Operating Manual – Installation of the System for Measurement
30
D850.131.05/01 en
3.2.2 Linear Detector Holder with 24 PinPoint
Chambers Type 31015
 Place the holder T21004.1.003 on a flat base.
Alternatively you can mount the holder
T21004.1.003 on the robot’s table top using the
two M6x30 screws and the washers.
 Mount the linear detector holder T21004.1.002
on the holder using the two M4x16 screws ac-
cording to Figure 14.
 Loosen the 24 M4x8 screws.
 Insert the 24 PinPoint chambers as shown in
Figure 14 as far as they will go, and secure each
chamber with a M4x8 screw.
 Loosen the two M4x16 screws and take out the
linear detector holder with the PinPoint cham-
bers.

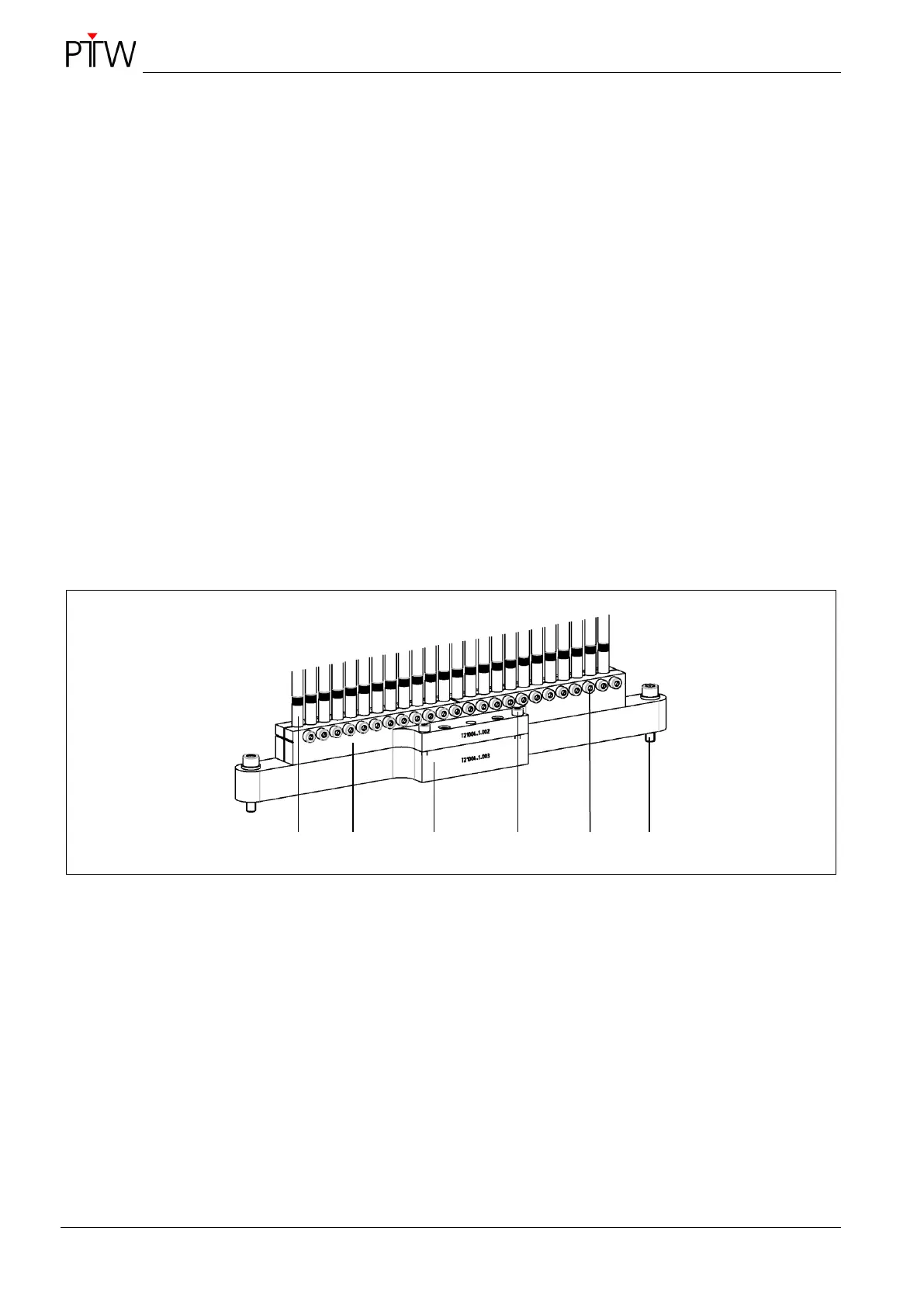

Figure 14: Inserting the 24 PinPoint chambers into the linear detector holder
1 PinPoint chamber (24x)
2 Linear detector holder T21004.1.002
3 Holder T21004.1.003
4 Screw M4x16 (2x)
5 Screw M4x8 (24x)
6 Screw M6x30 and washer (2x)
3
6
2
4
5
1
