MP3-PL Therapy Beam Analyzer T41050
Operating Manual – Assembly of the System
24
D850.131.05/01 en
 Check that the two bevel gear wheels engage
properly in the centering shoulder and adjust, if
necessary, by turning the threaded control shaft
of the C-axis.
 Mount the C-axis on the B-slider (6), using four
M4x10 screws (9).
 Plug the three connectors of the motor cables A,
B and C into the corresponding sockets at the
junction box.

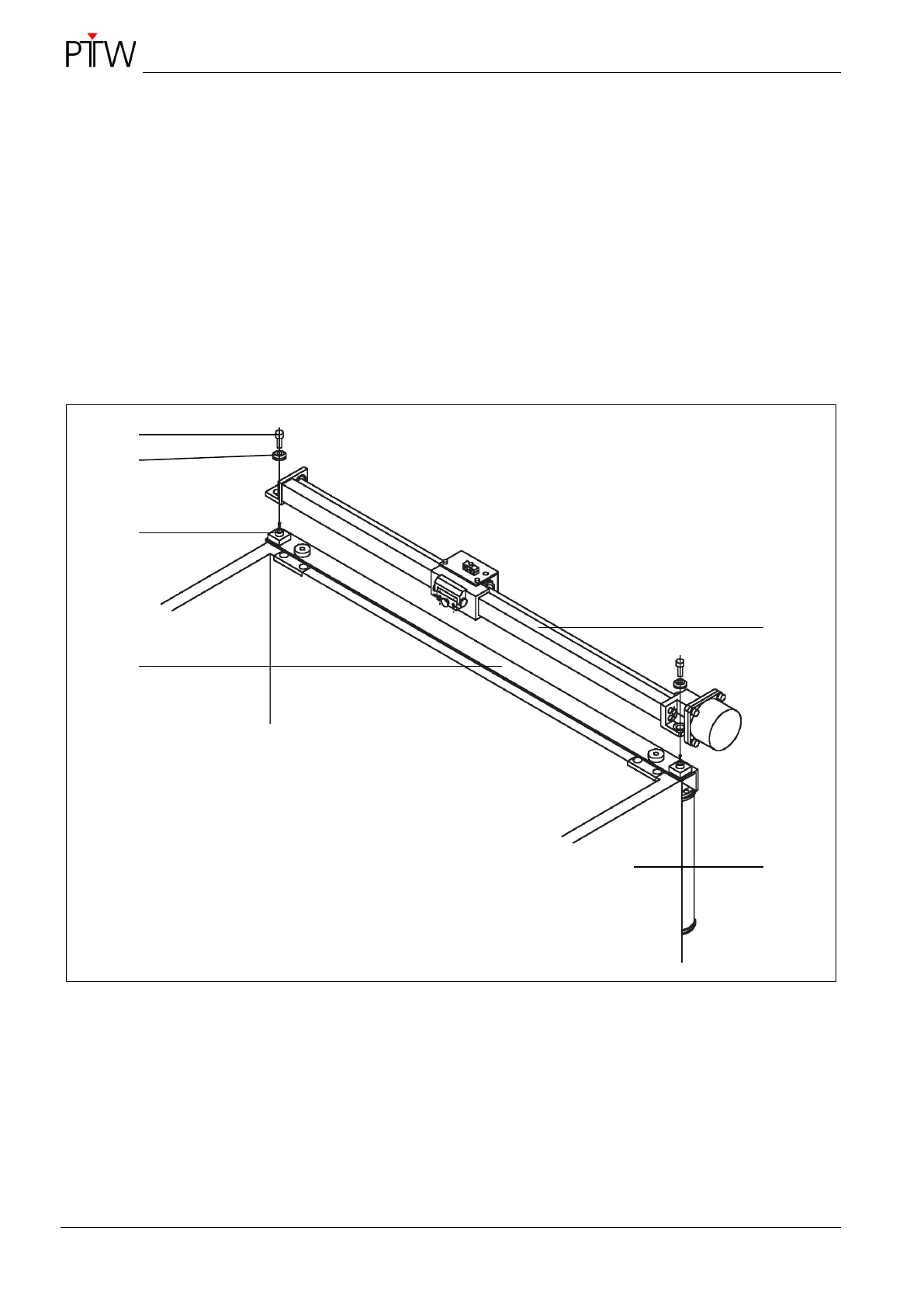

Figure 8: Mounting the A-axis
1 Screw M6x16 (2x)
2 Washer (2x)
3 Support (2x)
4 Angle
5 A-axis
6 Perspex tank
1
6
2
4
3
5
