MP3-PL Therapy Beam Analyzer T41050
Operating Manual – Installation of the System for Measurement

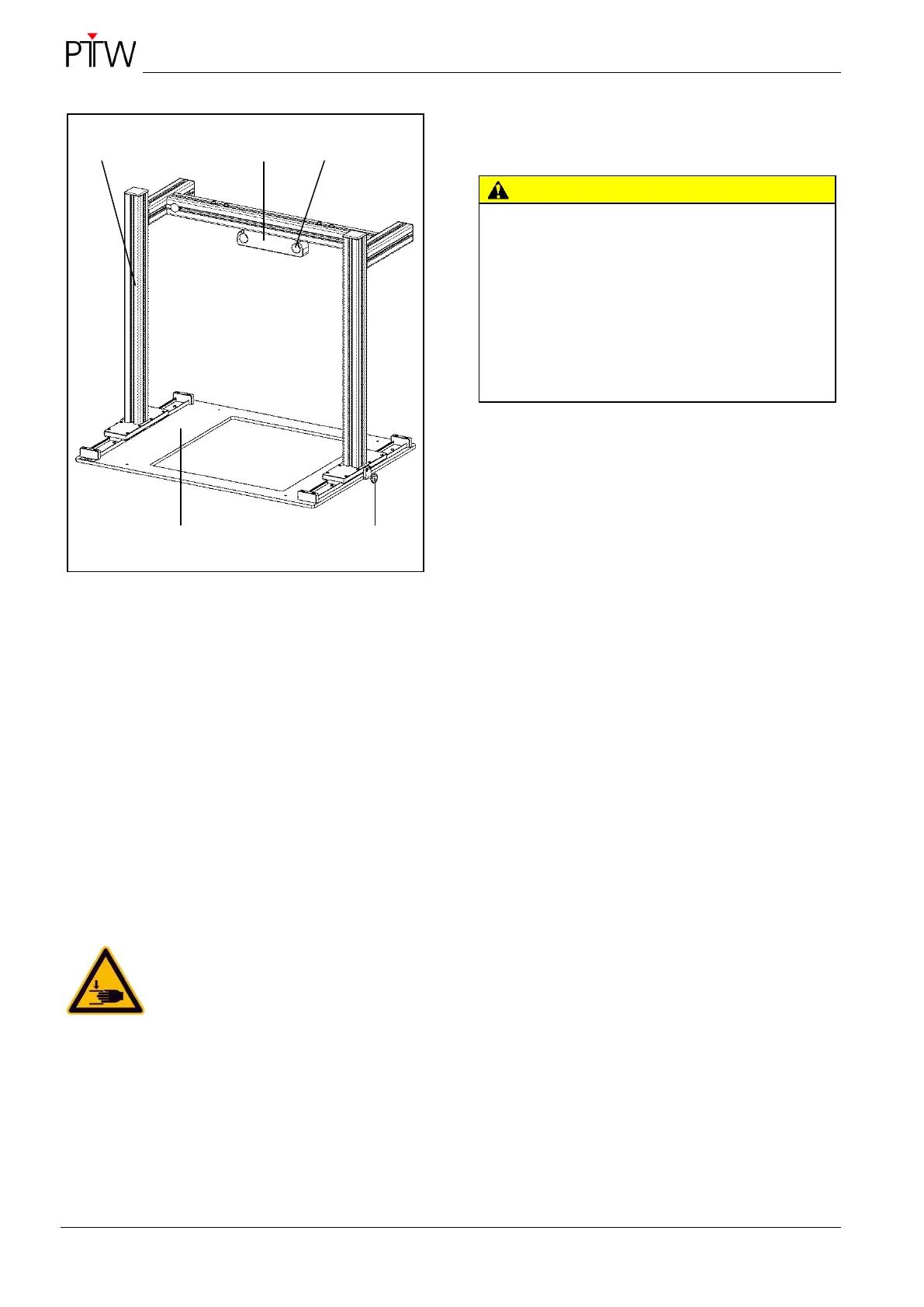

Figure 20: Chamber cable holding device
T20015.1.200
1 Bracket of the chamber cable holding device
2 Holder for chamber cables
3 Opening for chamber cables of twelve PinPoint
chambers
4 Base plate of the chamber cable holding device
5 Clamping screw
The following safety warning label is attached to the
chamber cable holding device. It warns of a general
risk of crushing, which is present in the overall sys-
tem:
Caution!
Failure to observe the safety warn-
ing label will lead to crush injuries
of the hands and fingers.
Positioning of the Chamber Cable Holding De-
vice for Measurements:
Improper handling.
Risk of injury!
The chamber cable holding device is very heavy
(several kilograms).
Push the chamber cable holding device carefully
to its final position. Otherwise, there is a risk of
suffering crush injuries at the hands and fingers
at the end of the rails.
1. Horizontal Beam
In case of measurements with horizontal beam
you should center the bracket of the chamber
cable holding device on the base plate. Secure
the bracket with the clamping screw (refer to
Figure 20).
2. Vertical Beam
In case of measurements with vertical beam you
have to move the bracket up to the rearmost po-
sition, i.e. water connection side, depending on
the field size.
Depending on the field geometry to measure you
have to pay attention that the bracket can be
dragged along, i.e. the clamping screw must not be
fastened. Furthermore you have to pay attention
that the chamber cables will not cover the measur-
ing plane in any position.
Check this by moving to all measuring field limi-
tations by means of the TBA CONTROL
PENDANT.
