PTW MP3-PL - Figure 16: Horizontal Mounting of the Linear Detector Holder with 24 Pinpoint Chambers

MP3-PL Therapy Beam Analyzer T41050
Operating Manual – Installation of the System for Measurement
32
D850.131.05/01 en
Horizontal mounting refer to Figure 16
 Mount the linear detector holder with the Pin-
Point chambers on the holder T21004.1.004 us-
ing the two M4x20 screws (4, Figure 16).
 Mount the holder T21004.1.004 with the linear
detector holder on the C-slider with the two
M4x16 screws (2, Figure 16).

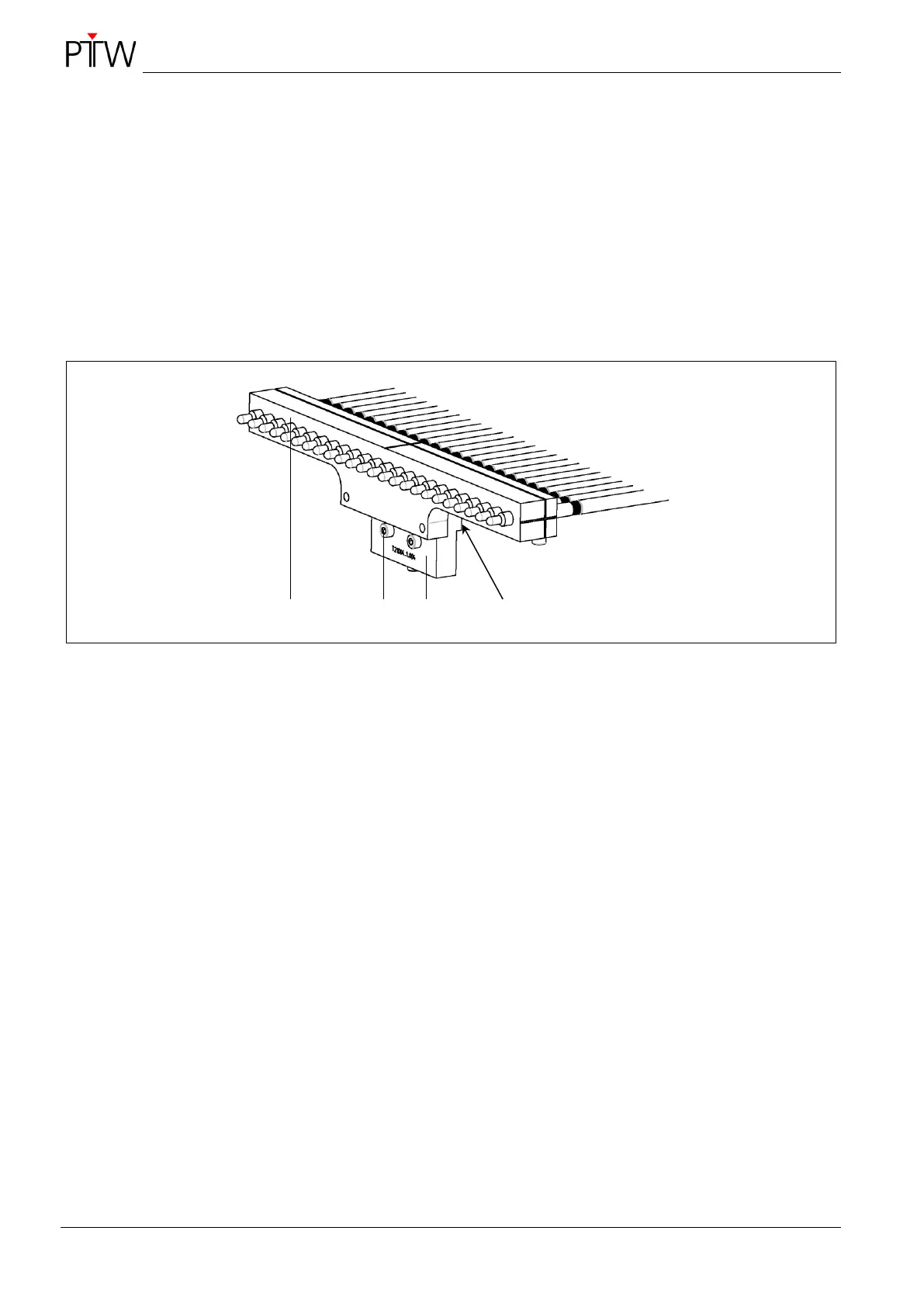

Figure 16: Horizontal mounting of the linear detector holder with 24 PinPoint chambers
1 Linear detector holder T21003.1.001
2 Screw M4x16 (2x)
3 Holder T21004.1.004
4 Screw M4x20 (2x)
3
2
1
4
