Echo

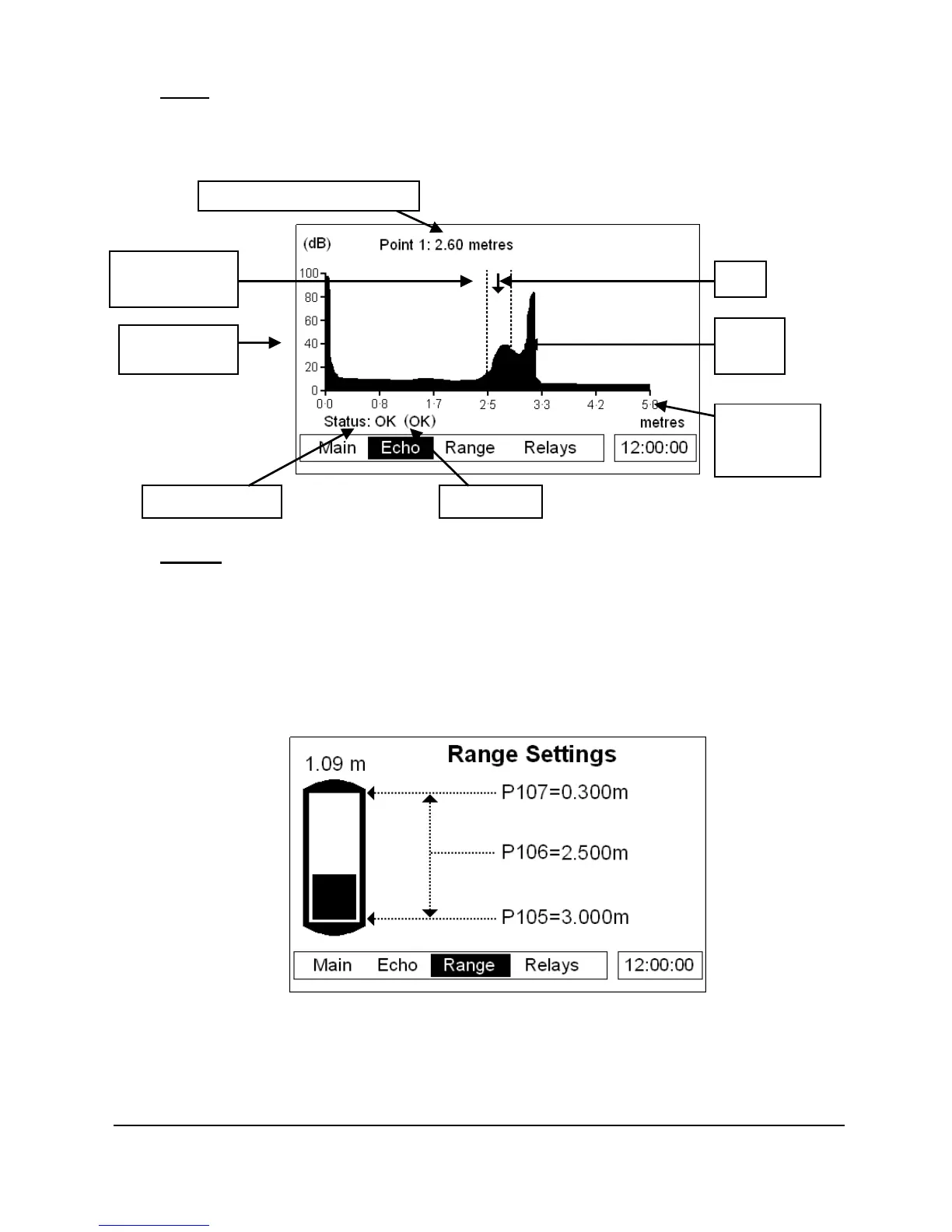

The echo screen displays the echo data. Below is an annotated example of a typical
secondary settlement tank sludge interface
Range
This screen gives details of the current interface level and the range settings held
in the Sludge Finder 2.
P107 = Near Blanking Distance
P106 = Span
P105 = Empty Distance
Tank
Bottom
Gate
Sludge interface
indicator
Echo Strength
in dB
Distance in
measurement
units
Sludge interface measurement
Transducer Status
Wiper Status
