103

ESP-LXME Controller

Install Station Module

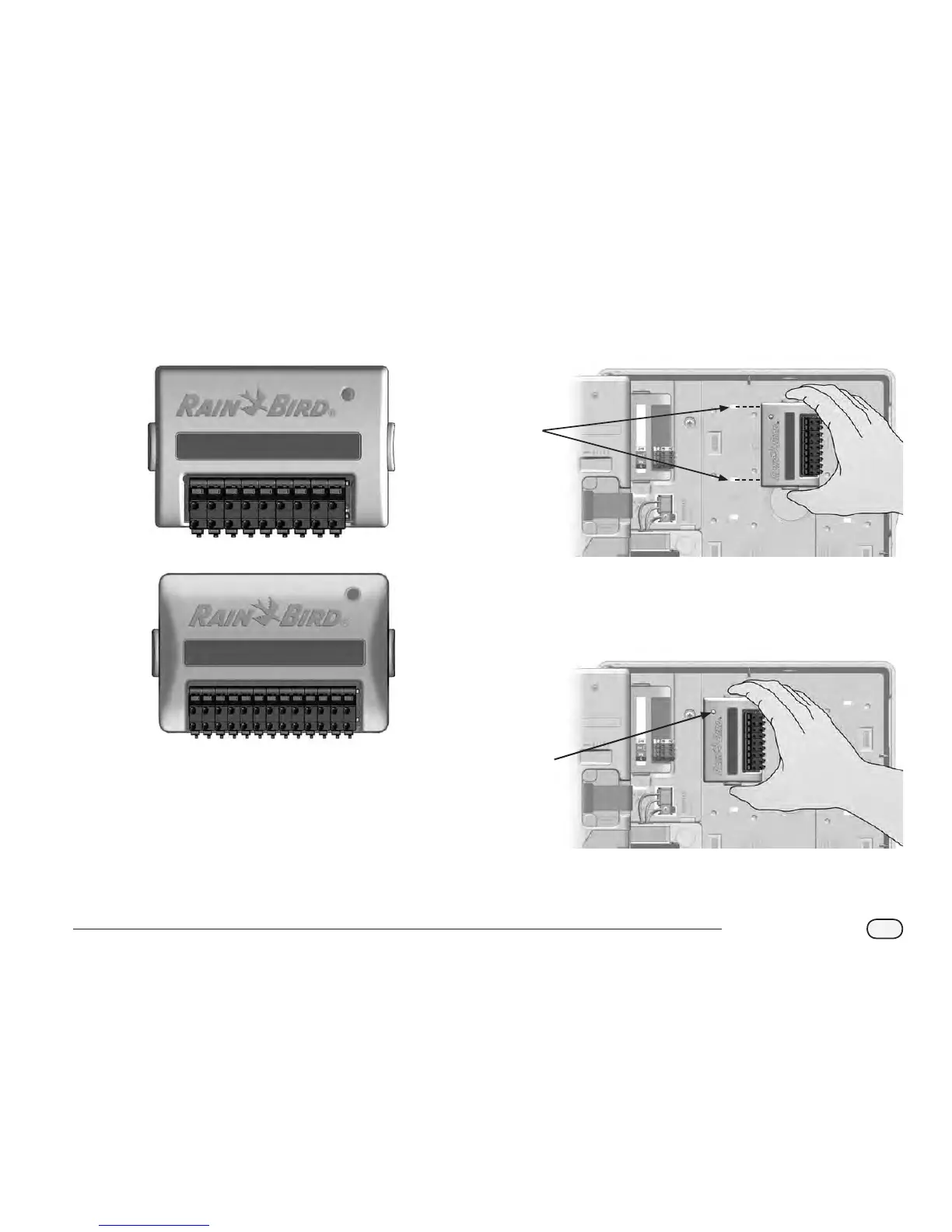

Install the station module in Slot 1 that was included with your ESP-LXME

controller. Additional station modules can be purchased separately.

ESP-LXM -SM8 Station Module

ESP-LXM-SM12 Station Module



CAUTION: Be careful not to bend the pins in the sockets when

installing a module.

A

Orient the connector on the bottom of the station module with

the connection socket in Slot 1 on the controller backplane. (An

ESP-LXM-SM8 is shown.)

B

Carefully fasten the module onto the controller backplane,

pressing rmly until it snaps into place. The red light on the module

will ash on and o once if the module is installed correctly. If the

light does not ash once, verify the module is seated correctly.



NOTE: To remove a module, press in on the (two) release buttons

on either side of a module.
