93
ESP-LXME Controller
Section H - Installation
This section explains how to mount the ESP-LXME controller, connect
the wiring, and verify proper operation.
Prepare For Installation
Installation Checklist
When installing the ESP-LXME controller for the rst time, it is
recommended that you complete the following steps in order.
For your convenience a check-o box is provided for each step.
Check box contents ........................................................................Page 93
Gather installation tools ...............................................................Page 94
Select a location ..............................................................................Page 95
Mount the controller .....................................................................Page 98
Connect source power ..................................................................Page 99
Install base and station module(s) ............................................Page 102
Connect eld wiring.......................................................................Page 105
Complete the installation ............................................................Page 108

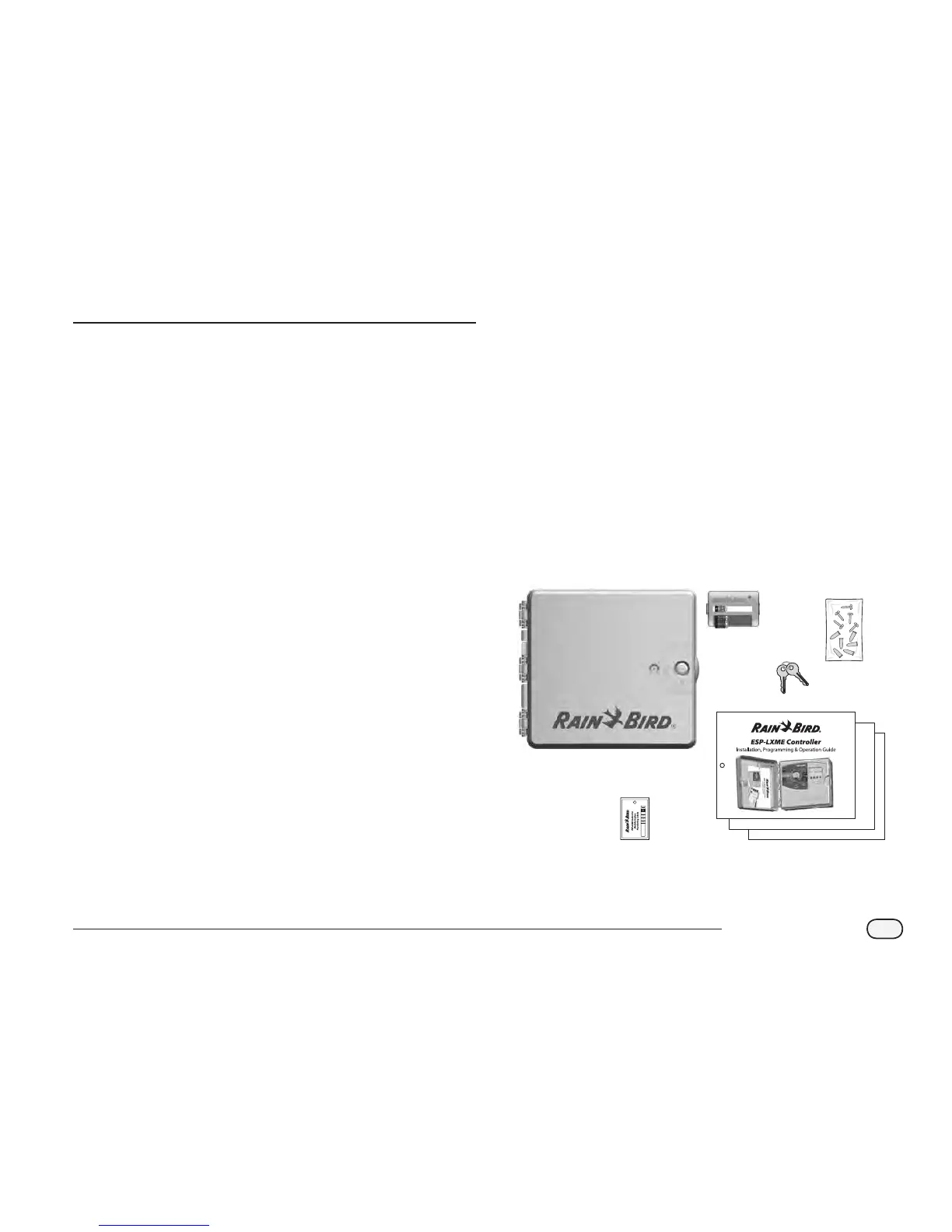

Check Box Contents
All components below are included with your ESP-LXME controller and
are required for installation. If anything is missing, please contact your
distributor before proceeding.
A
ESP-LXME controller and modules.
B
Mounting hardware (5 screws, 5 plastic wall anchors).
C
Controller cabinet keys.
D
ESP-LXME Controller Installation, Programming, & Operation
Guide.
E
ESP-LXME Controller Programming Chart.
F
Controller mounting template.
G
Station Numbering Labels
1
2
3
456
7
Box Contents
