Rain Bird ESP-LXME User Manual

49
ESP-LXME Controller
Module Status

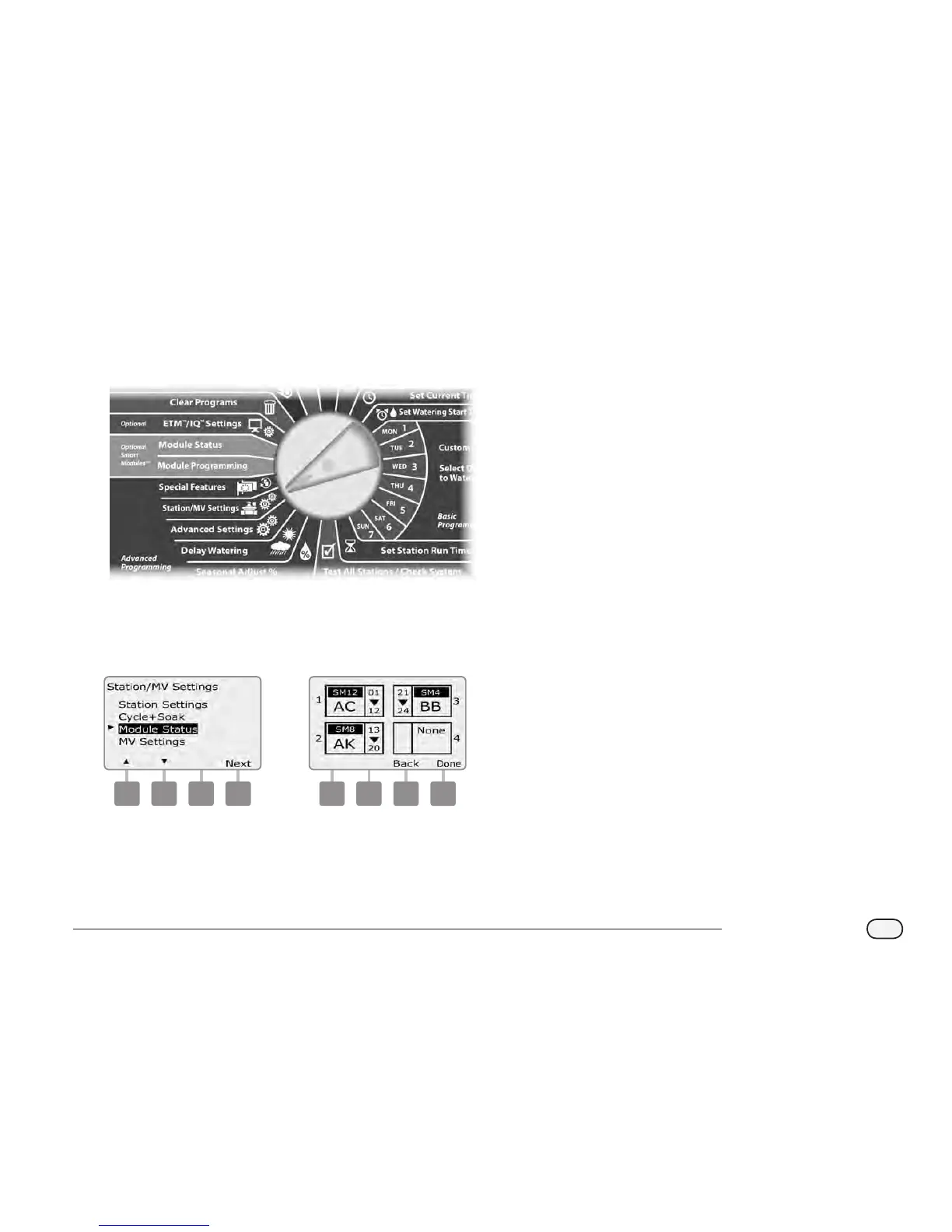

The Module Status option displays the status of any station module
installed in Slots 1-4.

Turn the controller dial to Station/MV Settings.
A
The Station/MV Settings screen appears. Press the Down Arrow
button to select Module Status; then press Next..
B
The Module Status screen appears. The current status of any
installed station modules is displayed.
1 2

Rain Bird ESP-LXME Specifications

General

Programs	4 independent programs
Controller Type	Modular
Station Run Time	1 minute to 12 hours
Enclosure Rating	NEMA 3R
Enclosure	Wall-mount
Power Source	120 VAC
Water Management	Seasonal Adjust
Sensor Compatibility	Rain Sensor
Communication	Optional
Battery Backup	Lithium
Watering Schedule	Odd/Even day, Cyclical
