ESP-LXME Controller
Dynamic Station Numbering
The ESP-LXME controller will automatically detect any new station
modules that have been installed. Follow the instructions on the front
panel LCD to congure a station module.
A

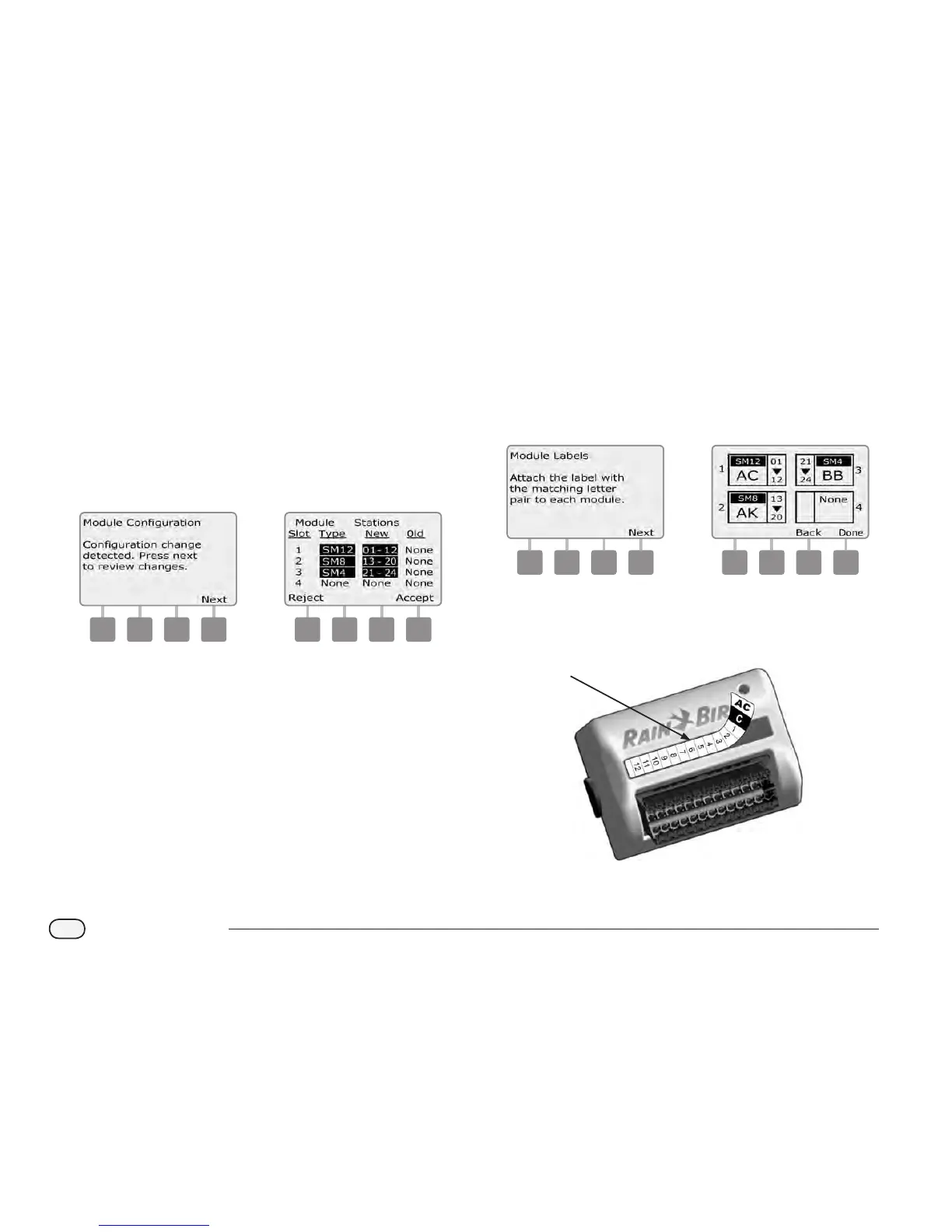

A Module Conguration screen is displayed whenever the ESP-
LXM Controller detects a change in module conguration. Press
Next to continue.
B
The Module Summary screen displays the module type detected
in each module slot along with the new and old assigned station
numbers. Press Accept to accept the new module conguration.
(Reject will retain the current conguration.)
1 2
C
The Module Labels screen is displayed. Locate the Module Station
Numbering Labels that are provided on a separate foldout sheet.
Press Next to continue.
D
The Module Station Numbering Graphic displays a pair of letters
(example: Slot 1 = Label AC) for each installed module. Find the
station numbering label on the foldout sheet with the matching
letter pair and place it over the blue strip on the module. Press
Done to nish.
3 4
NOTE: The Module Status can be reviewed at any time by turning
the dial to the Station/MV Settings dial position and selecting
Module Status. See Module Status in Section D for details.
4
