Rain Bird ESP-LXME User Manual

57
ESP-LXME Controller
A

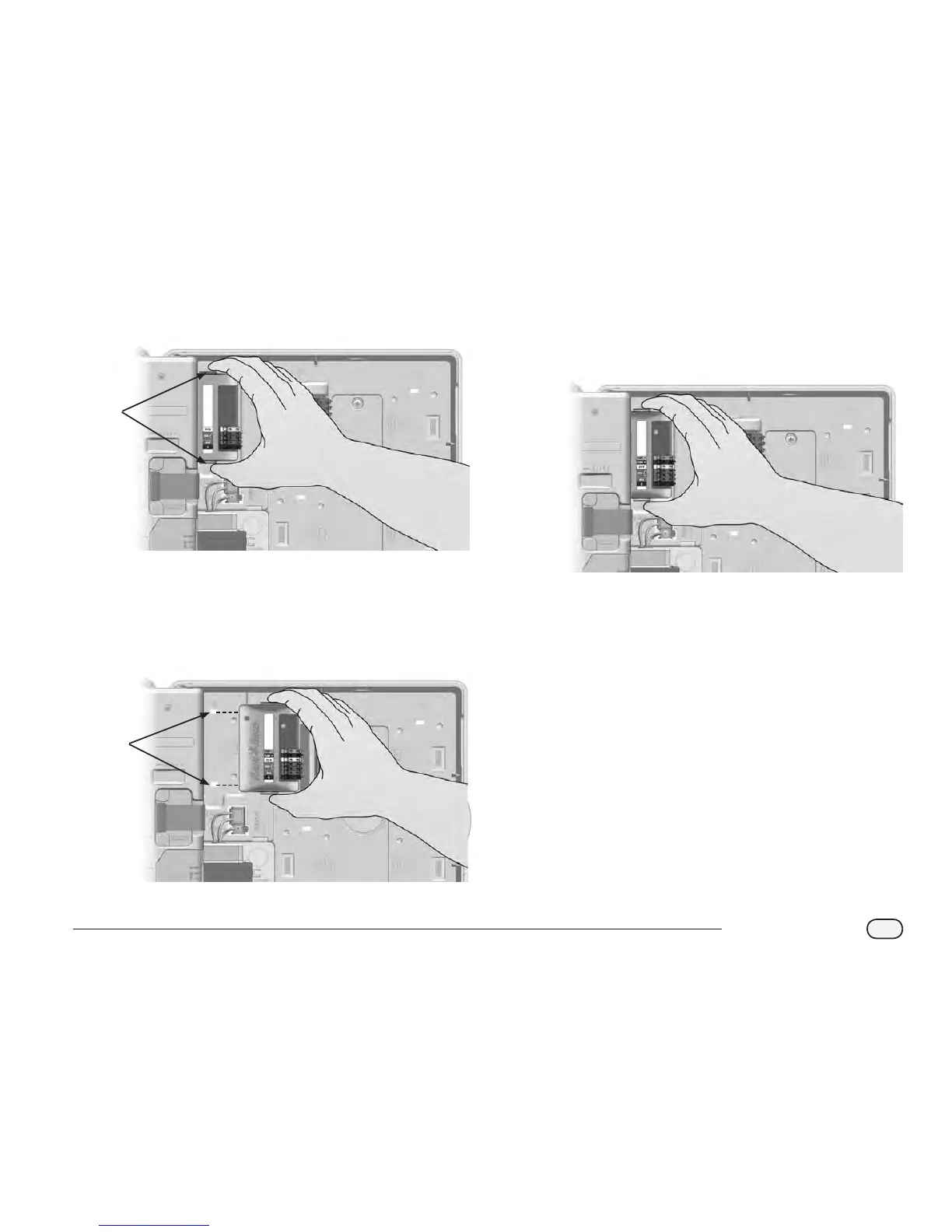

Remove the BM-LXME Base Module from Slot 0 by pressing in on
the two release buttons on either side of the module.
1

CAUTION: Be careful not to bend the pins in the sockets when
installing the module.
B
Orient the connector on the bottom of the FSM-LXME Flow Smart
Module with the connection socket in Slot 0 on the controller
backplane.
2
C
Carefully fasten the module onto the controller backplane,
pressing rmly until it snaps into place. The red light on the module
will ash on and o once if the module is installed correctly. If the
light does not ash, verify the module is properly seated.

Rain Bird ESP-LXME Specifications

General

Programs	4 independent programs
Controller Type	Modular
Station Run Time	1 minute to 12 hours
Enclosure Rating	NEMA 3R
Enclosure	Wall-mount
Power Source	120 VAC
Water Management	Seasonal Adjust
Sensor Compatibility	Rain Sensor
Communication	Optional
Battery Backup	Lithium
Watering Schedule	Odd/Even day, Cyclical
