The empty chamber (empty except for the absorber material covering the walls). If
spacers and disk fixtures (see Figure 7-22) are already installed in the RF shielded
box, you can leave them there.
If the wideband antenna or narrowband antennas are present in the chamber,
remove them as described in Chapter 7.11.2, "Taking narrowband antennas out of
the chamber", on page 139 or Chapter 7.12.2, "Taking the wideband antenna out of
the chamber", on page 145.
If one or more Vivaldi antennas mounted on the antenna holder are present in the
chamber, remove them as described in Chapter 7.6.5, "Taking the antenna holder
out of the chamber", on page 109.

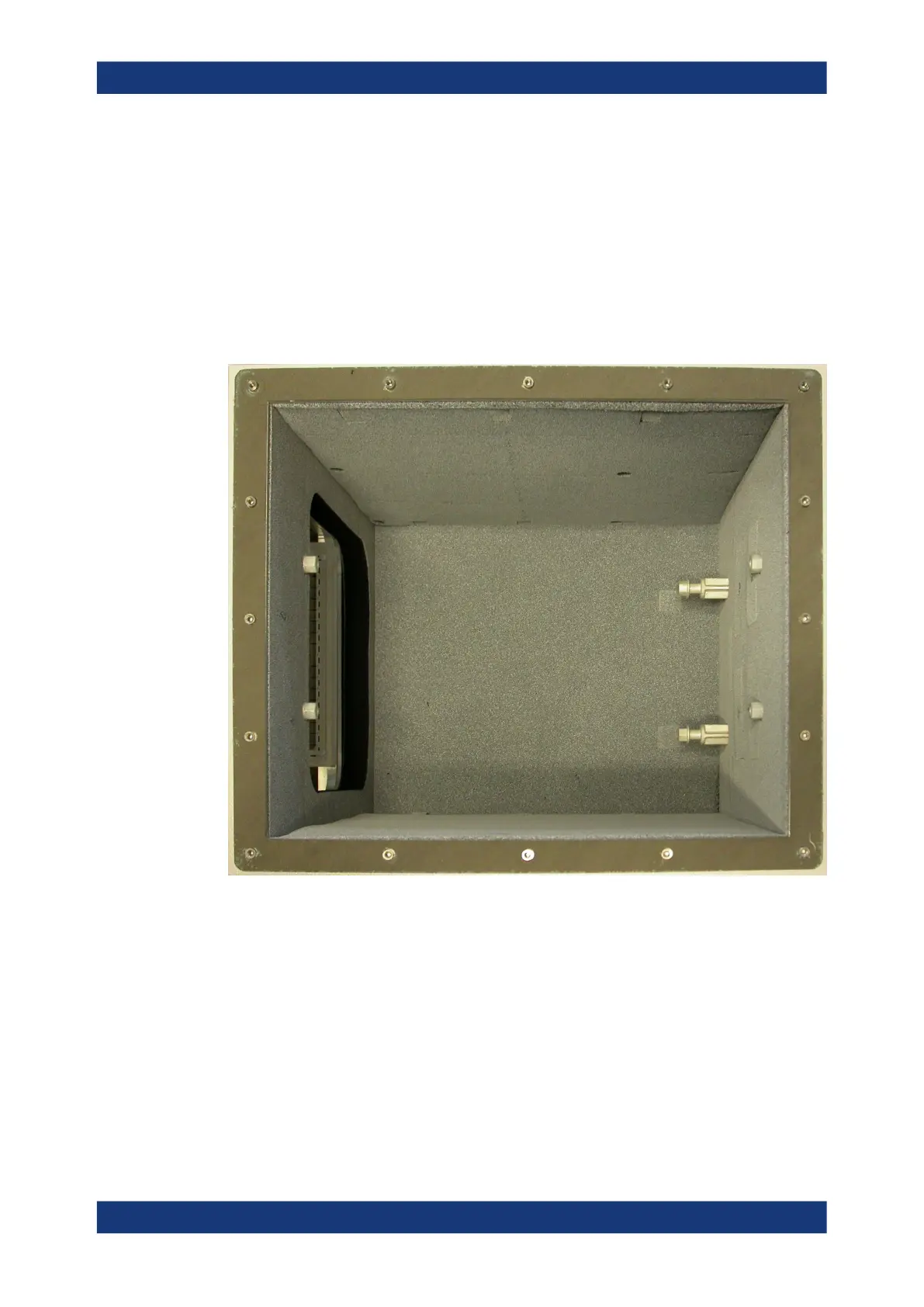

Figure 7-22: Top view of the empty chamber, with four spacers as well as two long disk fixtures at the
lower rear side
Installing an antenna ring or holder
