Configuration

R&S

TS7124M

99User Manual 1525.5394.02 ─ 05

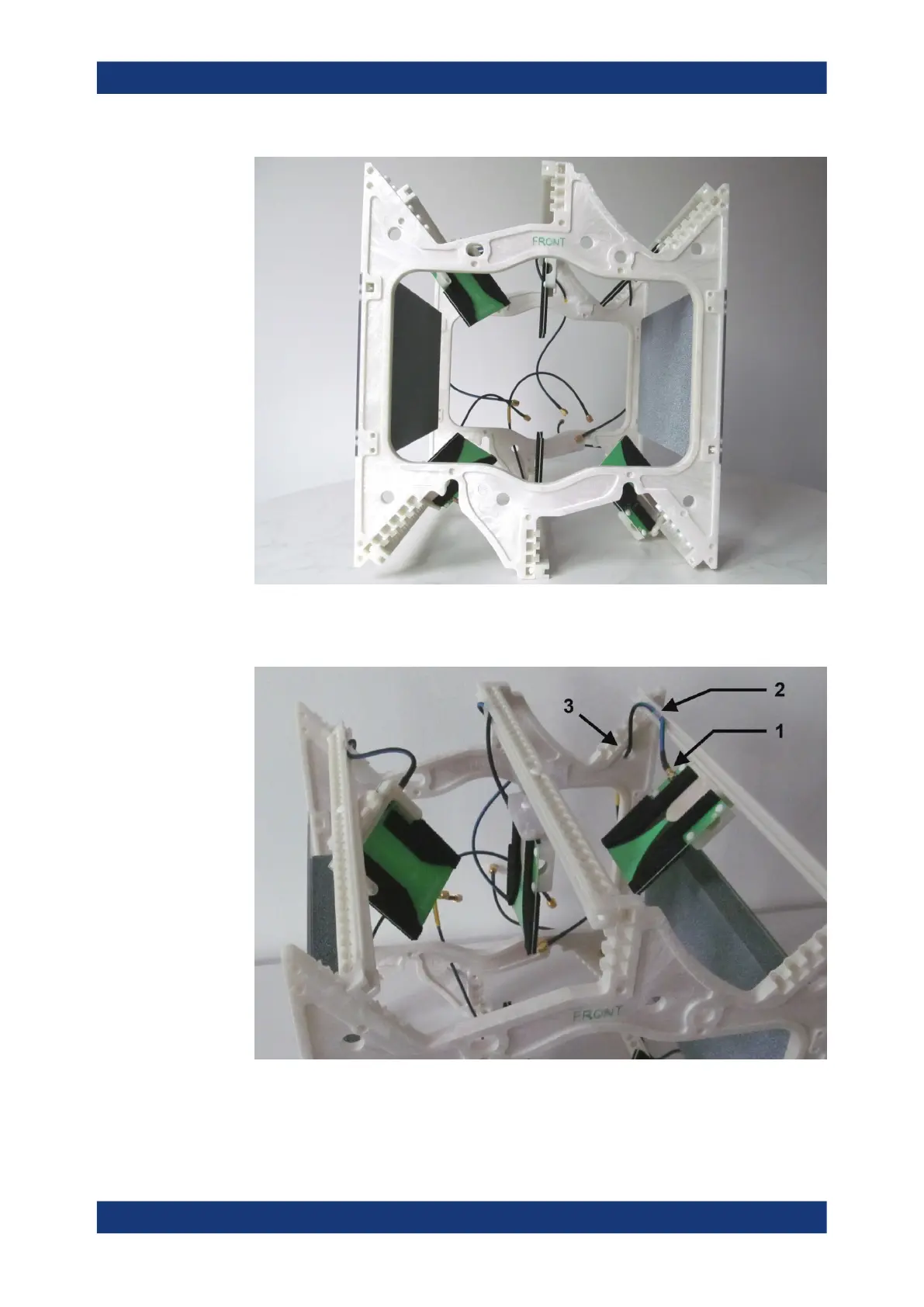

Figure 7-32: Antenna ring with some antennas and cables still mounted

8. Remove the cable guide clips (2 in Figure 7-33).

Figure 7-33: The antenna cables can be detached

Installing an antenna ring or holder
