P/N 016-0171-277 Rev. L 109
ENVIZIO PRO AND CRUIZER II CALIBRATION AND OPERATION
CALIBRATE THE SMARTRAX SYSTEM
SYSTEM DISENGAGE CALIBRATION - SMARTRAX ONLY
SMARTRAX SYSTEMS WITH A PRESSURE TRANSDUCER INSTALLED
IMPORTANT: This section applies only to SmarTrax systems utilizing a pressure transducer to disengage the SmarTrax
system when the steering wheel is turned. If a flow or pressure switch is installed in the SmarTrax system,
refer to the SmarTrax Systems with a Flow Switch or Pressure Switch Installed section on page 110 to
calibrate the SmarTrax system.

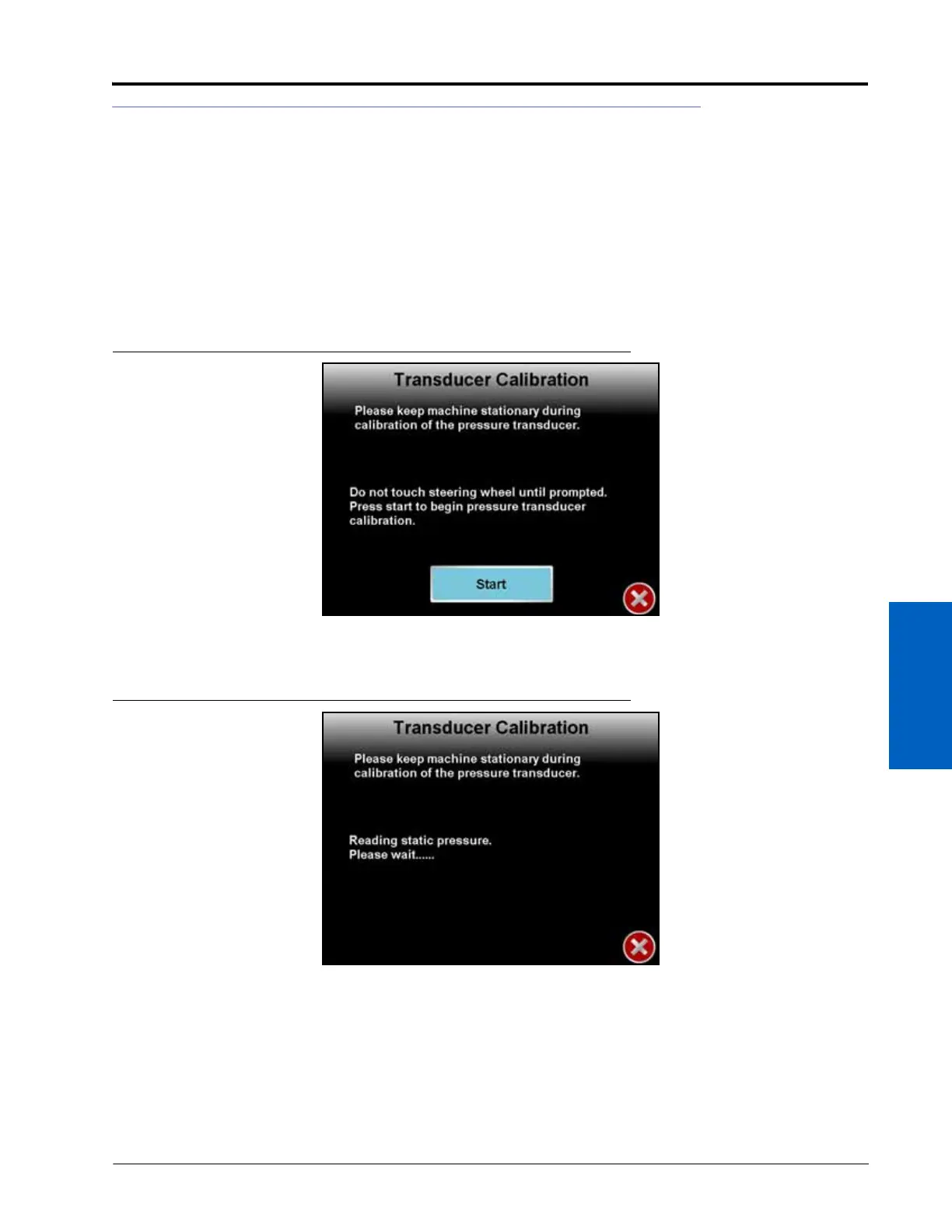

FIGURE 13. Transducer Calibration Screen
1. Press Start. The following screen will appear:
FIGURE 14. Transducer Calibrating Screen
2. When prompted, turn the steering wheel to allow the SmarTrax system to detect the hydraulic pressure
change. Once the system has detected the static and differential pressures, the following screen will be
displayed:
