CR7 CALIBRATION AND OPERATION
• Touch the right half of the SmarTrax status widget to view the System Information settings. These screens can
be used to:
◦ Adjust Online Sensitivity and Line Acquisition settings during operation.
◦ Review SmarTrax system performance.
◦ View device information.
NOTE: The operator liability waiver must be accepted before the SmarTrax system can be enabled for
operation.
The SmarTrax steering may also be engaged using the following methods:
• Tap the foot switch or rocker switch to engage SmarTrax features without touching the CR7 display.
• Press the SmarTrax on-screen status widget to engage the SmarTrax during field operation.
NOTE: The option to engage SmarTrax via the on-screen widget may not be available on some steering-
ready machines. In this case, the manufacturer-supplied engage switch must be used to engage
SmarTrax.
UPDATING THE NODE
Refer to the CR7 Installation & Operation Manual (P/N 016-0171-664) for instructions on updating the node
software.
RESET CALIBRATION

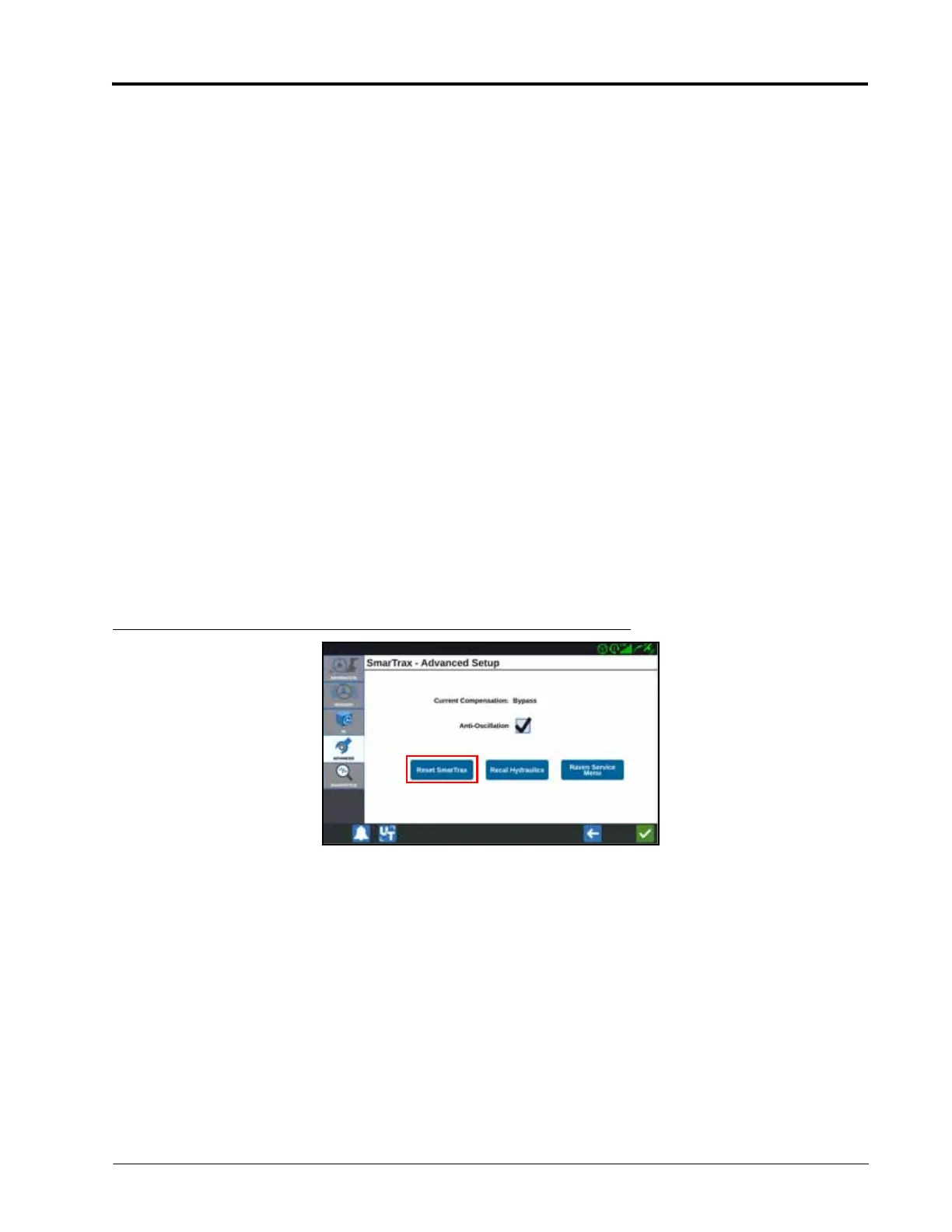

FIGURE 39. Reset Calibration
Resetting the SmarTrax system calibration will delete all system settings and adjustments that have been
performed. Before resetting the SmarTrax calibration, write down the current system settings for reference later.
Recalibrate the SmarTrax system after the system is reset.
