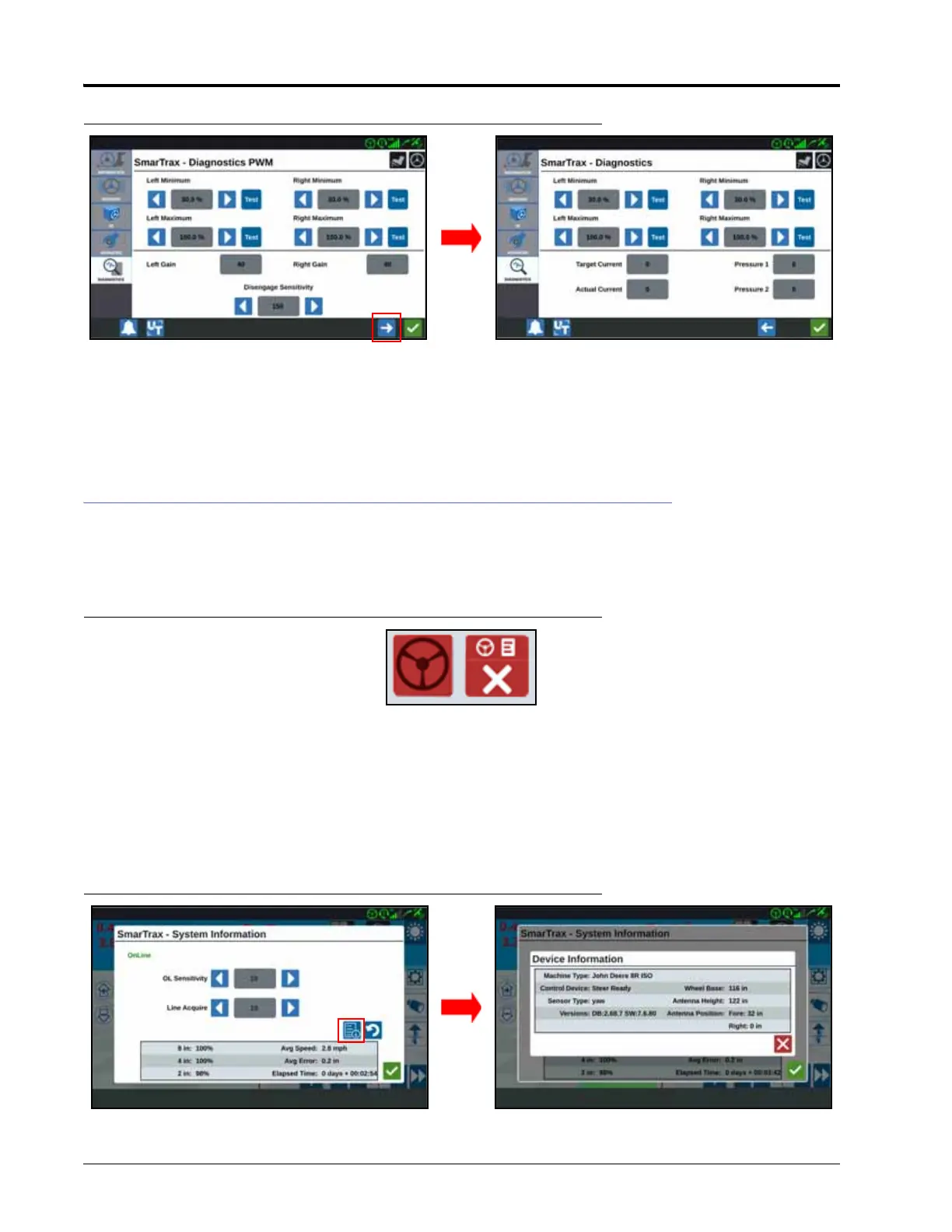

FIGURE 36. Diagnostics Screen
• Target Current and Actual Current - Target Current is what the system expects to read. Actual Current displays
the amount of current the system is using to steer the machine. These values are used to adjust system
performance.
• Pressure 1 and Pressure 2 - Readings from the pressure transducers installed in the system.
ROUTINE OPERATION
ENGAGE SMARTRAX
FIGURE 37. SmarTrax Status Widget
NOTE: If the SmarTrax status widget does not appear on the screen, refer to the CR7™ Installation and
Operation manual (P/N 016-0171-664) for further information on adding widgets.
• Touch the left half of the SmarTrax status widget during field operations to engage and disengage the
SmarTrax features as desired during field operations.
NOTE: The SmarTrax status widget may not engage SmarTrax steering on some types of machines.
FIGURE 38. System Information Settings
