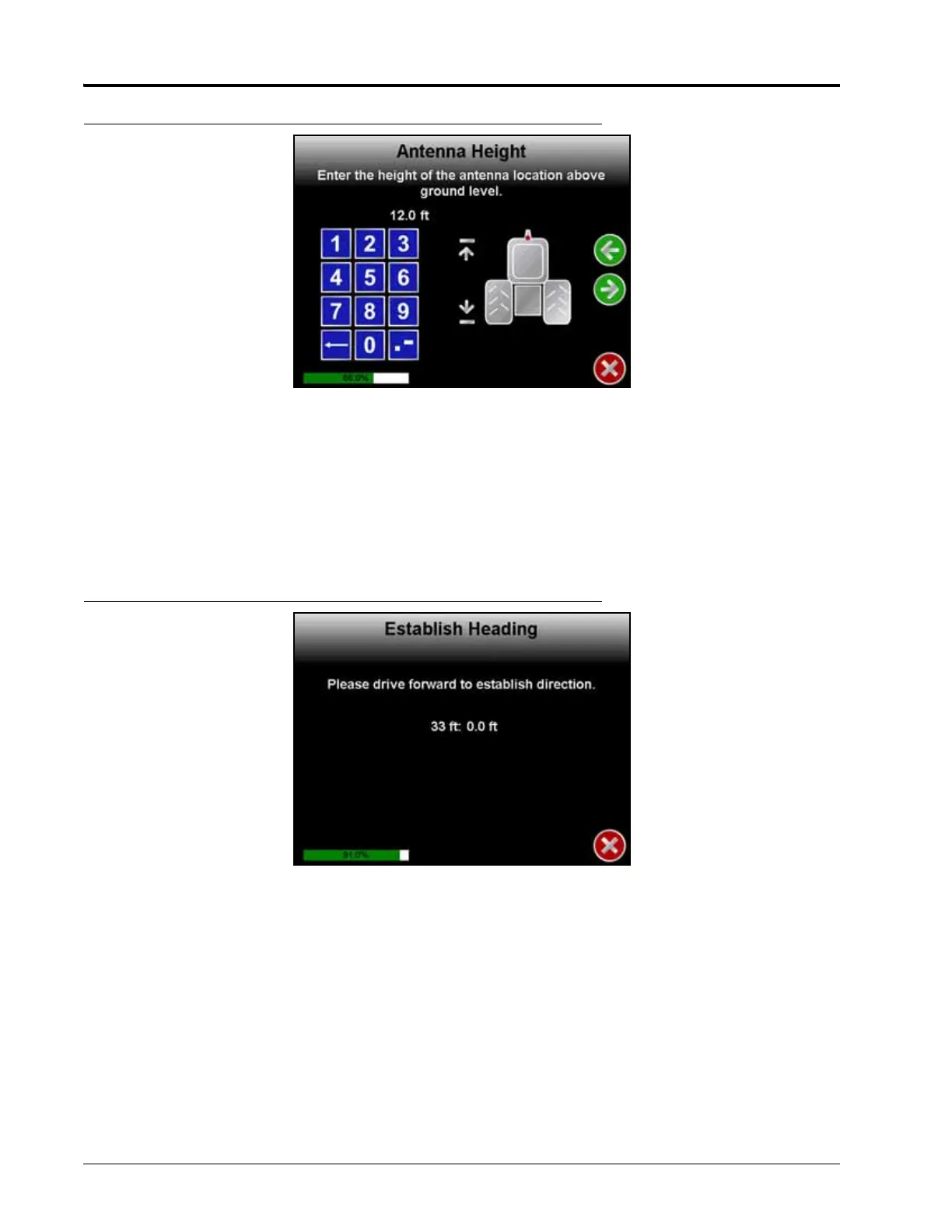

FIGURE 24. Antenna Height Configuration Screen
8. Select the value box to enter the Antenna Position measurement using the on-screen keypad.
9. Select Next.
ENHANCED TILT CALIBRATION
NOTE: The machine must detect a forward motion prior to calibration to determine which direction it is
facing.
FIGURE 25. Establishing Heading Screen
1. Drive the machine forward 33 feet and park on a flat surface.
NOTE: The machine must detect a forward motion prior to calibration to determine which direction is
forward.
