Raven SmarTrax User Manual

P/N 016-0171-277 Rev. L 49
VIPER 4/4+ CALIBRATION AND OPERATION

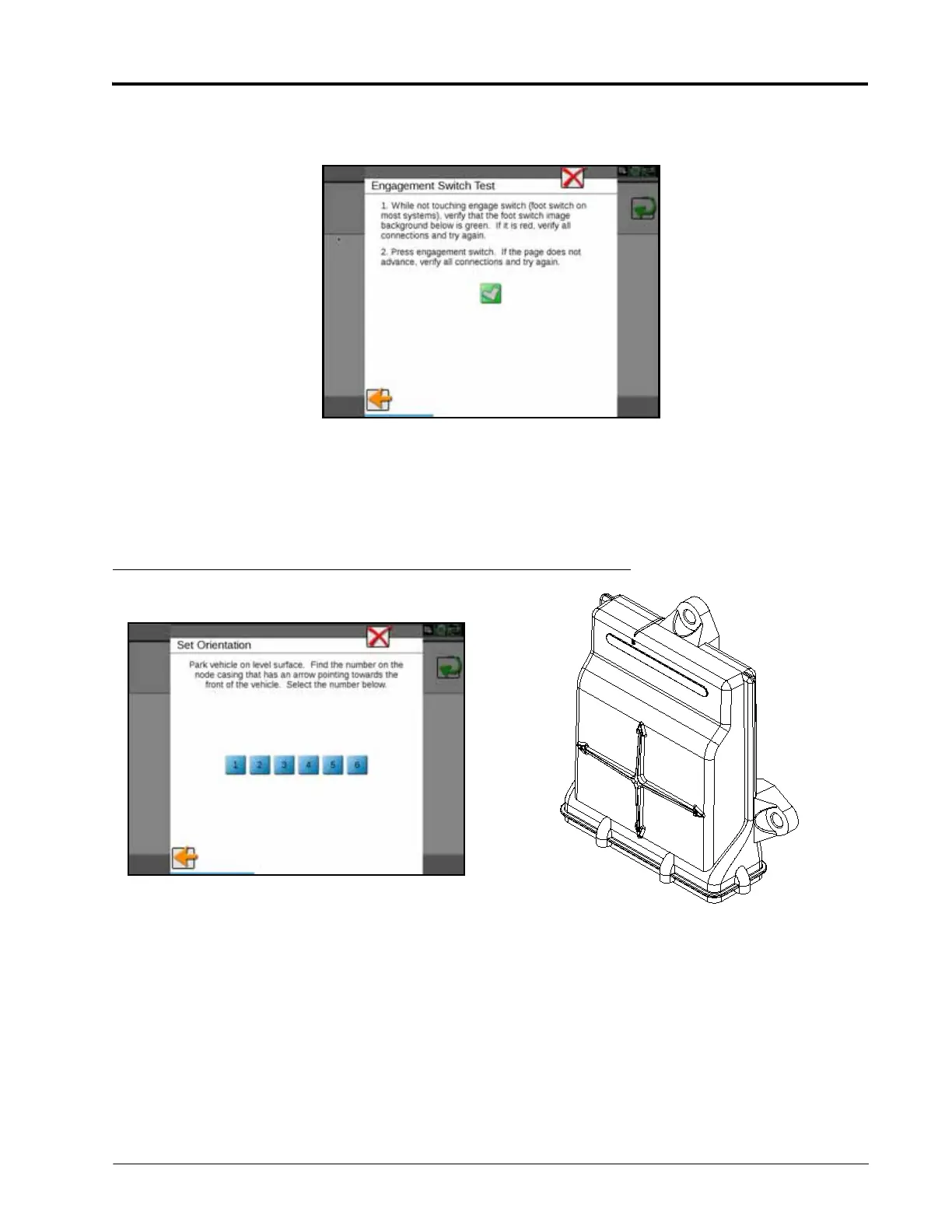

ENGAGE SWITCH AND NODE ORIENTATION
1. Review the on-screen instructions.
2. Press and release the foot switch or engage switch.
NOTE: The SmarTrax Setup Wizard will automatically advance to the next step in the calibration process
when the engage switch is detected.
FIGURE 15. Node Orientation Screen
3. Ensure that the machine is parked on a level surface.
4. Select the number that corresponds with the node arrow number pointing toward the front of the machine.
IMPORTANT: Selecting the incorrect node arrow number may cause poor steering performance!
NOTE: The SmarTrax Setup Wizard will perform an initial calibration on the SmarTrax tilt sensors. The wizard
will automatically advance to the next step in the calibration process once the node calibration is
complete.
6
5
1
2
3
4
