6
P/N 016-0171-277 Rev. L 129
ENVIZIO PRO AND CRUIZER II CALIBRATION AND OPERATION
leaving the system in manual mode. Auto mode could cause instability, causing poor system performance.
Pressing PWM Setup displays the PWM Status screen to allow manual adjustments of the PWM values.
◦ Modify PWM Settings - Displays the PWM Status screen to allow manual adjustments of the PWM
values.
◦ Auto or Manual - Toggles between automatic and manual control of the PWM valves. If “Manual” is
displayed in the icon, the system is in manual mode and is no longer learning the PWM minimum values.
Pressing the button will switch SmarTrax to automatic mode. If “Auto” is displayed, the system is in
automatic mode and is learning the PWM minimum values. Adjusting a PWM Minimum value will switch
SmarTrax to manual mode. Raven Industries recommends leaving the system in manual mode and not
using auto mode.

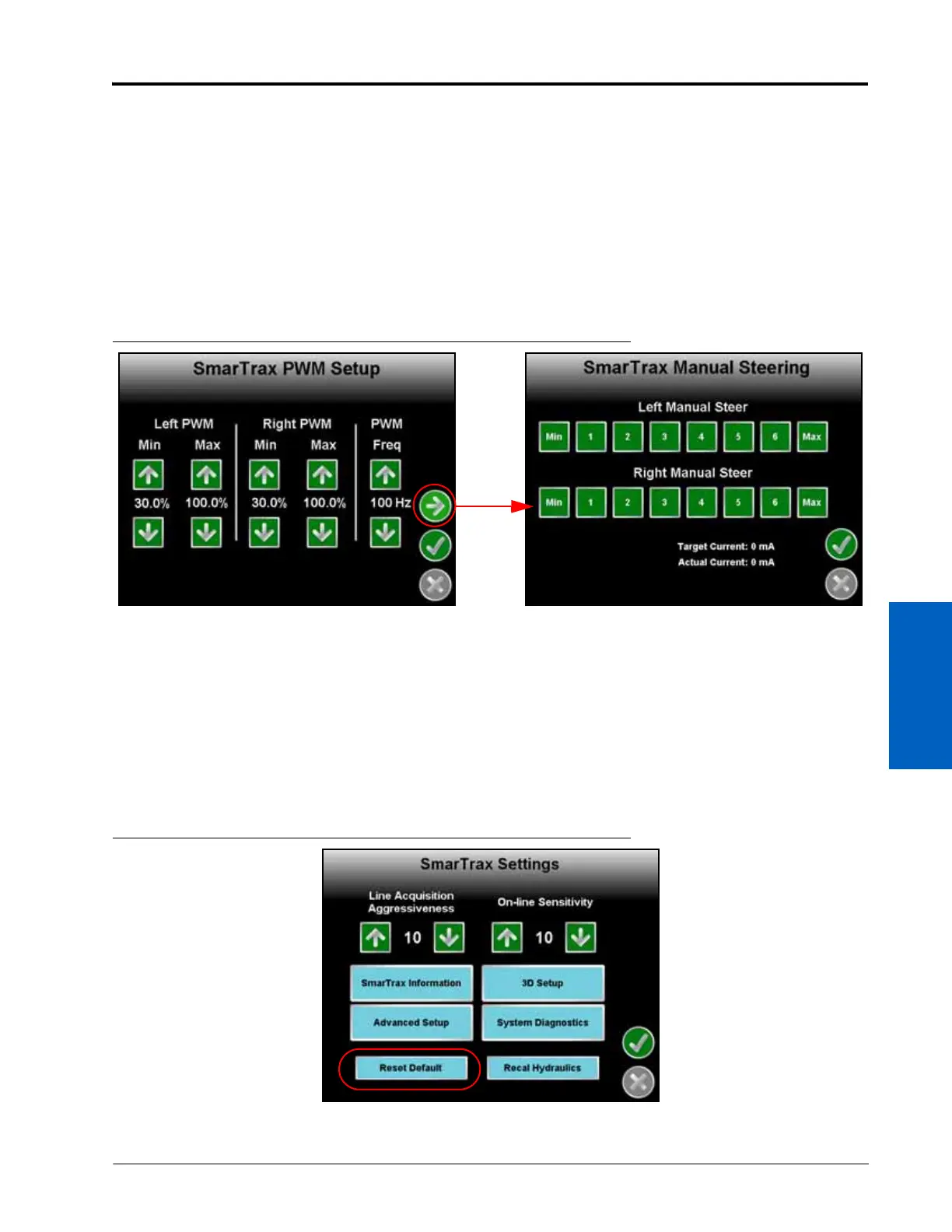

FIGURE 49. PWM Setup and Manual Steering Screens
• Left and Right Manual Steer - Used to manually test the SmarTrax system. Select one of the values or the Min
or Max button to steer the machine. If it does not respond as expected, the PWM values may need to be
adjusted.
• Target Current and Actual Current - Target Current is what the system expects to read. Actual Current
displays the amount of current the system is using to steer the machine. These values are used to adjust system
performance.
RESET DEFAULT
FIGURE 50. SmarTrax Settings Screen
Selecting the Reset Defaults resets the SmarTrax system settings to the default values.
