INITIAL STARTUP
DATA TRANSFER
During the initial startup of the SmarTrax system, language data must transfer from the SmarTrax node to the
Viper Pro. Allow several minutes for data transfer to complete before calibrating SmarTrax.
NOTE: The Rx and Tx diagnostic LEDs on the SmarTrax node will flash rapidly during the data transfer. The Rx
and TX lights will flash slowly or turn off when the data transfer is complete. Attempting to access the
SmartTrax configuration screen while language data is transferring will open a message asking the
user to try again later.
GPS CONFIGURATION
1. From the Home screen, select Menu.
2. Select Setup.
3. Select Comm Port. The following screen will appear:

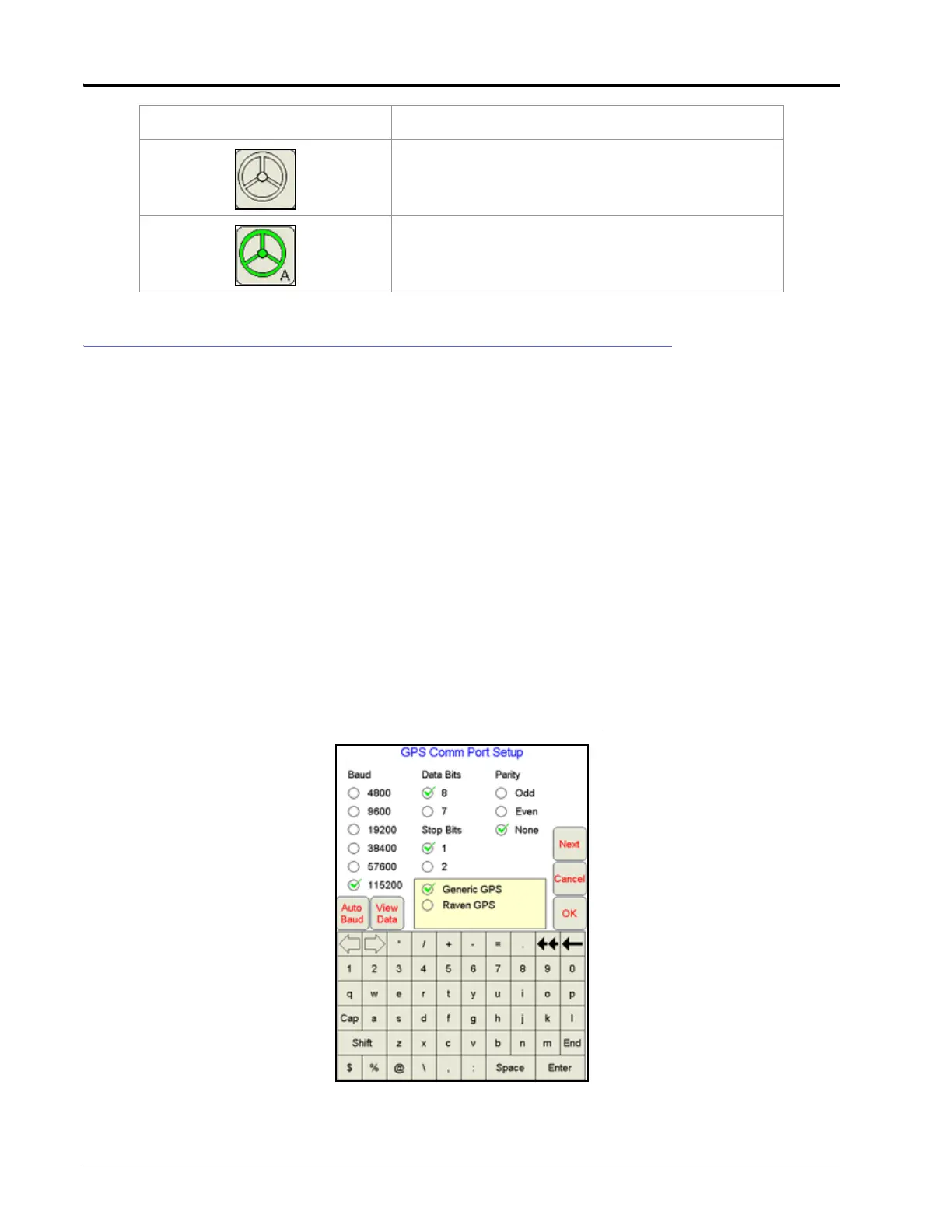

FIGURE 1. GPS Comm Port Setup Screen
4. Adjust the GPS settings to match the settings shown in Figure 2 above.
SmarTrax is detected and turned on, but is not enabled.
Tap the foot switch or touch the steering wheel icon to
enable the SmarTrax system.
SmarTrax is detected and in operation, with no errors
detected.
