VIPER PRO CALIBRATION AND OPERATION

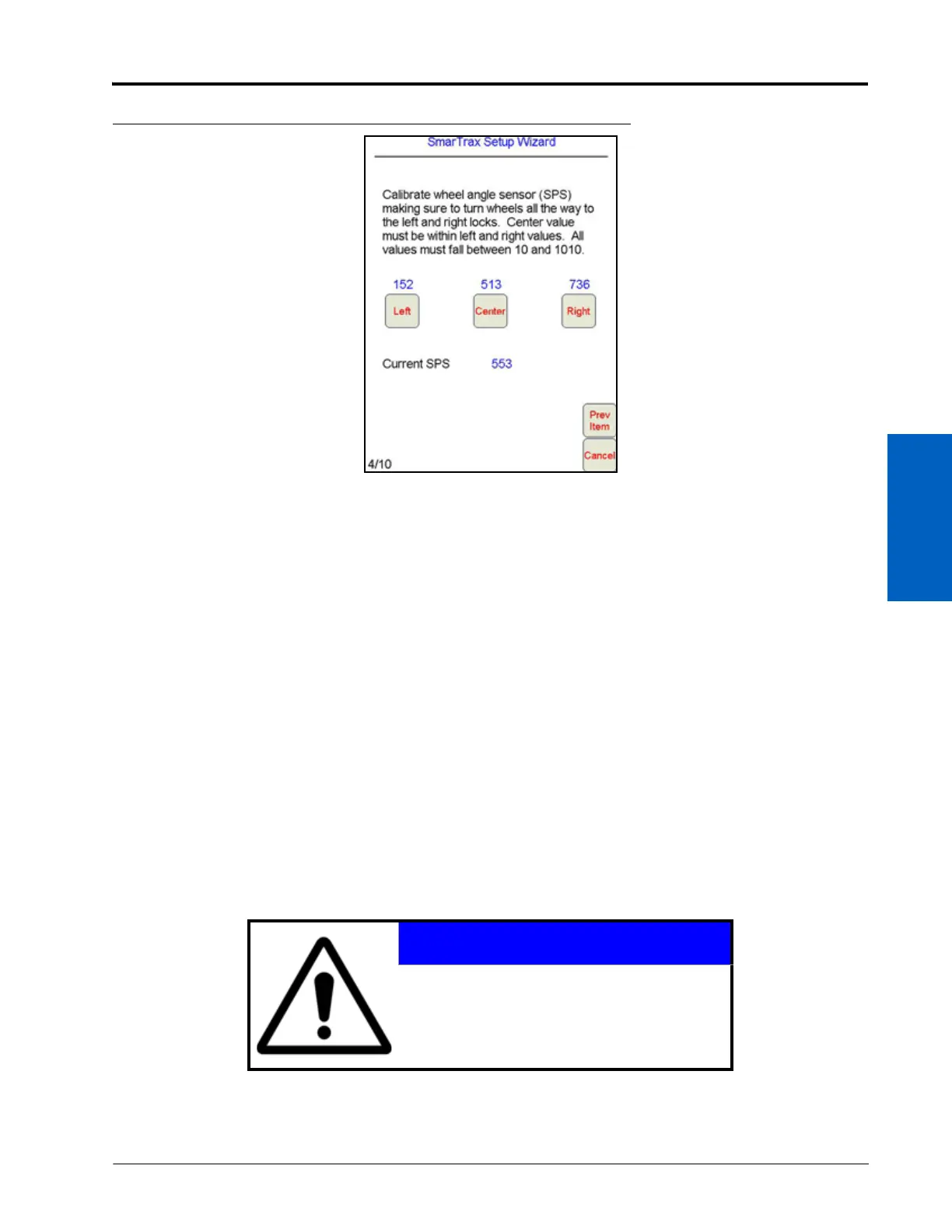

FIGURE 13. SPS/WAS Calibration Screen
1. While driving slowly, turn the steering wheel fully to the left wheel lock.
2. Select Left.
3. Continue driving slowly and straighten the wheel until the machine is driving straight forward.
4. Select Center.
5. Turn the steering wheel fully to the right wheel lock.
6. Select Right.
7. Select Next Item.
CONFIGURING WHEEL BASE AND ANTENNA OFFSETS
If a generic machine profile was selected during the machine configuration process, the Wheel Base, Antenna
Position, and Antenna Height values must be entered into the SmarTrax system.
IMPORTANT: If a specific machine profile was selected during the machine configuration process, the Wheel base,
Antenna Position, and Antenna Height measurements will be automatically populated in the screen.
However, the antenna mounting position may vary on the machine, so it is important to re-measure the
Antenna Position and Antenna Height to verify that the settings in the Viper Pro are correct. The Wheel
Base value cannot be changed.
NOTICE
The Wheel Base, Antenna Position, and Antenna
Height values are critical to the operation of the
SmarTrax system. Measure these dimensions
accurately to ensure optimal SmarTrax system
performance!
