VIPER PRO CALIBRATION AND OPERATION
1. Select Next Item in the SmarTrax Setup Wizard. The following screen will appear:

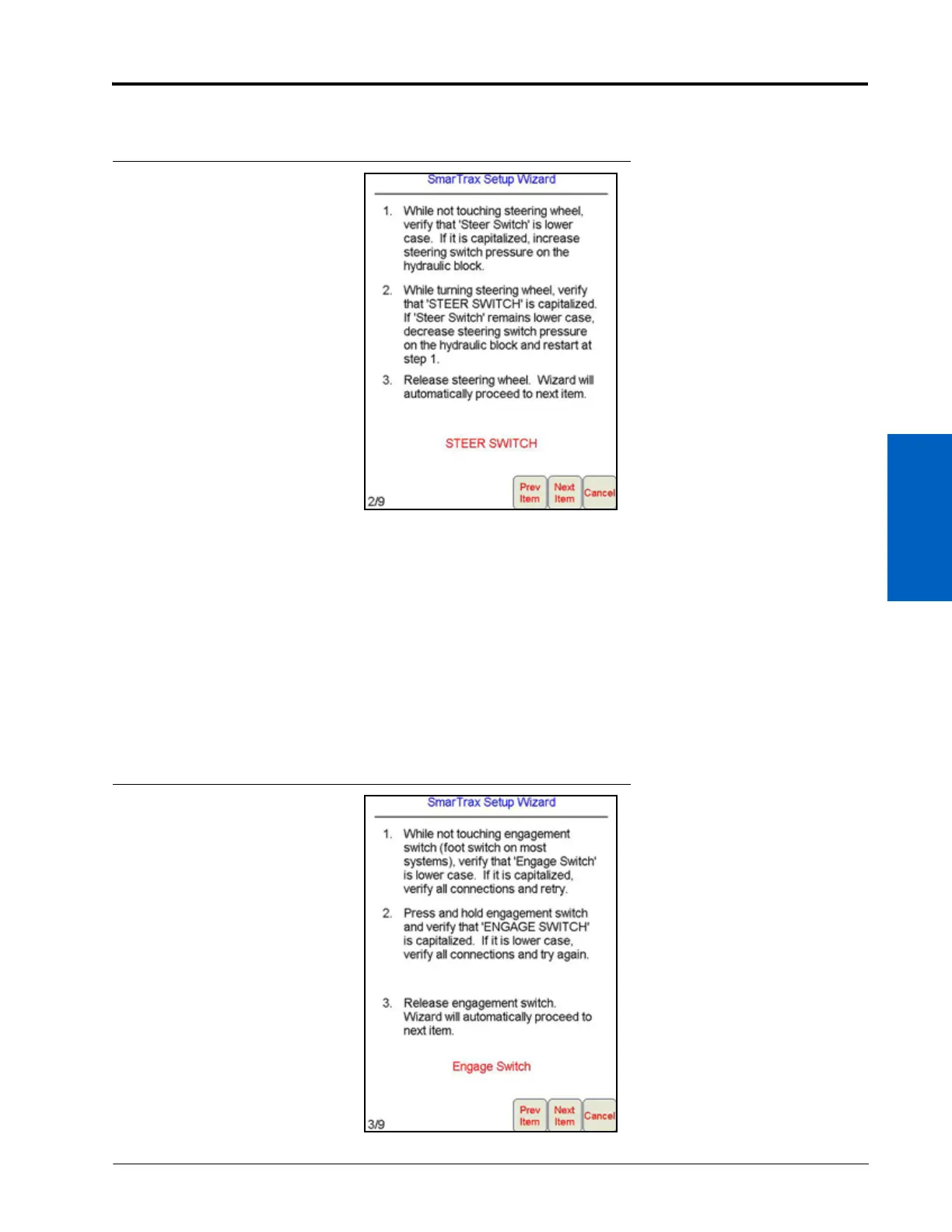

FIGURE 10. Steering Switch Calibration Screen
2. Review the on-screen instructions and turn the steering wheel to verify proper operation.
NOTE: The SmarTrax Setup Wizard will automatically advance to the next step in the calibration process
when the steering wheel is turned. If it does not, refer to Chapter 7, Troubleshooting for
troubleshooting information. If the problem persists, contact your local Raven dealer for further
information.
3. Proceed to Engage Switch Calibration and Node Orientation section on page 79 to continue with the SmarTrax
system calibration.
ENGAGE SWITCH CALIBRATION AND NODE ORIENTATION
FIGURE 11. Engage Switch Calibration Screen
