3. When prompted, turn the steering wheel 90° to allow the SmarTrax system to detect the hydraulic pressure
change. Once the system has detected the static and differential pressures, the following screen will be
displayed:

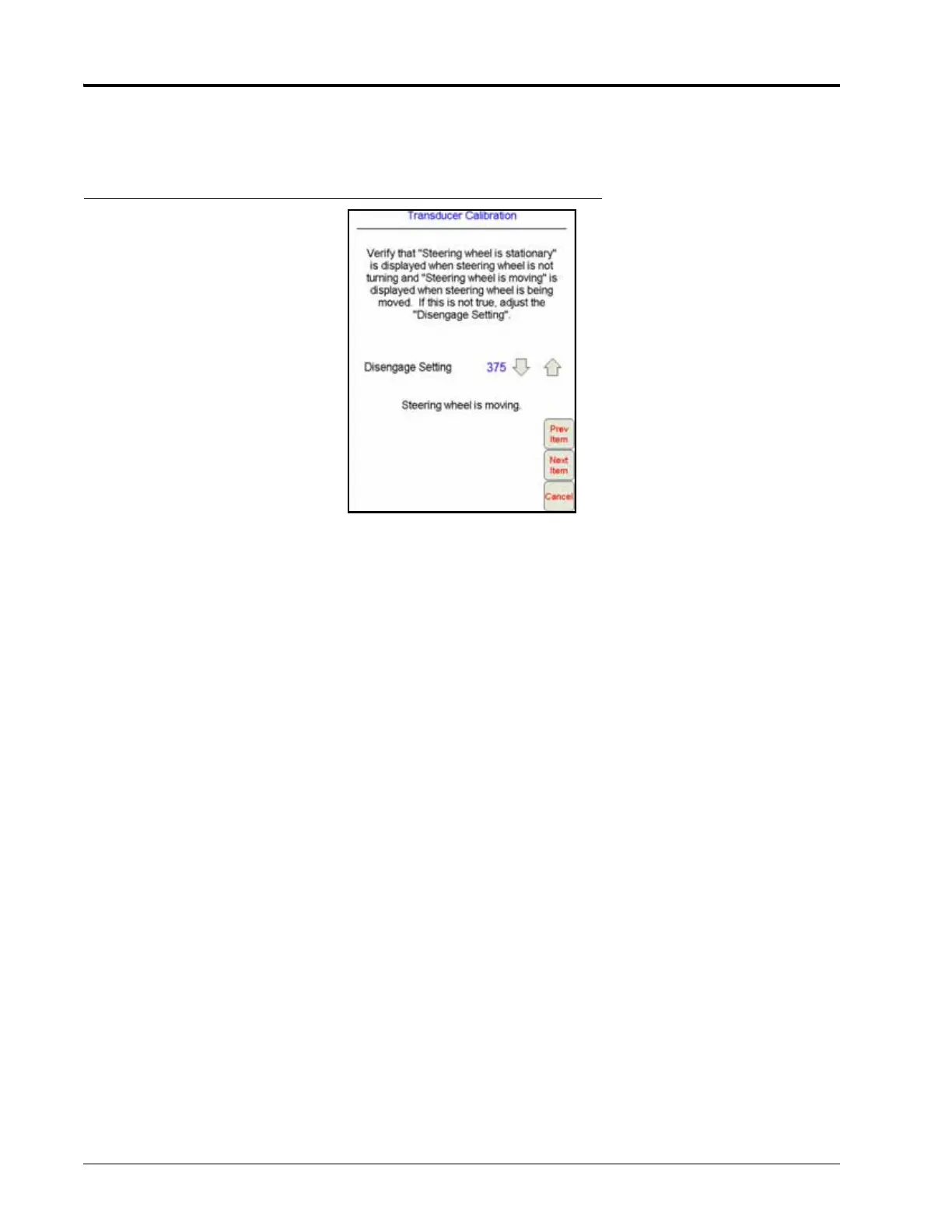

FIGURE 9. Transducer Calibration Verification
4. Verify the Viper Pro displays the correct steering operation message as indicated in Figure 9 above.
NOTE: It may be necessary to increase the disengage setting to require more steering input to disengage
SmarTrax or to decrease the disengage setting to require less steering input.
5. If the system setting is correct, select Next Item.
6. Proceed Engage Switch Calibration and Node Orientation section on page 79 to continue with the SmarTrax
system calibration.
SMARTRAX SYSTEMS WITH A FLOW SWITCH OR PRESSURE SWITCH INSTALLED
IMPORTANT: This section applies only to SmarTrax systems utilizing a flow switch or pressure switch to disengage the
SmarTrax system when the steering wheel is turned. If a pressure transducer is installed in the SmarTrax
system, refer to the System Disengage Calibration section on page 77 to calibrate the SmarTrax system.
