P/N 016-0171-277 Rev. L 113
ENVIZIO PRO AND CRUIZER II CALIBRATION AND OPERATION

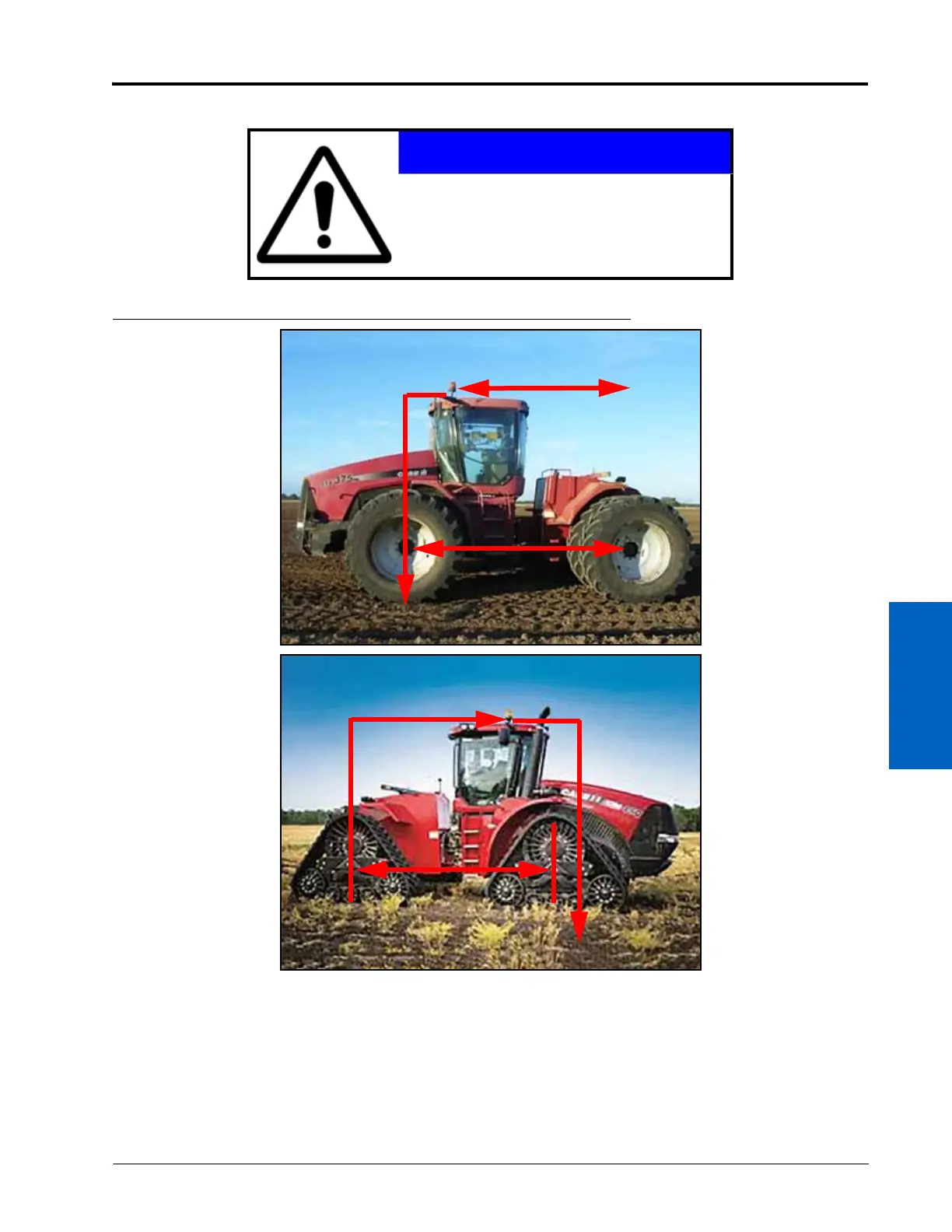

FIGURE 20. Articulated Machine Measurements
NOTE: For articulated machines, measure from the center of the front tire to the center of the rear tire on
both sides of the machine. Add the values together and divide the number by two to find the
average.
NOTICE
The Wheel Base, Antenna Position, and Antenna
Height values are critical to the operation of the
SmarTrax system. Measure these dimensions
accurately to ensure optimal SmarTrax system
performance!
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
