CHAPTER 6
120 SmarTrax™ Calibration & Operation Manual
NOTE: To ensure the calibration is successful, the number of starts and stops during the calibration process
should be limited. If it is necessary to pause the calibration process, turn the steering wheel or tap the
foot/enable switch. Touch the Back button and tap the foot/enable switch again to resume
calibration.

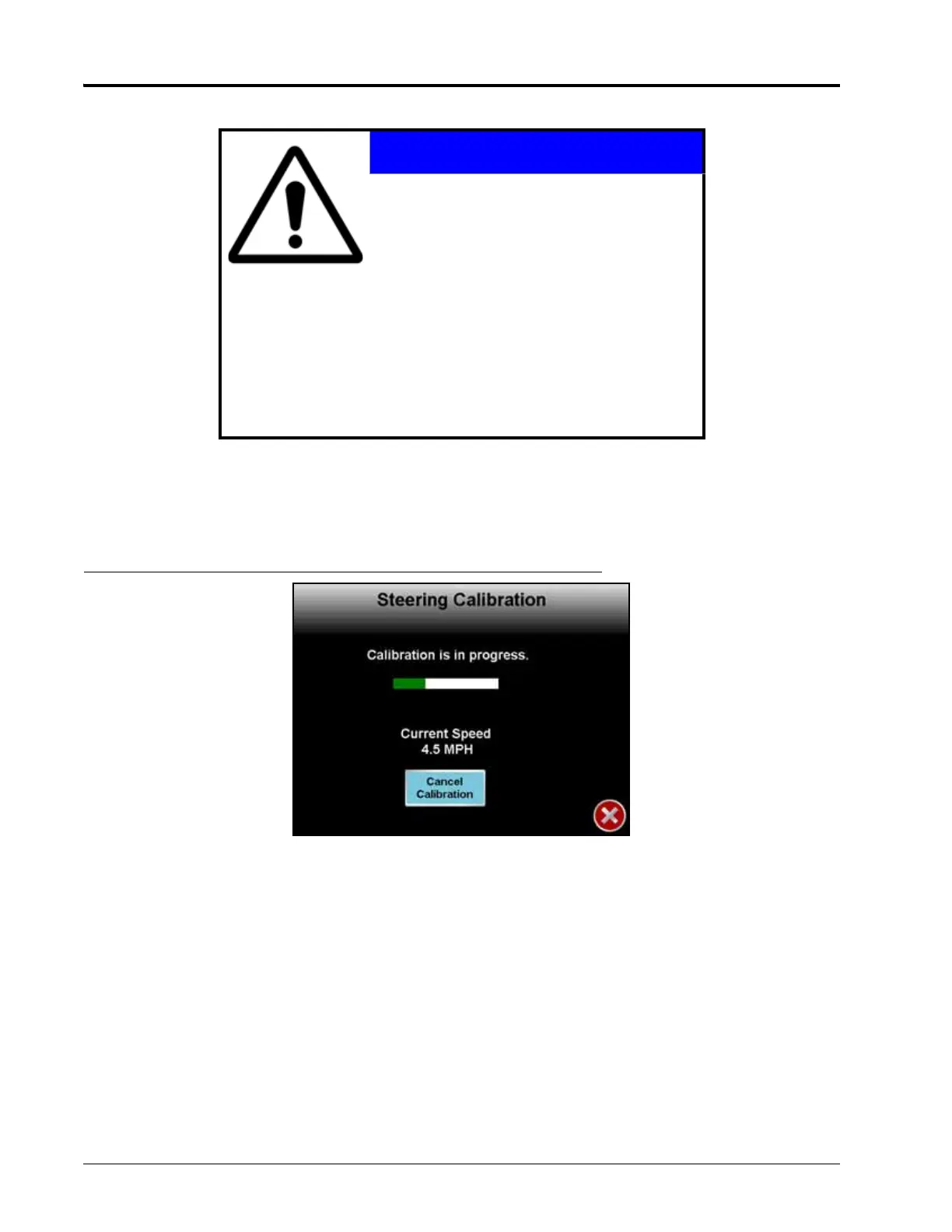

FIGURE 33. Steering Calibration Screen
1. Position the machine in an open space with several acres of smooth ground available to perform the machine’s
steering calibration.
2. Press the foot/engage switch to begin calibration.
NOTE: During calibration, the machine will turn hard to the left or right and progressively turn in the
opposite direction, then turn hard in that direction and progressively turn back in the opposite
direction. Adjust the speed and vehicle location as necessary.
NOTE: If an error message is displayed during calibration, refer to the “Error Messages” section on page 134
for possible causes and corrective action to complete the calibration process.
NOTE: After calibration is complete, the SmarTrax menu will be displayed.
NOTICE
The calibration of the machine’s steering system
should be performed in a field or other large,
open space and during conditions similar to
normal vehicle operation.
If the ground or surface is slippery, muddy, or
freshly tilled, the SmarTrax system may learn
incorrect steering responses for normal
operating conditions.
Ensure that the machine’s hydraulics are
operating properly and there are no other
mechanical issues that may affect the
performance of the SmarTrax system.
