SmarTrax™ Calibration & Operation Manual

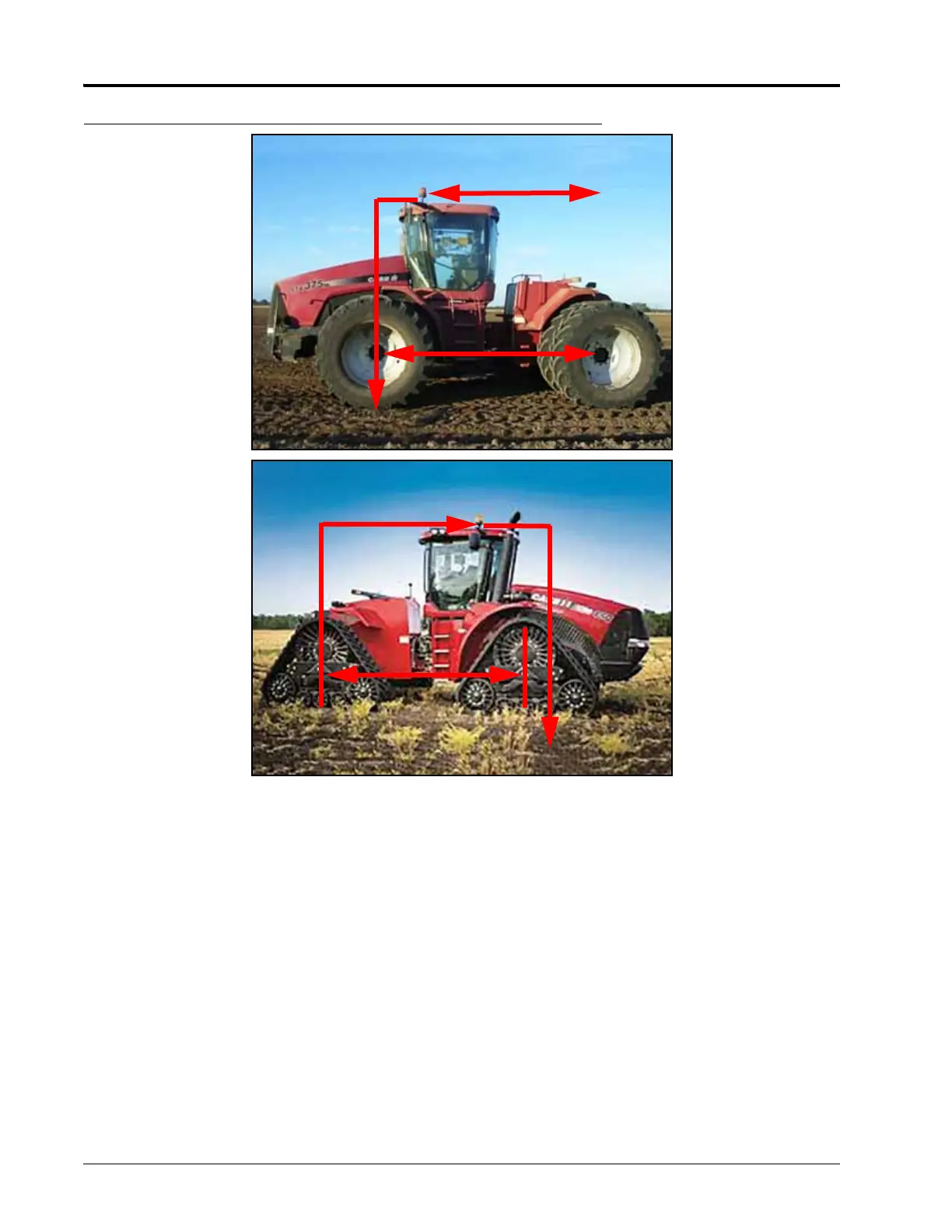

FIGURE 12.
Articulated Machine Measurements
NOTE:
For ar
ticulated machines, measur
e fr
om the center of
the front
tir
e to the center o
f the rear
tire on
both sides
of the machine. Add th
e values together a
nd divide t
h
e number b
y two to find the
average.
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
WHEEL BASE
MEASUREMENT
ANTENNA FORE/AFT
MEASUREMENT
ANTENNA
HEIGHT
MEASUREMENT
25
27
