CHAPTER 4
56 SmarTrax™ Calibration & Operation Manual

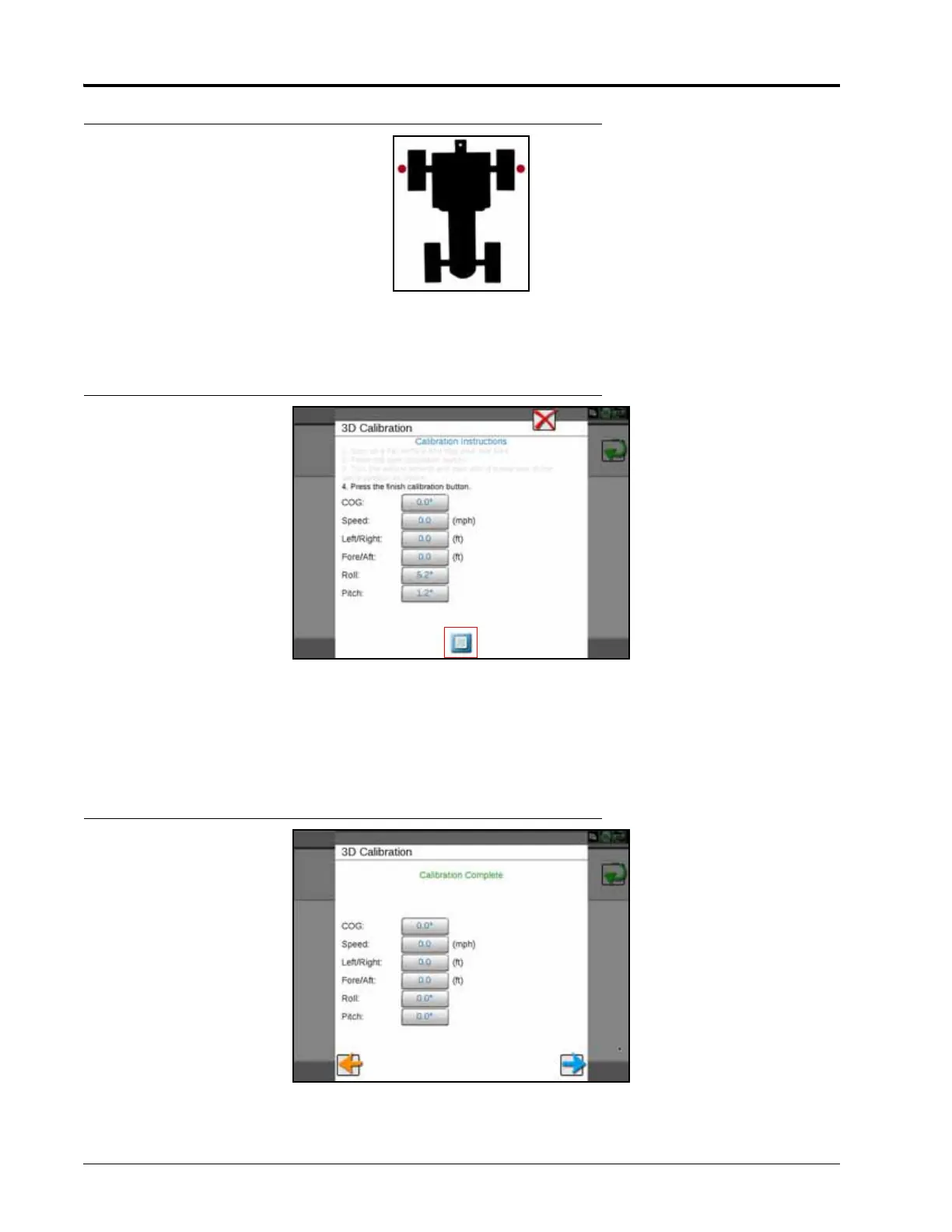

FIGURE 26. Machine Orientation After Tilt Calibration
6. Turn the machine around 180° and park with the machine facing the opposite direction and the rear axle in
between the flags or markers.
FIGURE 27. Finish Calibration
7. After the calibration is complete and the values on the screen have turned blue, select Finish Calibration.
NOTE: In order for the values to turn blue, the COG value must be less than 10°, the Left/Right must be less
than 3 ft, and the Fore/Aft must be less than 3 ft. The rear wheels will not necessarily end up aligned
exactly with the markers to get the Fore/Aft number to turn blue.
FIGURE 28. Calibration Complete
8. Select Next.
