RayChart 620 and 630
Chartplotter
Connections

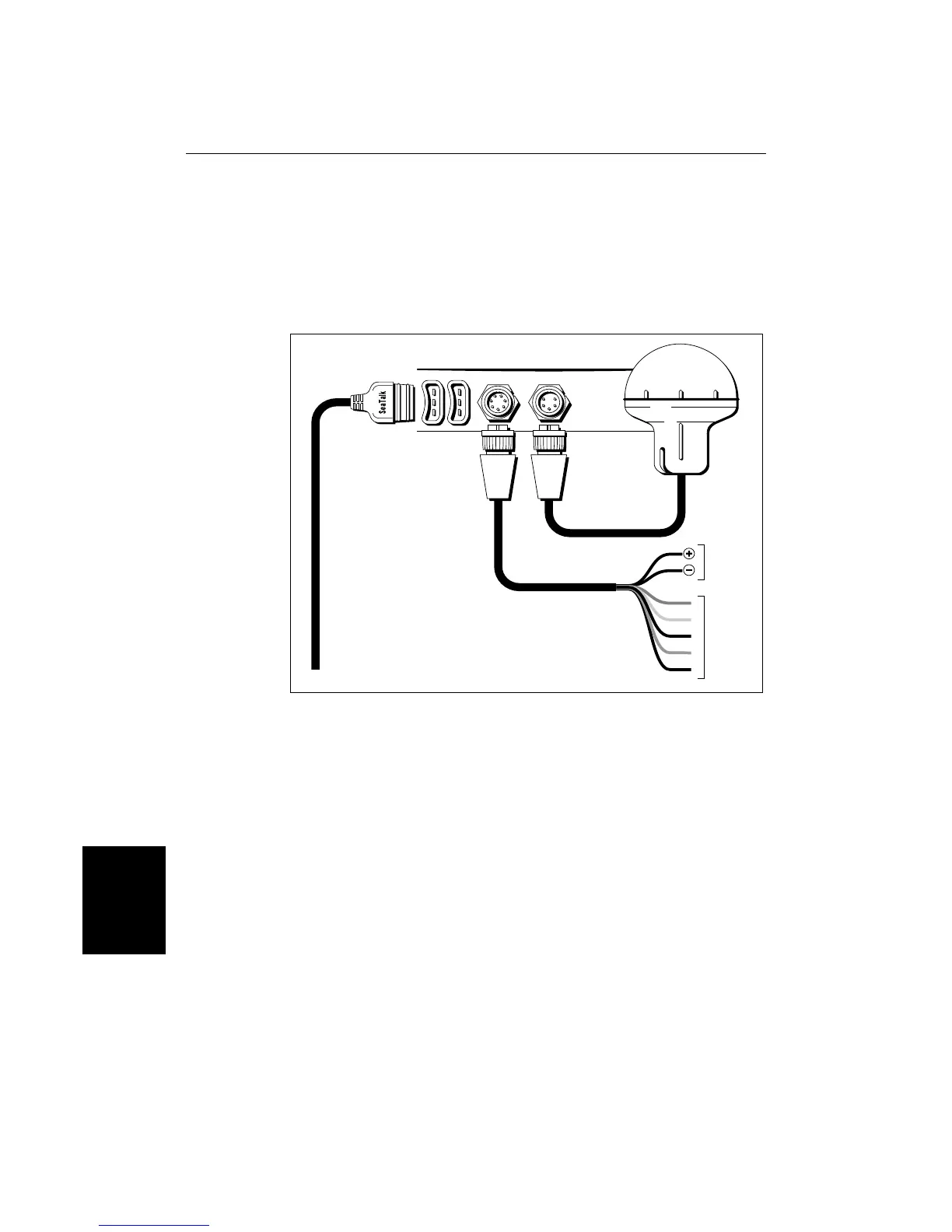

7.5 Chartplotter Connections
The chartplotter has four rear panel connectors, as follows:
1. SeaTalk: two 3-pin flat connectors
2. Power: 7-pin male connector
3. GPS SENSOR: 5-pin male connector
D3355-2
SeaTalk
Power
NMEA/
Printer
To SeaTalk
POWER
GPS SENSOR
POWER Connection
Use the cable supplied to connect the following at the rear POWER connector,
as shown above:
• Power
• NMEA In
• NMEA Out
• Printer
The pin functions are listed in the table below.
