REI OSCOR Blue User Manual

SET-UP & BASIC OPERATION
7
18. Directional Antenna * –Clip the included Vivaldi directional antenna to the antenna panel and
connect to the 0 – 8 GHz Auxiliary input on the back of the OSCOR unit for improved directivity
in the 1.5 GHz to 8 GHz range.

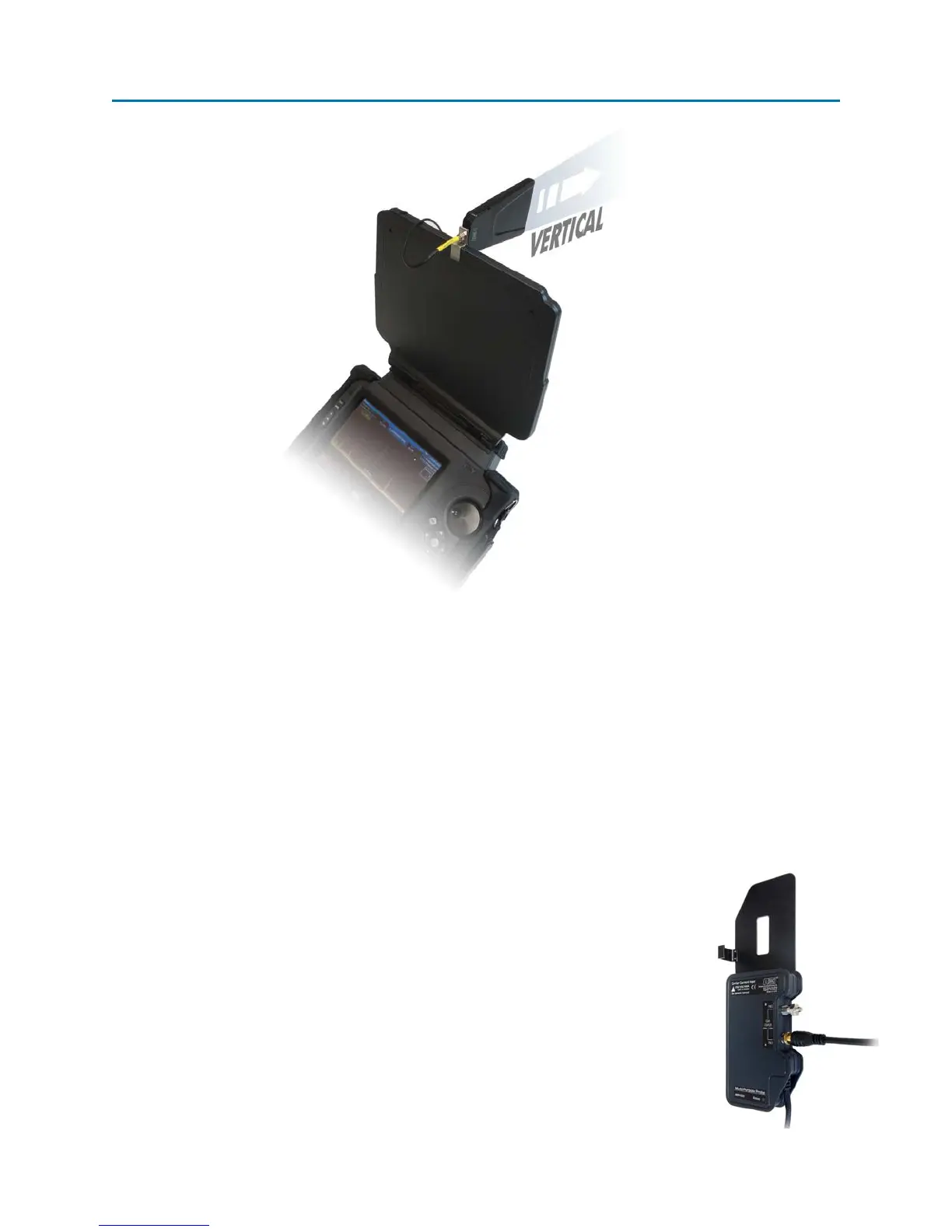

The above picture shows the antenna vertically polarized. Rotate the antenna in the clip to
allow for vertical or horizontal polarization.
* The Directional Antenna is not included in some OSCOR models/versions. If the unit
purchased did not include this antenna, it can be purchased by contacting REI or an Authorized
REI reseller.
19. Multi-purpose Probe (MPP) - The MPP is a small portable probe that
attaches to the auxiliary port of the OSCOR unit and extends its
functionality with the addition of different sensors/antennas to allow the
capture and analysis of suspicious signals: Coaxial Connectors, Carrier
Current Probe (CCP), VLF Antenna (Loop Antenna), Infrared (IR) sensor, and
a Visible Light (VL) sensor. (See page 84.)
