10A-9
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal at timing end Removal - Refitting
F4R
10A
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the crankshaft seal mating face,
-the cylinder block seal housing.
II - REFITTING OPERATION FOR PART
CONCERNED

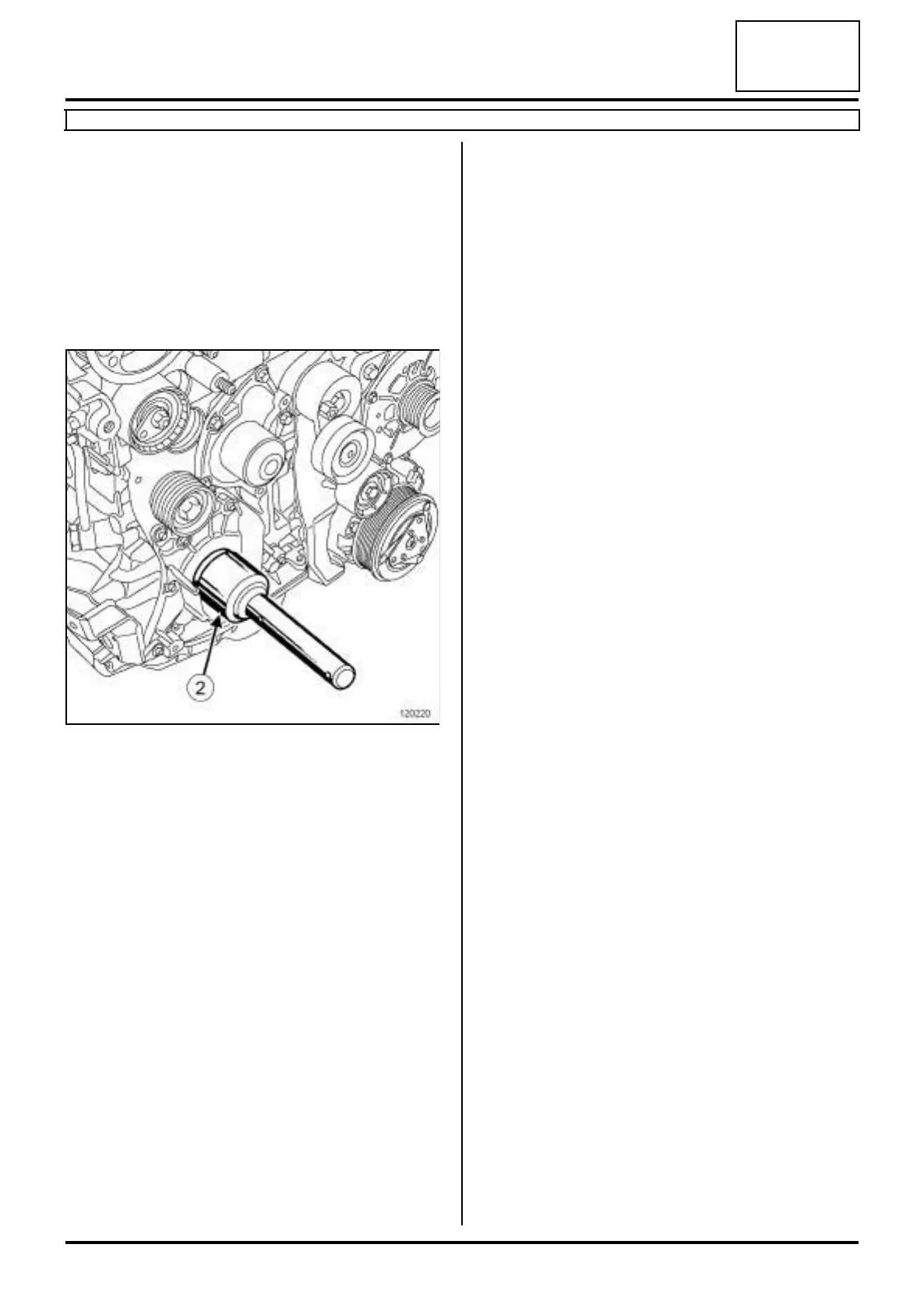

a Refit a new crankshaft seal at the timing end, using
the tool (Mot. 990-03) (2) .
III - FINAL OPERATION
a Refit:
-the crankshaft timing sprocket,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
- the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the radiator mounting cross member (see Radiator
support cross member: Removal - Refitting)
(31A, Front axle components),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray,
- the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the battery (see Battery: Removal - Refitting)
(80A, Battery),
- the engine cover.
120220
