Renault F4R - Starting - Charging; Alternator: Removal - Refitting

16A-1
STARTING - CHARGING
Alternator: Removal - Refitting
K4M
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove the front engine cover.
a Remove:
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
a Remove:
- the engine undertray bolts,
- the engine undertray,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) .

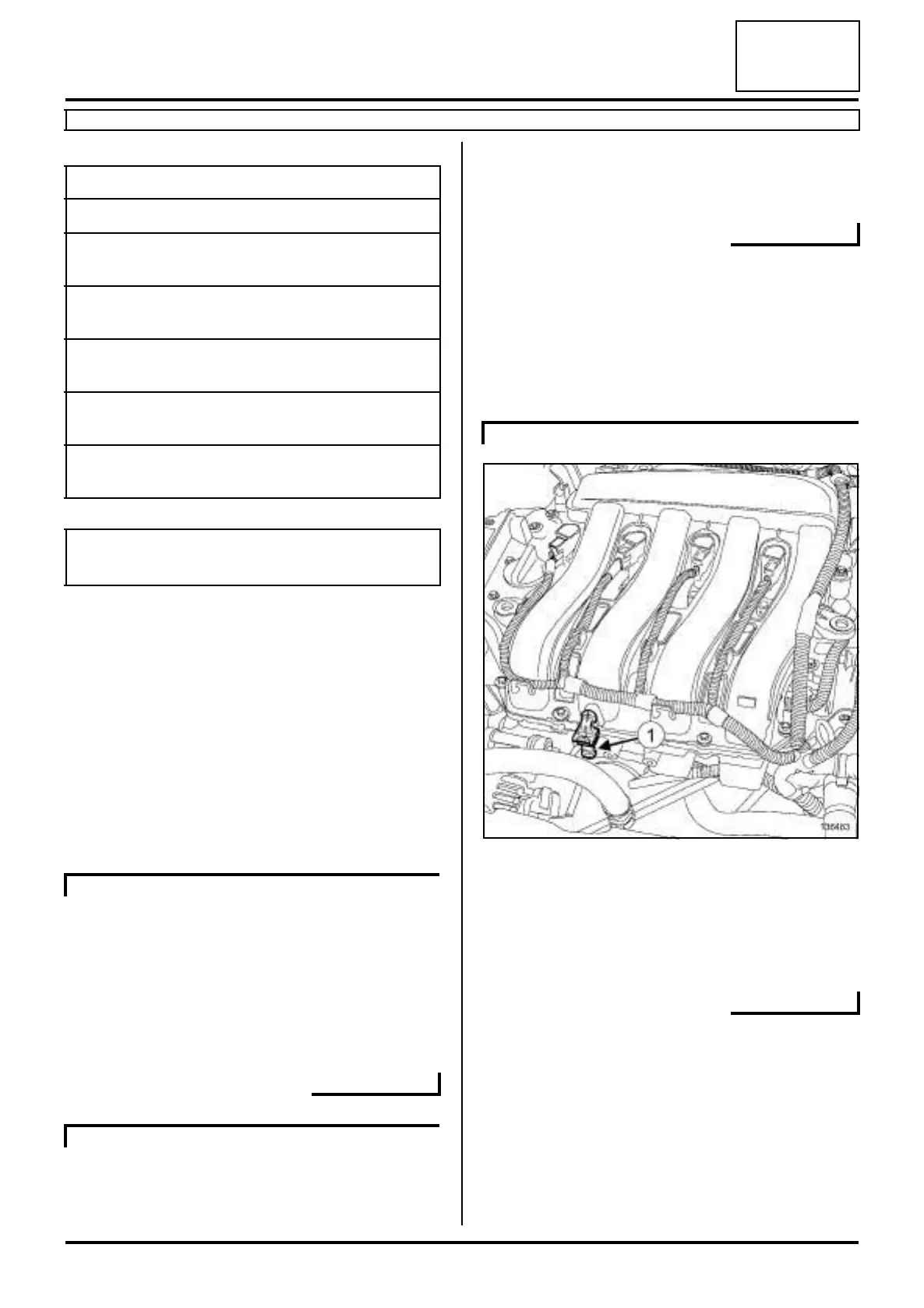

a Disconnect the connector (1) from the air temperatu-
re sensor on the intake manifold.
a Remove the oil filter (see 10A, Engine and cylinder
block assembly, Oil filter: Removal - Refitting,
page 10A-48) .
Tightening torquesm
alternator bolts 25 N.m
alternator strut bolt on
the alternator
25 N.m
alternator strut nut on
the cylinder block
25 N.m
alternator strut bolt on
the alternator
25 N.m
alternator strut bolt on
the cylinder block
25 N.m
nut for the positive ter-
minal of the alternator
21 N.m
IMPORTANT
Wear protective gloves during the operation.
K4M, and 858 or 866
K4M, and 848
K4M, and 848
