Renault F4R - High Pressure Pump

13B-32
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 832
13B
a Fit a suitable blanking plug on the opening of:
-the diesel injector fuel return rail union,
-the high pressure pump.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

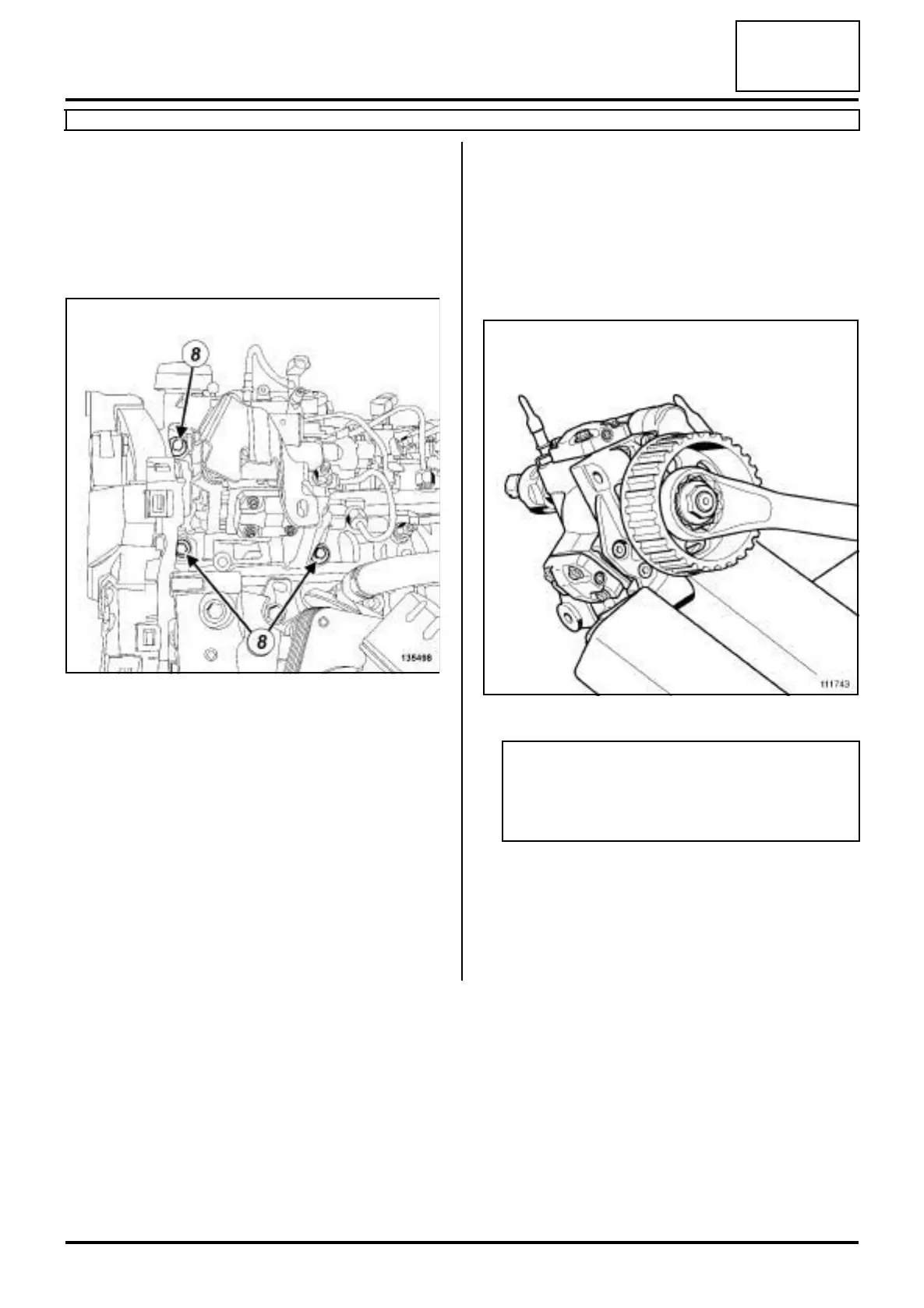

a Remove:
-the high pressure pump bolts (8) ,
-the high pressure pump.
REFITTING
I - REFITTING PREPARATION OPERATION
If replacing the high pressure pump
a - Remove the high pressure pump pulley
a
a Hold the high pressure pump in a vice with jaws, by
the lower mounting on the pulley side.
a Immobilise the high pressure pump pulley using a 32
mm offset spanner.
a Remove the nut from the high-pressure pump pul-
ley.
135498
111743
Note:
If the high pressure pump is replaced, retain the
high pressure pump pulley and refit it to the new
high pressure pump.
