13B-31
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 832
13B
-the turbocharger air outlet pipe (see 12B, Turbo-
charging, Intercooler air inlet pipe: Removal -
Refitting, page 12B-41) ,
-the high pressure pipe between the high pressure
pump and the injector rail (see 13B, Diesel injec-
tion, High-pressure pipe between the pump and
rail: Removal - Refitting, page 13B-71) .
a Disconnect the fuel supply pipe from the high pres-
sure pump (4) .
a Fit a suitable blanking plug on the opening of:
-the fuel supply pipe,
-the high pressure pump.
a Remove:
- the high pressure pump protector nut (5) ,
- the high pressure pump protector bolt (6) ,
- the high pressure pump protector.
a Disconnect the diesel injector fuel return rail union
(7) from the high pressure pump.

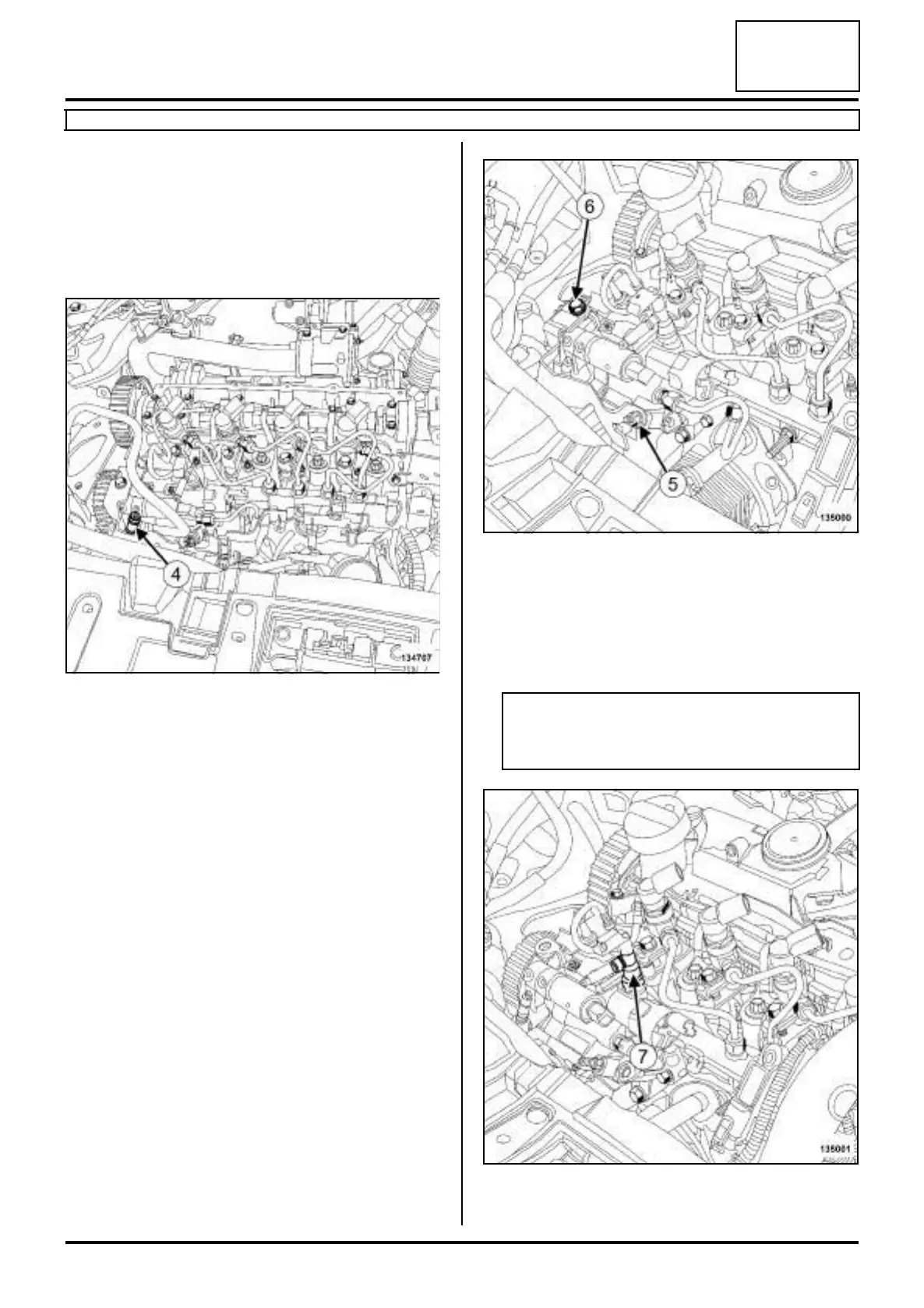

134707
135000
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
135001
