Renault F4R - Intercooler Air Outlet Pipe: Removal - Refitting

12B-56
TURBOCHARGING
Intercooler air outlet pipe: Removal - Refitting
K9K
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

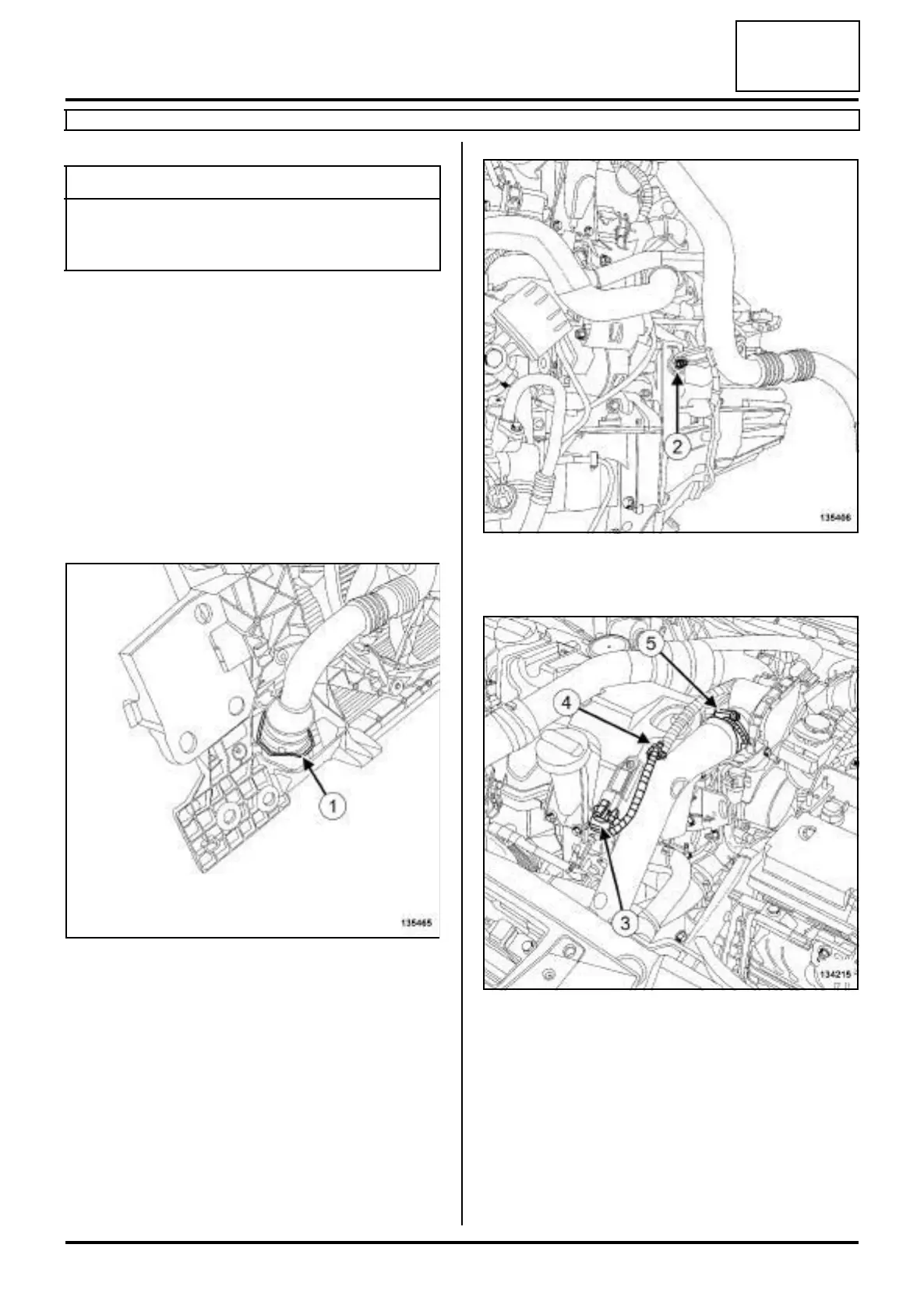

a Pull the intercooler clip (1) from the intercooler air
outlet pipe.
a Remove the nut (2) from the bracket of the intercoo-
ler air outlet pipe.
a Disconnect the turbocharger pressure sensor con-
nector (3) .
a Unclip the turbocharging pressure sensor wiring (4)
from the intercooler air outlet pipe.
a Loosen the damper valve clip (5) from the intercoo-
ler air outlet pipe.
a Disconnect the intercooler air outlet pipe from the
damper valve.
a Remove the intercooler air outlet pipe.
Tightening torquesm
intercooler air outlet
pipe clip on the damper
valve
5.5 N.m
135465
135406
134215
