Renault F4R - Exhaust Gas Recirculation Rigid Pipe: Removal - Refitting

14A-30
ANTIPOLLUTION
Exhaust gas recirculation rigid pipe: Removal - Refitting
K9K
14A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) ,
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) ,
-the brake fluid reservoir from the scoop under the
scuttle panel grille,
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting) .
a Remove:
-the engine cover,
- the engine undertray bolts,
- the engine undertray,
- the catalytic converter (see 19B, Exhaust, Cataly-
tic converter: Removal - Refitting, page 19B-17)
.
a Remove:

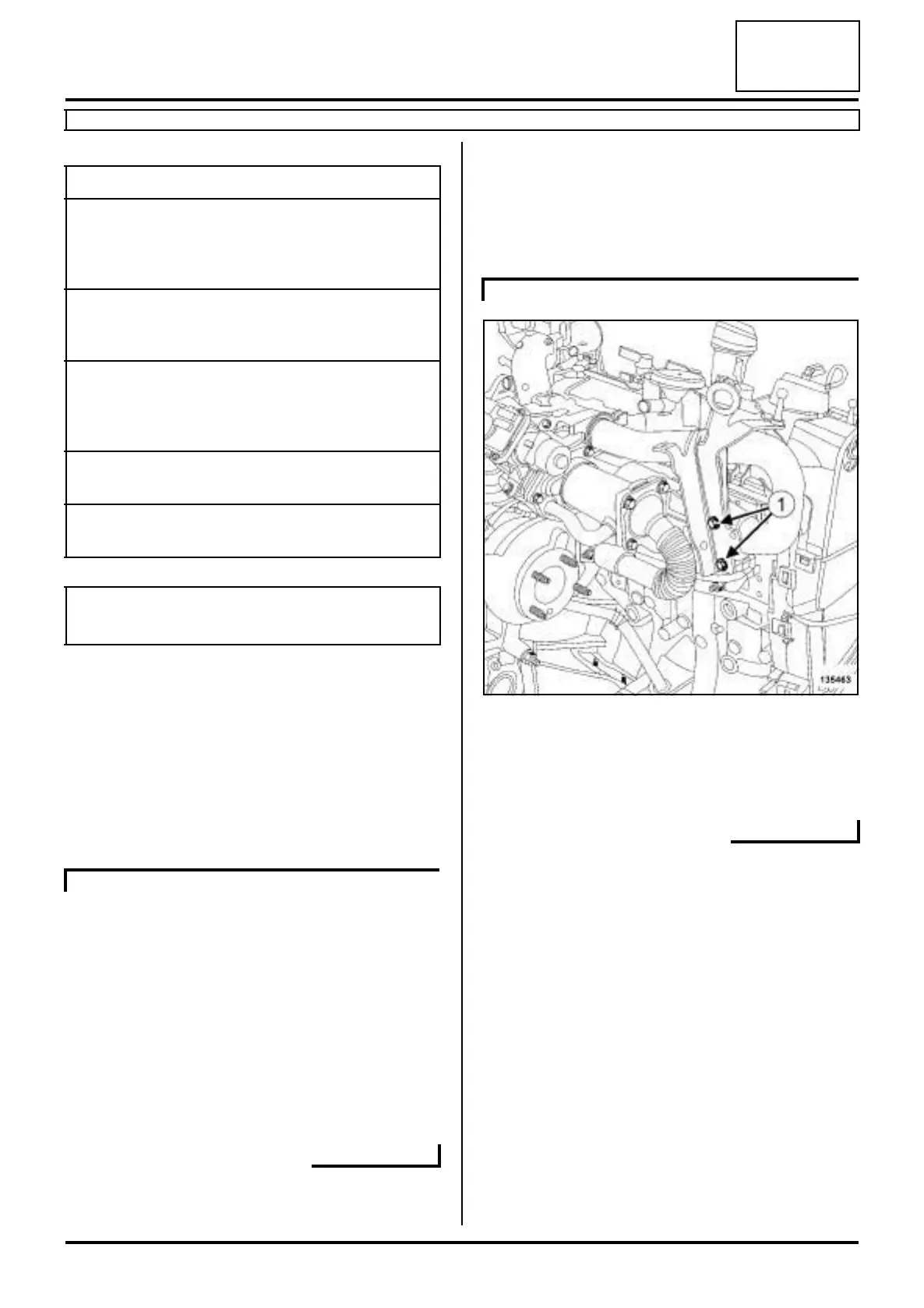

- the bolts (1) from the lifting eye at the timing end,
- the lifting eye on the timing end.
Tightening torquesm
bolts of the exhaust gas
recirculation rigid pipe
bracket on the cylinder
head
25 N.m
bolts of the exhaust gas
recirculation rigid pipe
on the exhaust manifold
36 N.m
bolts of the exhaust gas
recirculation rigid pipe
on the exhaust gas
recirculation assembly
12 N.m
exhaust gas recircula-
tion pipe bolts
36 N.m
exhaust gas recircula-
tion pipe clip
5 N.m
IMPORTANT
Wear protective gloves during the operation.
J95
K9K, and 832
135463
