Renault F4R - Lower Engine Tie-Bar: Removal - Refitting

19D-33
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
F4R
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

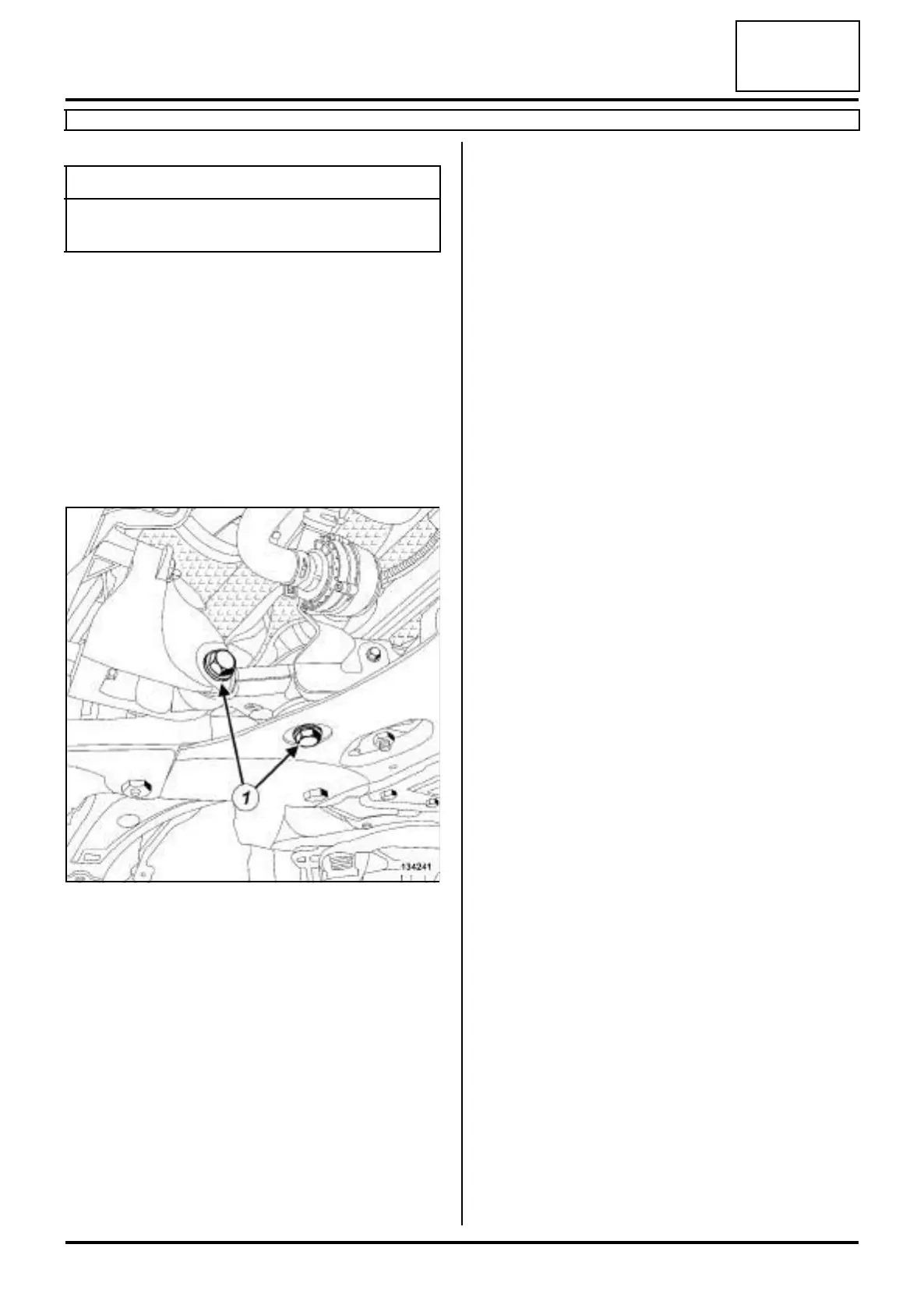

-the bolts (1) from the lower engine tie-bar.
-the lower engine tie-bar.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the lower engine tie-bar,
-the lower engine tie-bar bolts.
a Torque tighten the lower engine tie-bar bolts (180
N.m).
II - FINAL OPERATION
a Refit the engine undertray.
Tightening torquesm
lower engine tie-bar
bolts
180 N.m
134241
