Crankshaft position sensor: Removal - Refitting
K9K
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

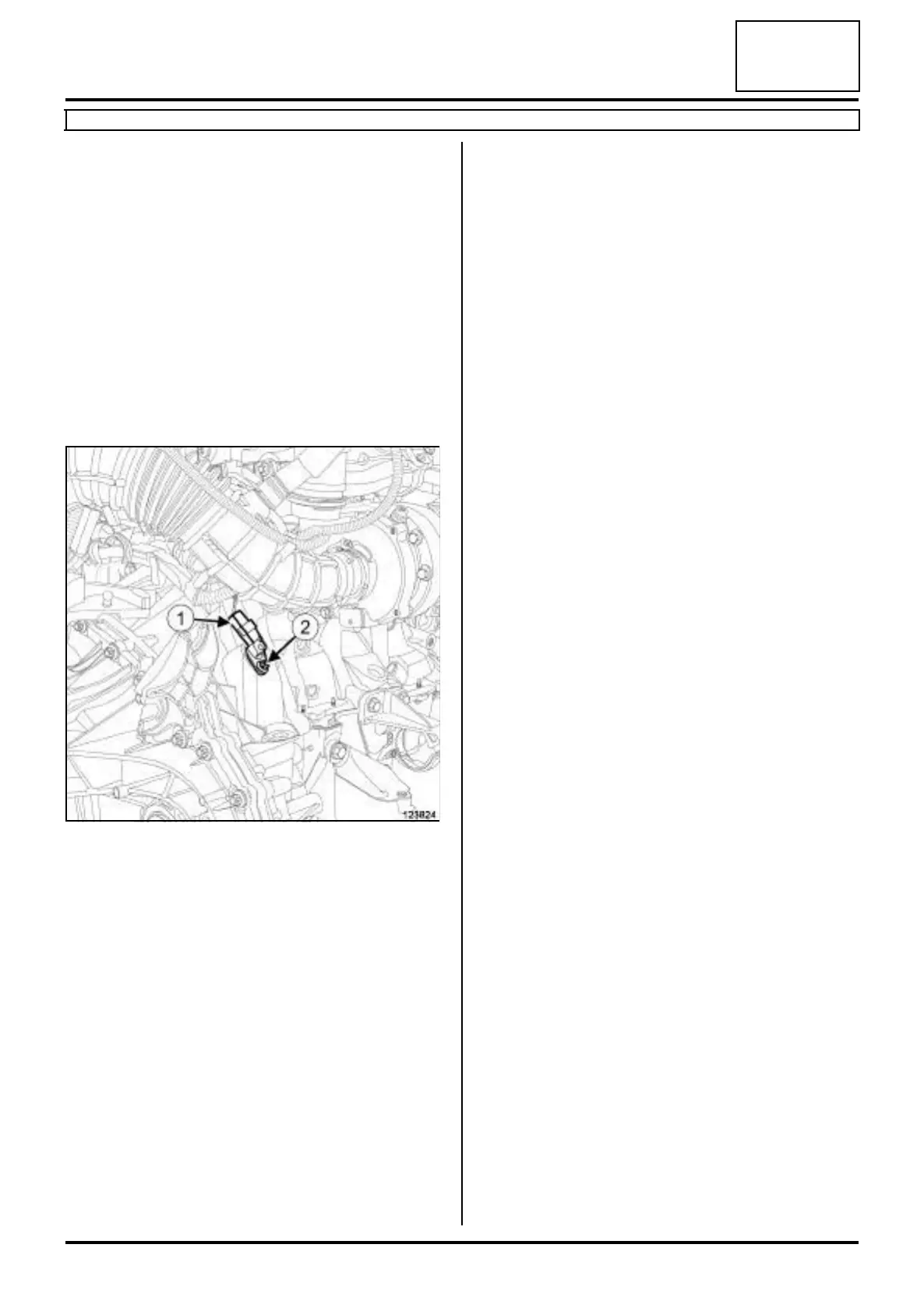

a Disconnect the crankshaft position sensor connector
(1) .
a Remove:
-the crankshaft position sensor bolt (2) ,
-the crankshaft position sensor.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the crankshaft position sensor,
-the crankshaft position sensor bolt.
a Connect the crankshaft position sensor connector.
II - FINAL OPERATION
a Refit the engine undertray.
