13B-70
DIESEL INJECTION
Injector rail protector: Removal - Refitting
F9Q
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the front engine cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

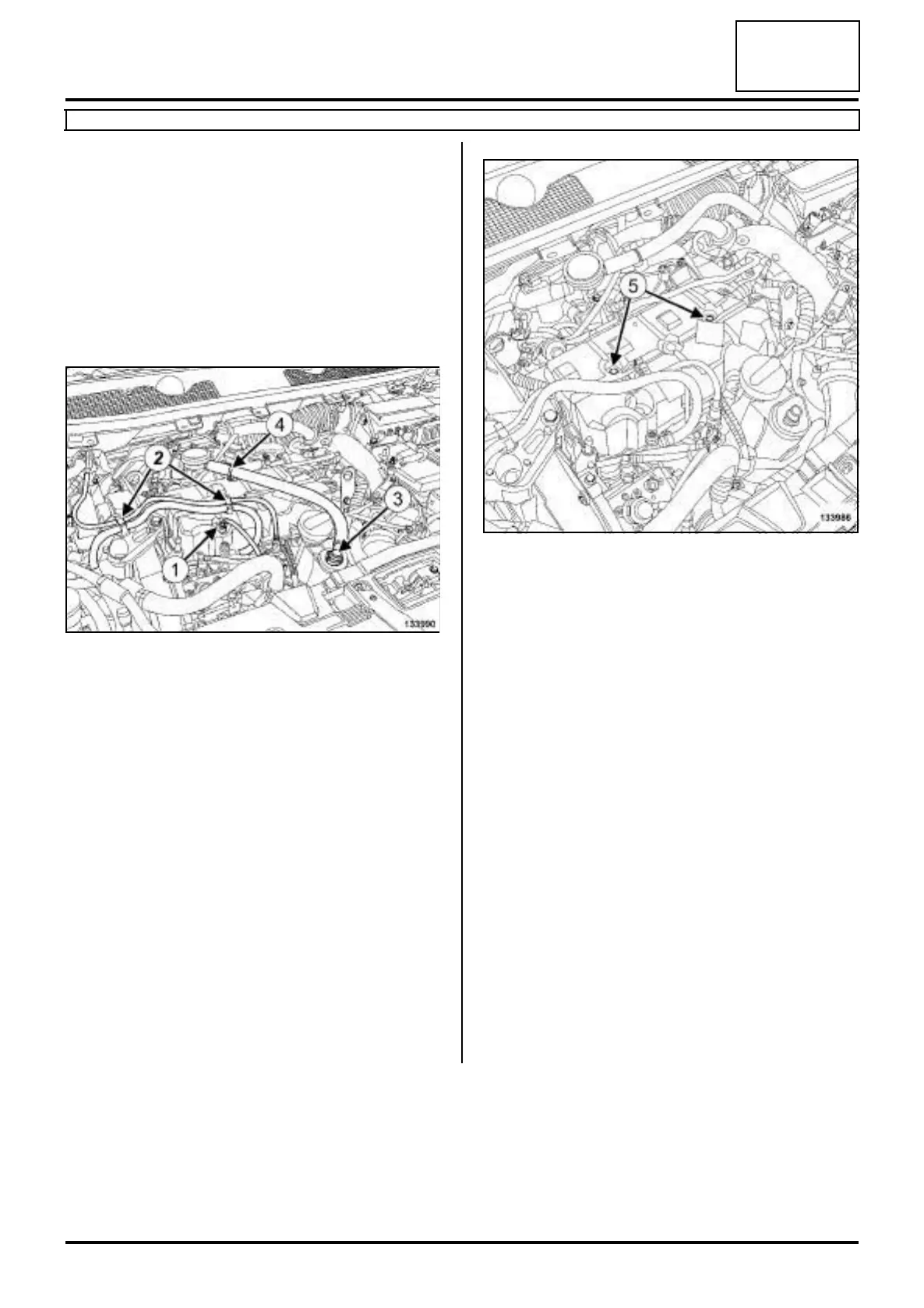

a Disconnect the injector rail pressure sensor connec-
tor (1) .
a Unclip the fuel pipes (2) .
a Disconnect the hose from the oil separator (3) .
a Unclip the oil separator hose (4) from the injector rail
protector.
a Remove:
- the bolts (5) from the injector rail protector,
- the injector rail protector.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the injector rail protector.
a Clip:
- the oil separator hose on the injector rail protector,
- the fuel pipes.
a Connect:
- the oil separator hose,
- the injector rail pressure sensor connector.
II - FINAL OPERATION
a Refit the engine cover.
a Connect the battery (see Battery : Removal - Refit-
ting) (80A, Battery).
133990
133986
