11A-16
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K9K
11A

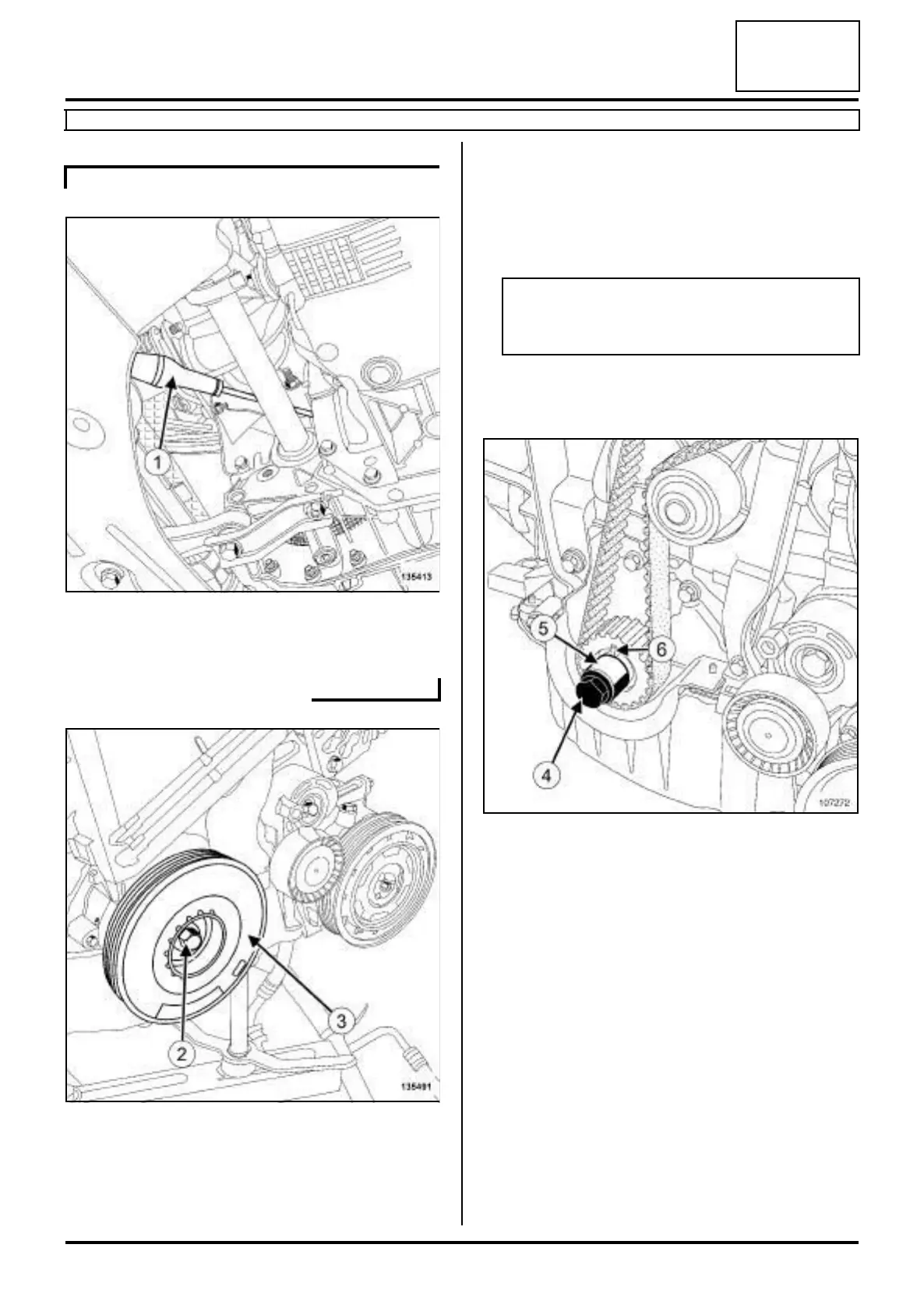

a Lock the flywheel using a screwdriver (1) .
a Remove:
-the crankshaft accessories pulley bolt (2) ,
-the crankshaft accessories pulley (3) .
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Crankshaft acces-
sories pulley bolts (10,03,03,10).
a If reusing the crankshaft accessories pulley, clean
the crankshaft accessories pulley V-grooves with a
brush to eliminate any deposits.
a Refit the old crankshaft accessories pulley bolt (4)
with a spacer (5) .
a Turn the crankshaft clockwise (timing end) using the
old bolt of the crankshaft accessories pulley, until
the collet of the crankshaft timing pinion (6) is almost
vertical and facing upwards.
K9K, and 830 or 834
135413
135491
WARNING
Only use brushes with plastic or non-corrosive
metal (brass) bristles.
107272
