Renault F4R - Spark Plugs: Removal - Refitting

17A-5
IGNITION
Spark plugs: Removal - Refitting
K4M
17A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the coils (see 17A, Ignition, Coils Removal - Re-
fitting, page 17A-1) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

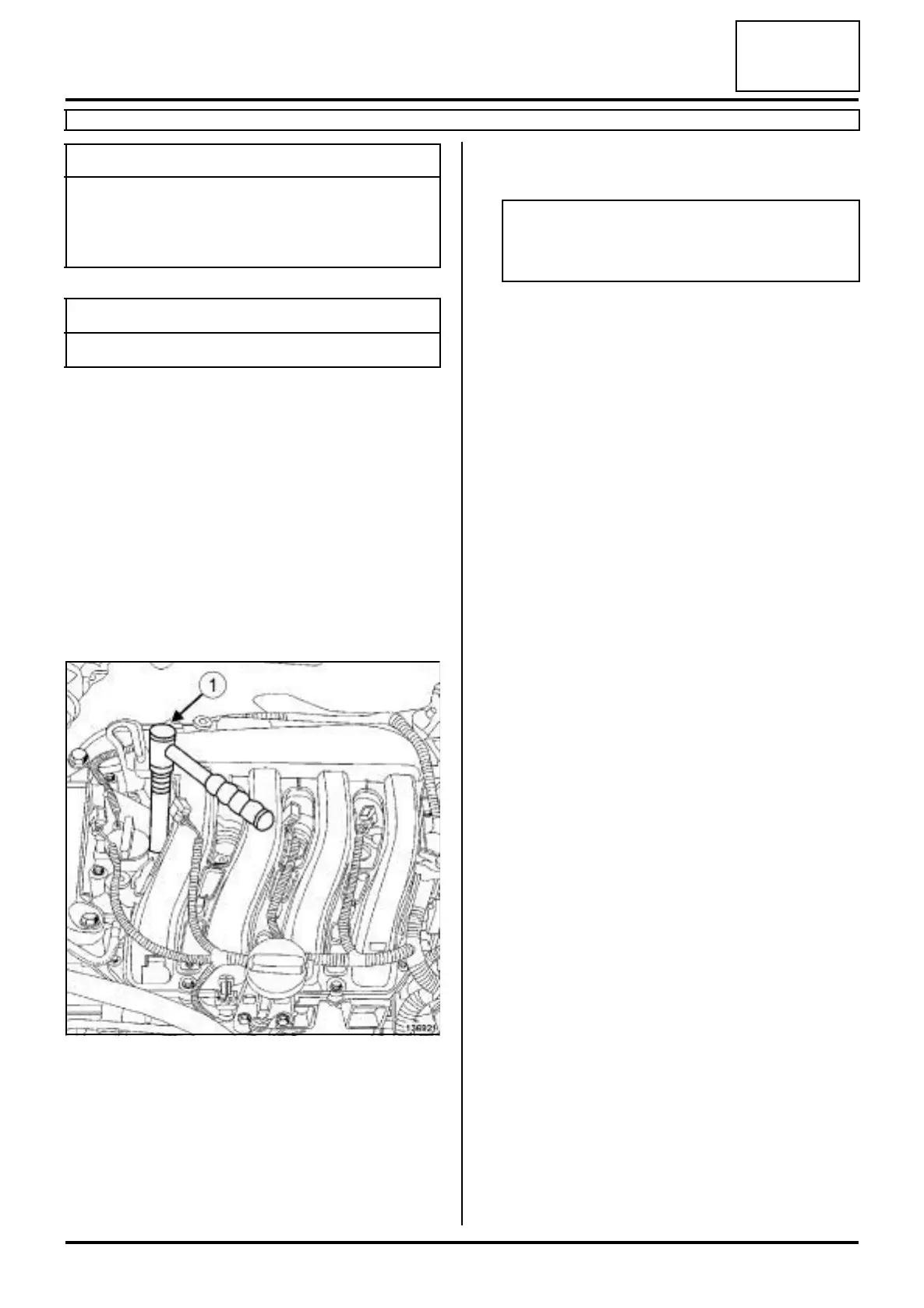

a Remove the spark plugs using the (Ele. 1382) (1) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the plugs.
a Torque tighten the spark plugs (25 N.m) using the
tool (Ele. 1382).
II - FINAL OPERATION
a Refit:
-the coils (see 17A, Ignition, Coils Removal - Re-
fitting, page 17A-1) ,
- the engine cover.
Essential special tooling
Ele. 1382 Spark plug spanner toolkit 16
& 21 mm torque 1.75 & 28
Nm + square adapter 9-9.52
for spanner Ele. 1086
Tightening torquesm
spark plugs 25 N.m
136921
Note:
Use the limited torque wrench of (Ele. 1382) with
the grey sleeve.
