Renault F4R - Silencer: Removal - Refitting

19B-40
EXHAUST
Silencer: Removal - Refitting
F4R
19B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

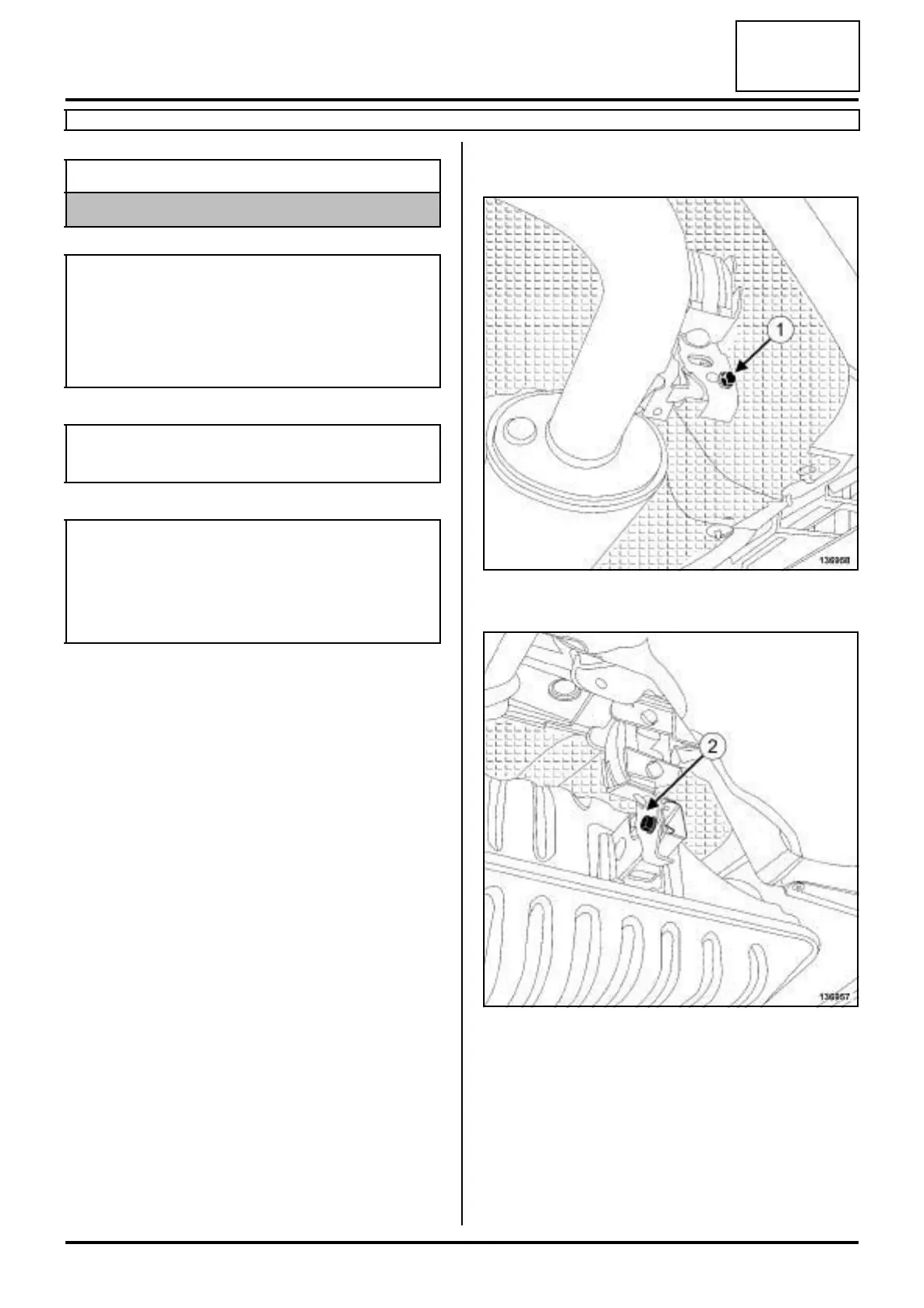

a Remove the expansion chamber bolt (1) .
a Fit a component jack underneath the exhaust silen-
cer.
a Remove the exhaust silencer bolt (2) .
a Cut the exhaust pipe (see 19B, Exhaust, Exhaust:
Precautions for repair, page 19B-12) in the desi-
gnated area to be cut (see 19B, Exhaust, Exhaust:
Parts and consumables for the repair work, page
19B-1) .
a Remove the exhaust silencer.
Essential equipment
component jack
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 19B, Exhaust, Exhaust: Precautions
for repair, page 19B-12) .
IMPORTANT
Wear heat protective gloves during the operation.
WARNING
To prevent the surrounding components from ove-
rheating, do not damage (tear, pierce, bend, etc.) a
heat shield.
Any damaged heat shields must be replaced.
136958
136957
