Renault F4R - Turbocharger: Removal - Refitting

12B-8
TURBOCHARGING
Turbocharger: Removal - Refitting
F9Q
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
-the exhaust gas recirculation rigid pipes (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) ,
-the exhaust gas recirculation assembly (see 14A,
Antipollution, Exhaust gas recirculation as-
sembly: Removal - Refitting, page 14A-18) ,
-the exhaust gases duct at the turbocharger outlet
(see 12B, Turbocharging, Turbocharger outlet
exhaust gas duct: Removal - Refitting, page
12B-49) ,
-the turbocharger oil pipe (see 12B, Turbochar-
ging, Turbocharger oil pipe: Removal - Refit-
ting, page 12B-22) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

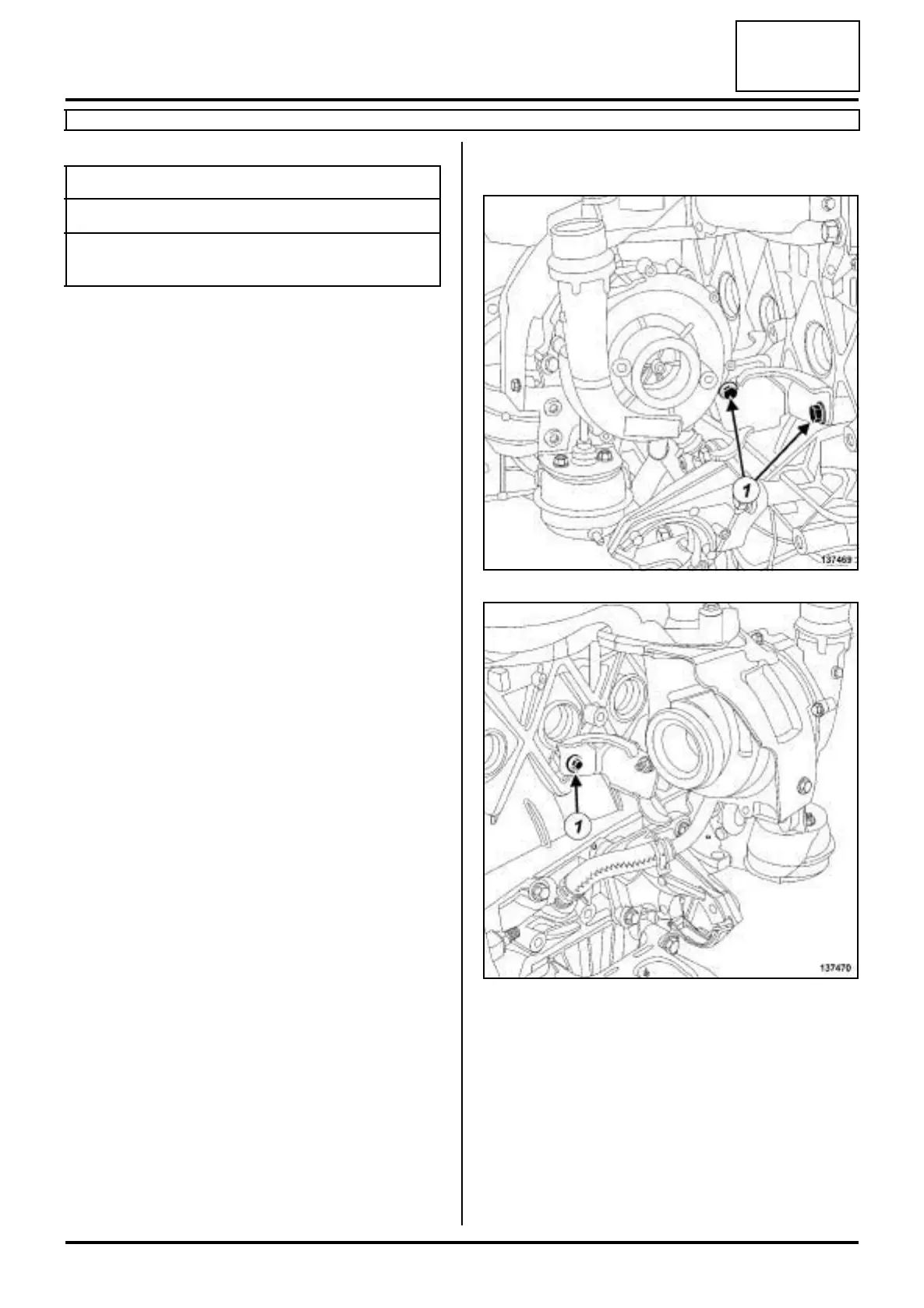

- the bolts (1) from the turbocharger strut,
- the turbocharger strut.
Tightening torquesm
turbocharger nuts 25 Nm
turbocharger bracket
bolts
25 N.m
137469
137470
