12B-9
TURBOCHARGING
Turbocharger: Removal - Refitting
F9Q
12B

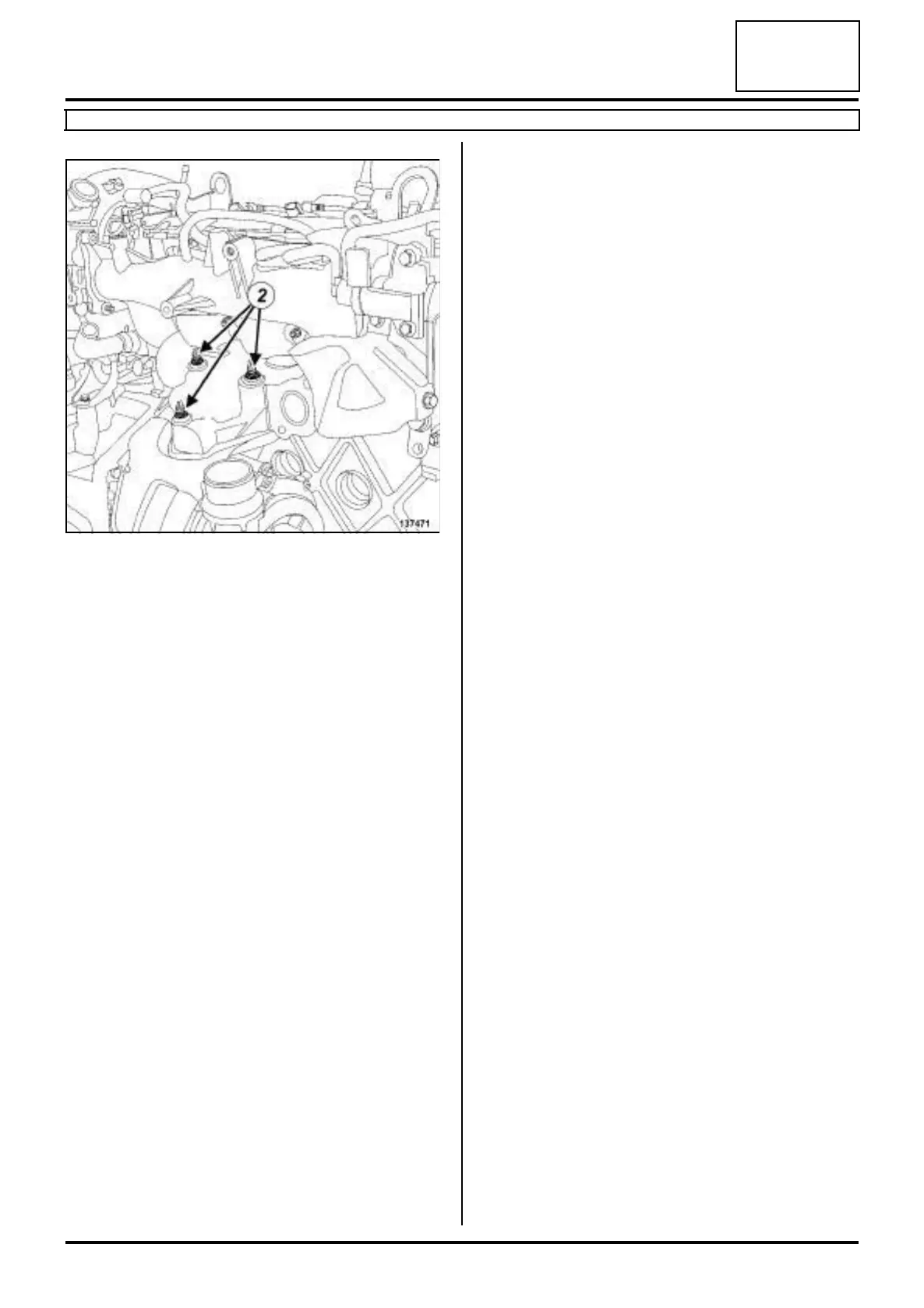

a Remove:
-the turbocharger nuts (2) ,
-the turbocharger,
-the turbocharger heat shield.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the turbocharger heat shield.
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease the joint
faces:
-on the turbocharger,
-of the exhaust manifold.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new turbocharger heat shield,
-the turbocharger,
-the turbocharger strut.
a Torque tighten the turbocharger nuts (25 Nm).
a Torque tighten the turbocharger bracket bolts (25
N.m).
III - FINAL OPERATION
a Refit:
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the turbocharger oil pipe (see 12B, Turbochar-
ging, Turbocharger oil pipe: Removal - Refit-
ting, page 12B-22) ,
- the exhaust gases duct at the turbocharger outlet
(see 12B, Turbocharging, Turbocharger outlet
exhaust gas duct: Removal - Refitting, page
12B-49) ,
- the exhaust gas recirculation assembly (see 14A,
Antipollution, Exhaust gas recirculation as-
sembly: Removal - Refitting, page 14A-18) ,
- the exhaust gas recirculation rigid pipes (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) ,
- the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
- the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
- the battery (see Battery : Removal - Refitting)
(80A, Battery),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the engine undertray,
- the engine cover.
137471
